Vibratory ball mills deliver impact-dominated comminution for hard, brittle, and air-sensitive battery materials — reaching analytical fineness or true nanoscale particle sizes through high-frequency, small-amplitude oscillation rather than the rolling and shearing motion of planetary mills. The grinding jar is driven through linear or figure-eight paths at roughly 15-30 Hz, accelerating media against the jar walls so that impact, not friction, governs the size-reduction kinetics. This makes the format well suited to mechanochemical synthesis of solid electrolytes, alloying of conversion-type anodes, and pulverization of catalyst supports and ceramic precursors.
Format families
-

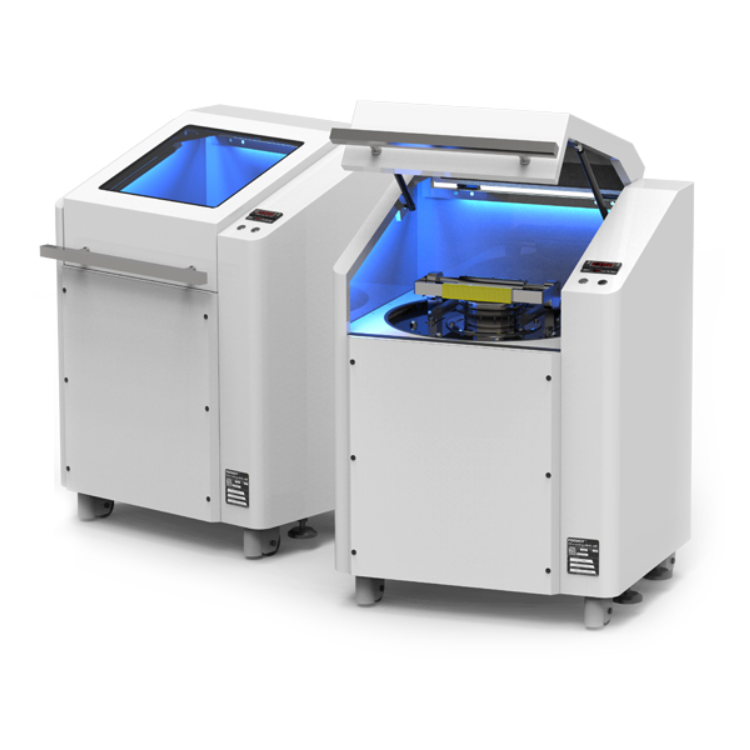

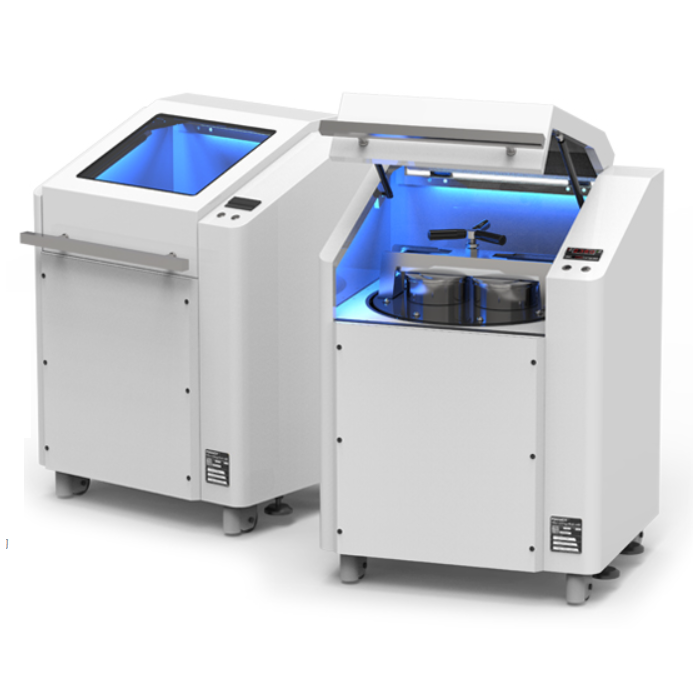

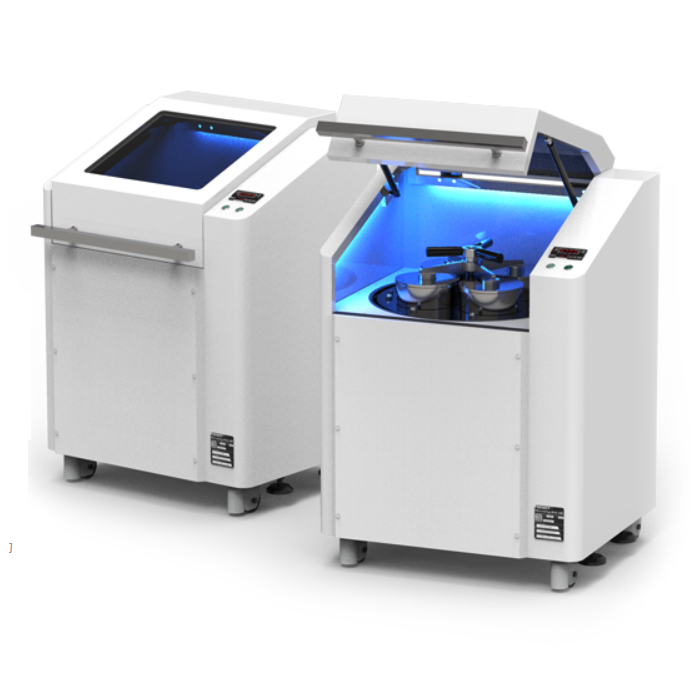

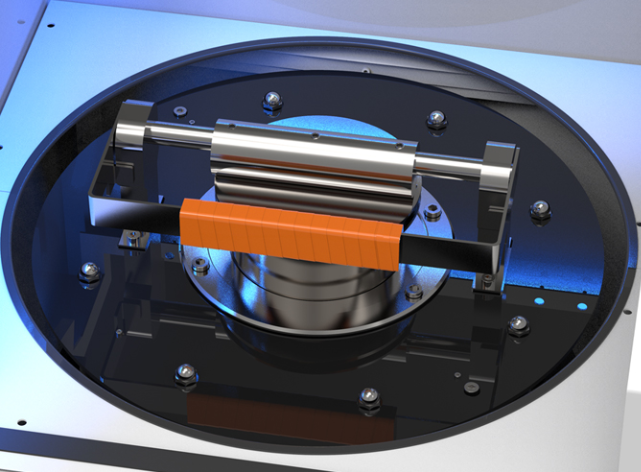

Disk / cup mills (shatterbox style): a puck-and-ring set inside a heavy reinforced grinding jar, driven by horizontal oscillations to pulverize hard or fibrous solids to analytical fineness in short cycles. Typical use: rapid sample preparation for XRD, XRF, ICP, and other bulk-analysis workflows.
-

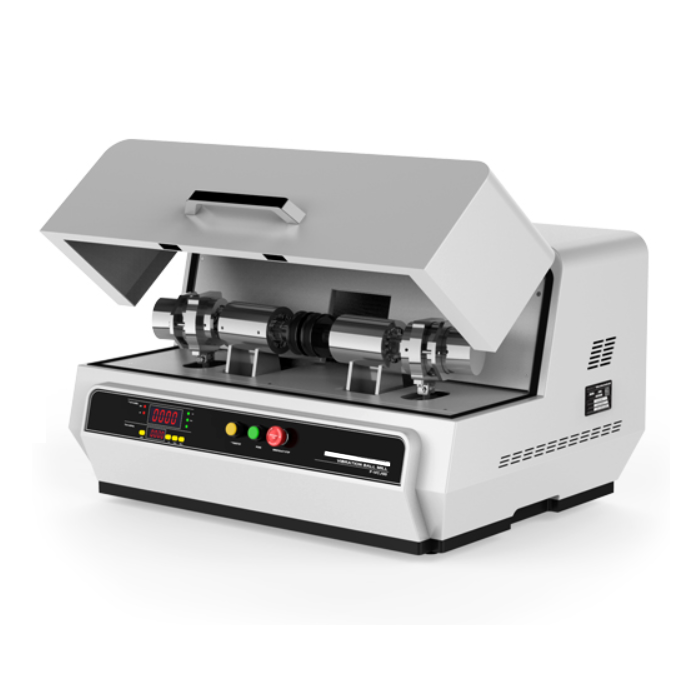

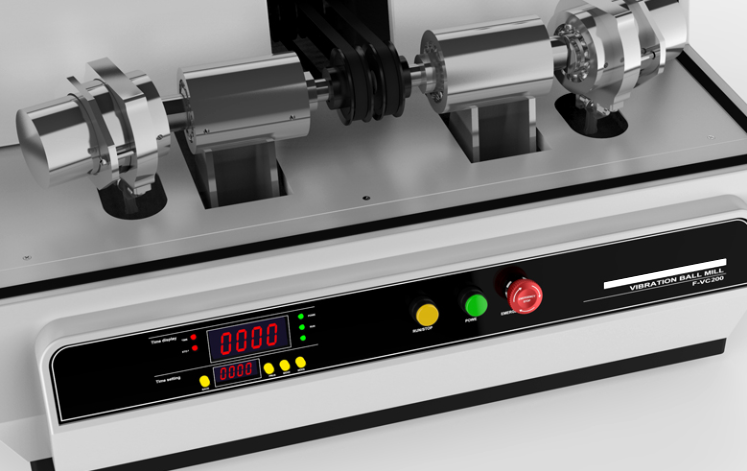

High-energy shaker / mixer mills: dual-jar oscillating platforms designed for sustained mechanical activation. Common in solid-state research for sulfide and oxide electrolyte synthesis, conversion-anode composites, and reactive milling of pre-cursor blends.
-

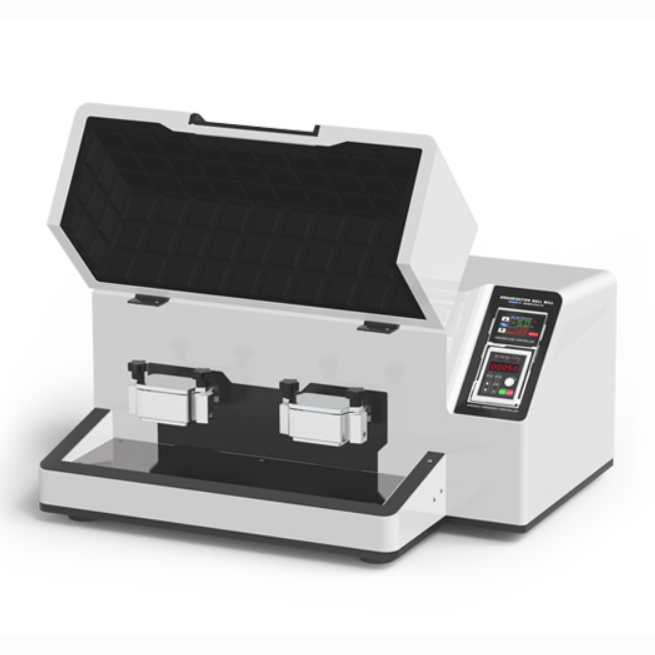

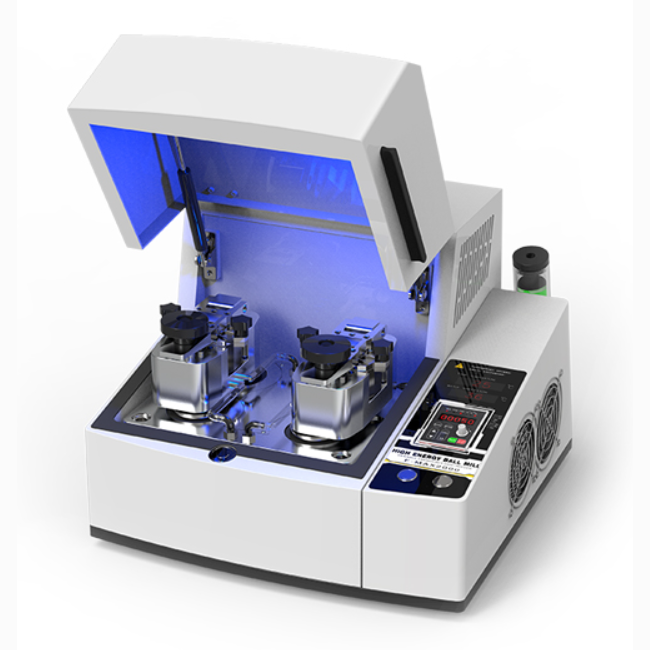

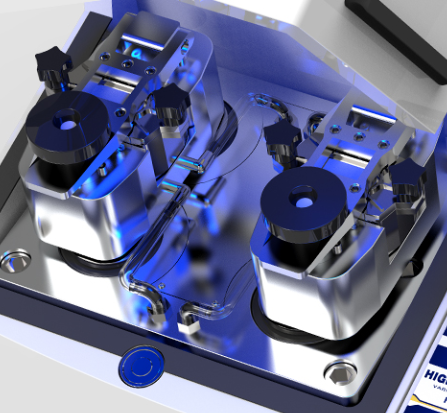

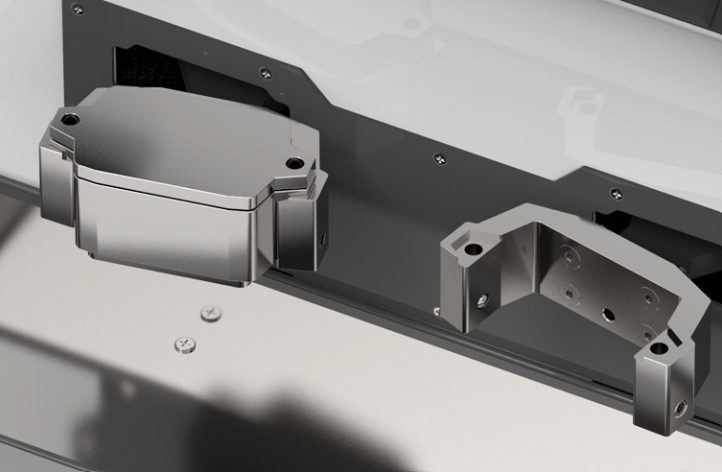

Nano high-energy and ultra-high-energy mills: elevated frequency platforms that push primary particle sizes from the micrometer range down to approximately 10-100 nm, supporting nanostructured cathode, anode, and solid-electrolyte work.
-
Cryogenic high-energy mills: integrated cooling that suppresses cold-welding and thermal degradation in ductile, polymeric, or thermally sensitive samples — relevant for sulfur-carbon composites, polymer electrolytes, and biological matrices.
-

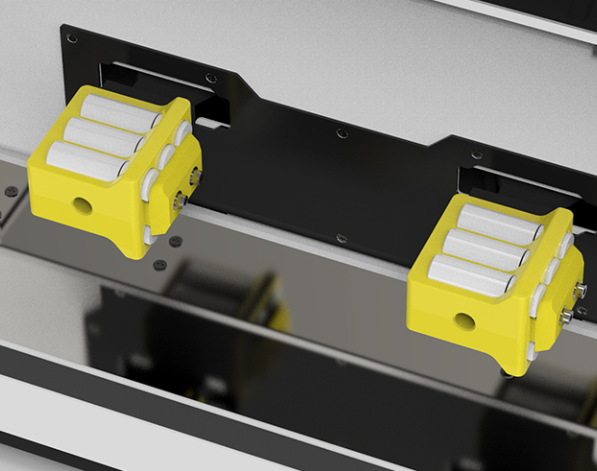

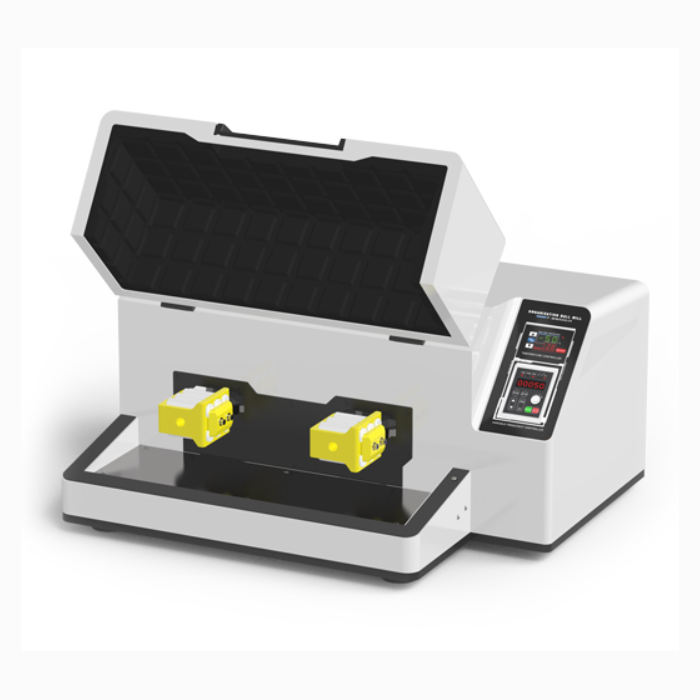

High-throughput multi-vial platforms: arrays of small jars (for example 12 x 10 mL) for parallel formulation screening of electrode slurries, dopant series, and solid-electrolyte compositions.
-

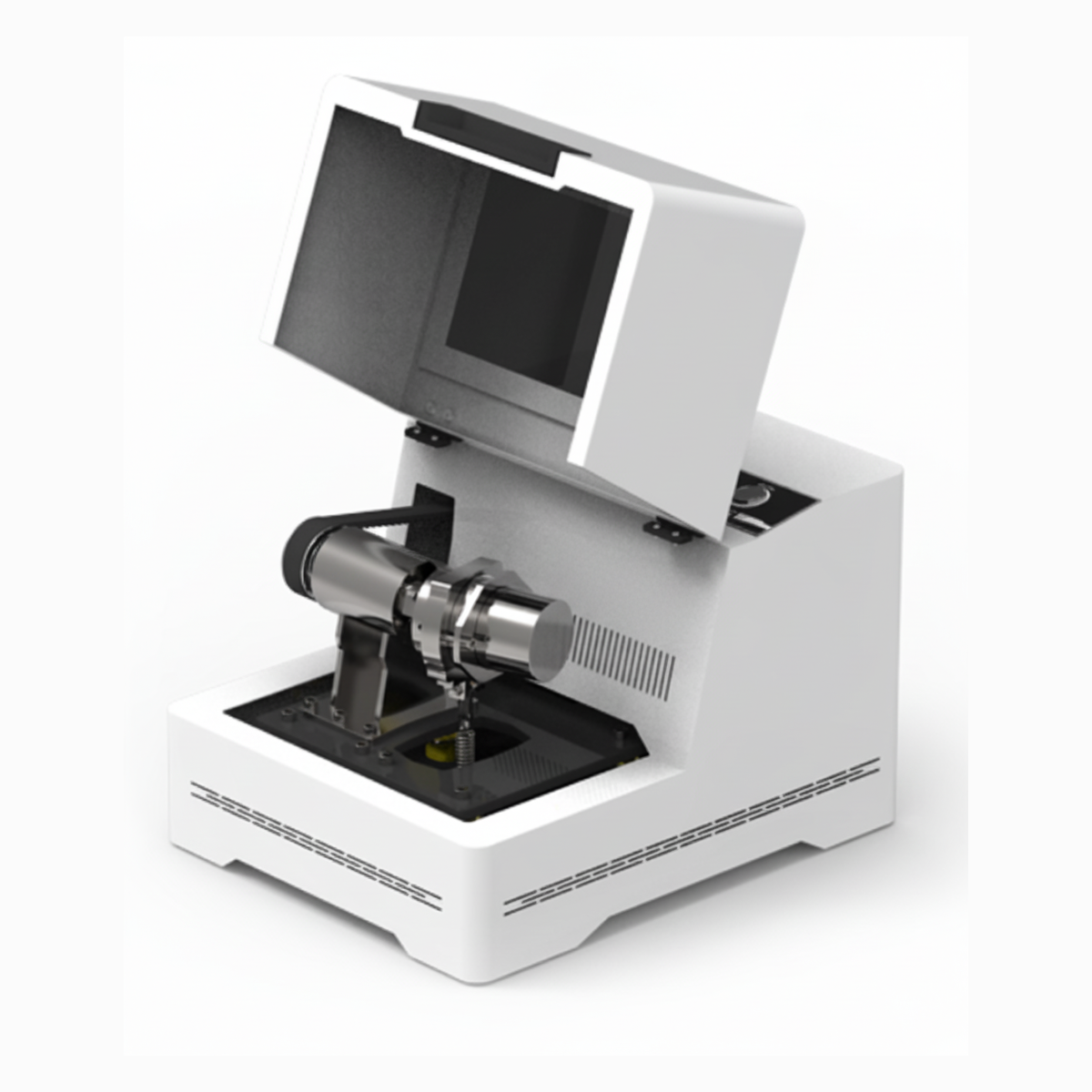

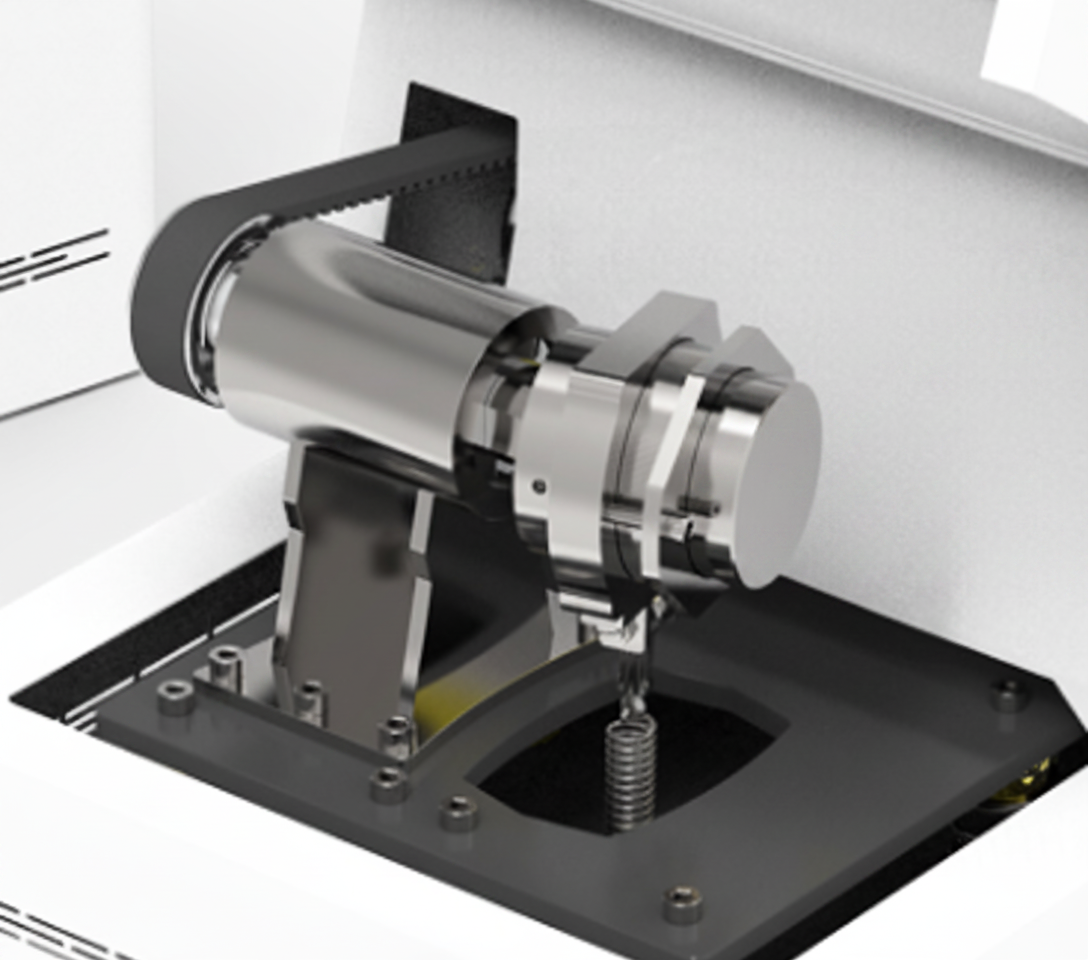

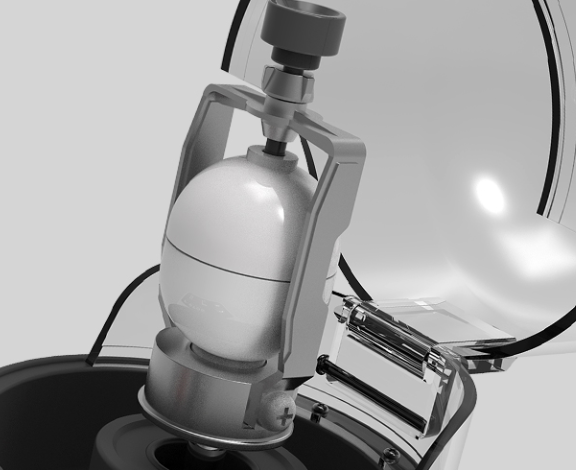

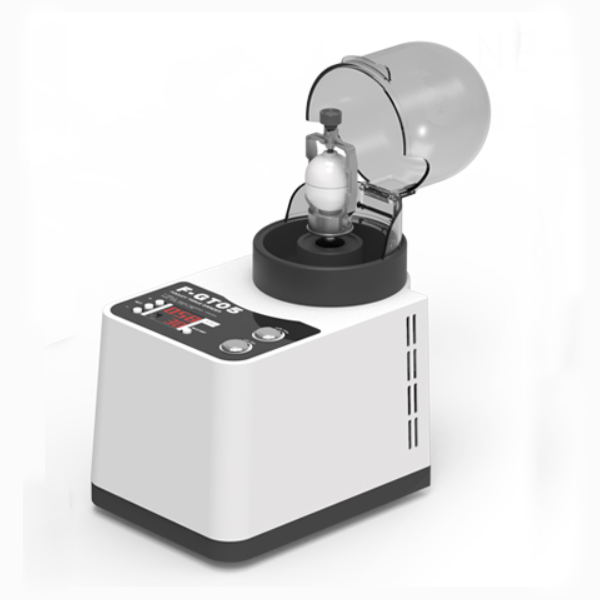

Mini single-jar and glovebox-compatible units: compact tabletop mills sized for milliliter-scale batches, including configurations qualified for argon-filled glovebox operation when working with moisture- or oxygen-sensitive sulfides, lithium metal composites, and air-sensitive precursors.
Choosing within this section comes down to batch volume, target particle size, and sample sensitivity: disk and cup mills for fast analytical preparation of hard solids; high-energy shaker mills for mechanochemistry and solid-electrolyte synthesis; nano and ultra-high-energy mills when a nanoscale endpoint is required; cryogenic mills for thermally sensitive or ductile samples; and glovebox-compatible mini mills for inert-atmosphere work. For rotational alternatives, see Planetary Ball Mills; for the broader category, see Ball Mills and Mixers and Mills.
