Name: ECS-FS Nano High-Energy Vibratory Ball Mill (1800 rpm, 2*125 mL), EFSNOHEVBM
Brand: FKS
SKU: EFSNOHEVBM

ECS-FS Nano High-Energy Vibratory Ball Mill (1800 rpm, 2*125 mL), EFSNOHEVBM

In Stock SKU: EFSNOHEVBM

Use your own shipping account?

We support FedEx, UPS, and DHL third-party billing for institutional customers.

Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.

Review third-party shipping terms →

To achieve true nanosize-output, a high-energy vibratory ball mill must operate at significantly higher frequencies than standard mixers. For research in advanced battery electrodes or solid electrolytes, these mills are used to reduce particles from micrometer scales down to the 10–100 nm range through intensive impact and friction.

In a high-energy vibratory mill, the jar undergoes high-frequency, small-amplitude oscillations. This creates a "chaotic" movement of the grinding media, where the balls strike each other and the jar walls with high kinetic energy (Ek = 1/2mv^2). (1) Impact Force: Breaks down brittle crystalline structures. (2) Shear Force: Essential for exfoliating layered materials (like graphite) and refining particle size. (3) Mechanochemical Activation: The energy is often high enough to trigger chemical reactions or phase changes at the surface of the particles.

To reach the nanometer scale, the system must be optimized far beyond standard "mixing" protocols:

Grinding Media (Balls): It is highly recommended to use micro-media (0.1 mm to 1.0 mm) for the final stages. Smaller balls provide a much higher frequency of contact points per volume. Normally Yttrium-stabilized Zirconia (YSZ) is the gold standard due to its high density (6.0 g/cm3) and extreme wear resistance, preventing sample contamination.
Frequency and Amplitude: High-energy units typically operate at 30–60 Hz (1,800–3,600 RPM). Amplitude: Usually set between 1–10 mm. For nanosizing, a smaller amplitude at a higher frequency is often more effective at generating the necessary shear.
Slurry vs. Dry Milling: Wet milling is highly recommended for nanosizing. Using a solvent (ethanol, NMP, or DI water) prevents particle agglomeration (where small particles stick back together due to Van der Waals forces).

Part Number	EFSNOHEVBM (EFS-NOHEVBM)
Power	AC110 or 220V±10%, single phase, 50/60Hz, 750 W
Milling Features	Vibratory grinding/milling/mixing Both dry/wet milling can be operated High-Frequency vibration in horizontal arc shape back and forth Milling jar vibration frequency: Max. 1800 rpm (adjustable). Milling time: 10-60 s

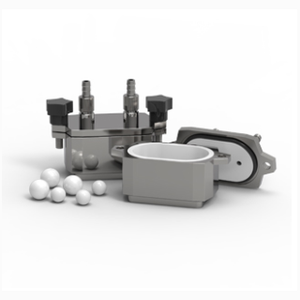

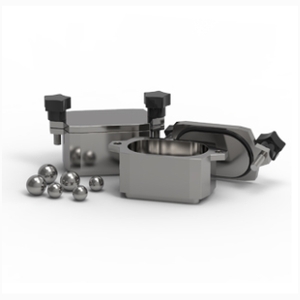

Milling Jar (Optional) Features	Jar Volume: Max. 125 mL/each (dual jar). The maximum processing capacity is 250 mL. Jar Materials: Stainless Steel, PTFE, Zirconia, Tungsten Carbide. (The milling jars are not included in the standard package and please purchase it as accessories additionally. Milling balls in 1-30 mm. Standard Milling Jars EFSANOHEVBMMJ125 Vacuum Milling Jars EFSANOHEVBMVMJ125
Particle Features	Max size of feeding powder: < 10 mm Output Power size after milling: ~100 nm
Low Temperature Version (Optional)	If the low-temperature (-50°C) vibratory ball mill is required, the integration with a liquid nitrogen or cooling water is available upon request.
Heating Version (Optional)	If the milling jars need to be operated at the high temperature (Max. 200°C, 1200 W), the heating version can be supplied upon request.
Certification	CE certified UL and CSA certification is available upon request at extra cost
Dimension	L680 * W540 * H320 mm
Weight	~95 kg
