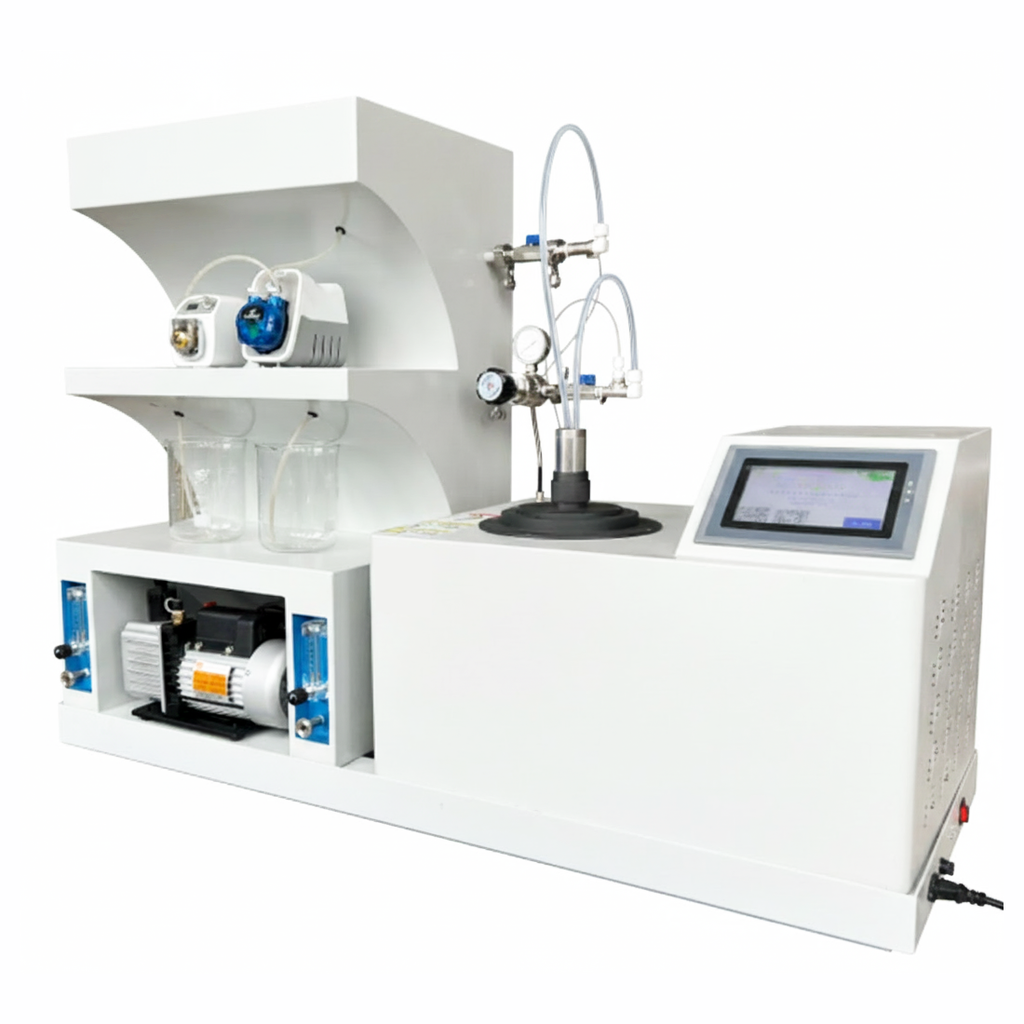

ECS-M Continuous Flow Single-Mode Microwave Reactor (0.5 MPa, 200°C), EMCFSMMR
  • ECS-M Continuous Flow Single-Mode Microwave Reactor (0.5 MPa, 200°C), EMCFSMMR
  • ECS-M Continuous Flow Single-Mode Microwave Reactor (0.5 MPa, 200°C), EMCFSMMR
  • ECS-M Continuous Flow Single-Mode Microwave Reactor (0.5 MPa, 200°C), EMCFSMMR
ECS-M Continuous Flow Single-Mode Microwave Reactor (0.5 MPa, 200°C), EMCFSMMR

ECS-M Continuous Flow Single-Mode Microwave Reactor (0.5 MPa, 200°C), EMCFSMMR

In Stock SKU: EMCFSMMR
Use your own shipping account?

We support FedEx, UPS, and DHL third-party billing for institutional customers.

Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.

Review third-party shipping terms →

A Continuous Flow Single-Mode Microwave Reactor is an advanced chemical processing system that combines the volumetric heating of microwaves with the precision of a focused electromagnetic field and the scalability of flow chemistry.

Standard microwave reactors (Multi-mode) are like household microwaves; they have chaotic "hot spots" and "cold spots." A Single-Mode reactor uses a specialized wave-guide to focus all energy into a single, intense "hot zone" in the center of the cavity. (1) Uniformity: By mounting a narrow reaction tube (typically Borosilicate or Silicon Carbide) at the center of the single-mode cavity, the electromagnetic field remains perfectly homogeneous throughout the flow path. (2) Precision: Single-mode systems (e.g., CEM Discover Flow) can track the "Resonance Frequency" in real-time (within 1 second). The reactor automatically retunes the frequency to maintain a constant temperature.

Part Number
  • EMCFSMMR (EM-CFSMMR)
Power
  • AC220V±10%, single-phase, 50/60Hz, 1300W
Key Features for Single-Mode Microwave Reactor

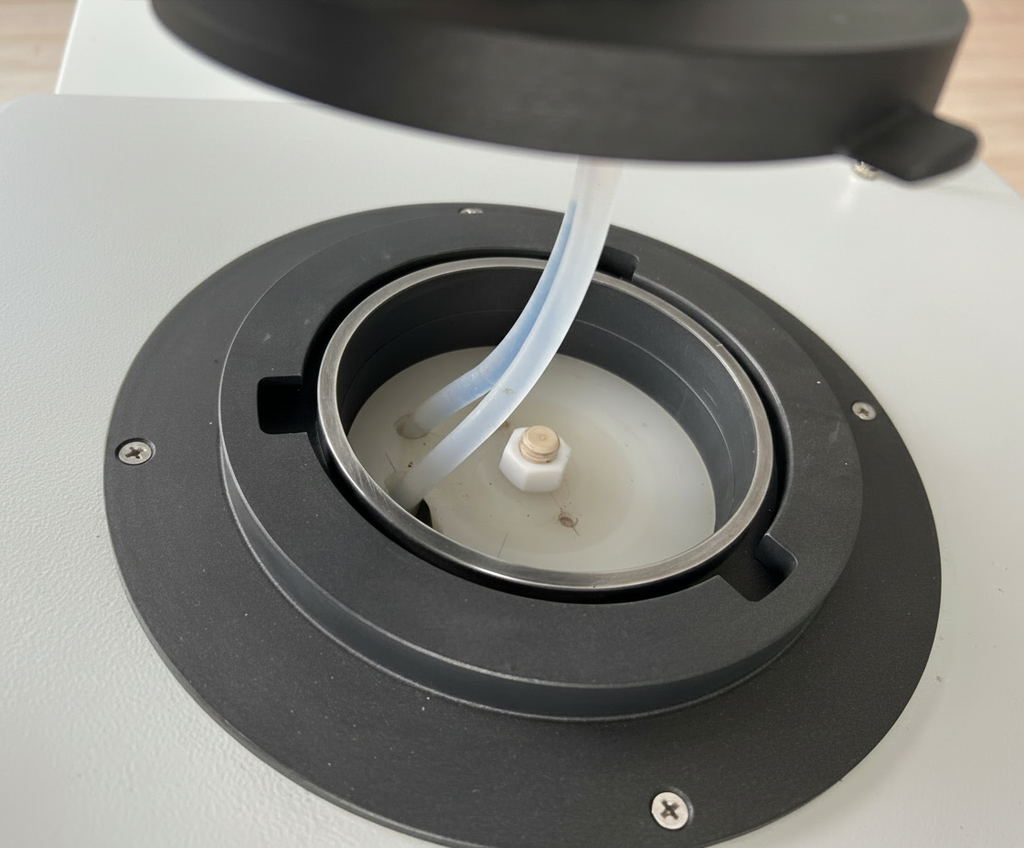

  • Single-mode cylindrical microwave cavity design
  • Microwave Source Power: 700W, 2450 MHz, continuous power output (no pulse)
  • Reactor Material: SS304, inside coated with PTFE for anti-corrosion purpose
  • Inside Chamber Volume: ~1 L

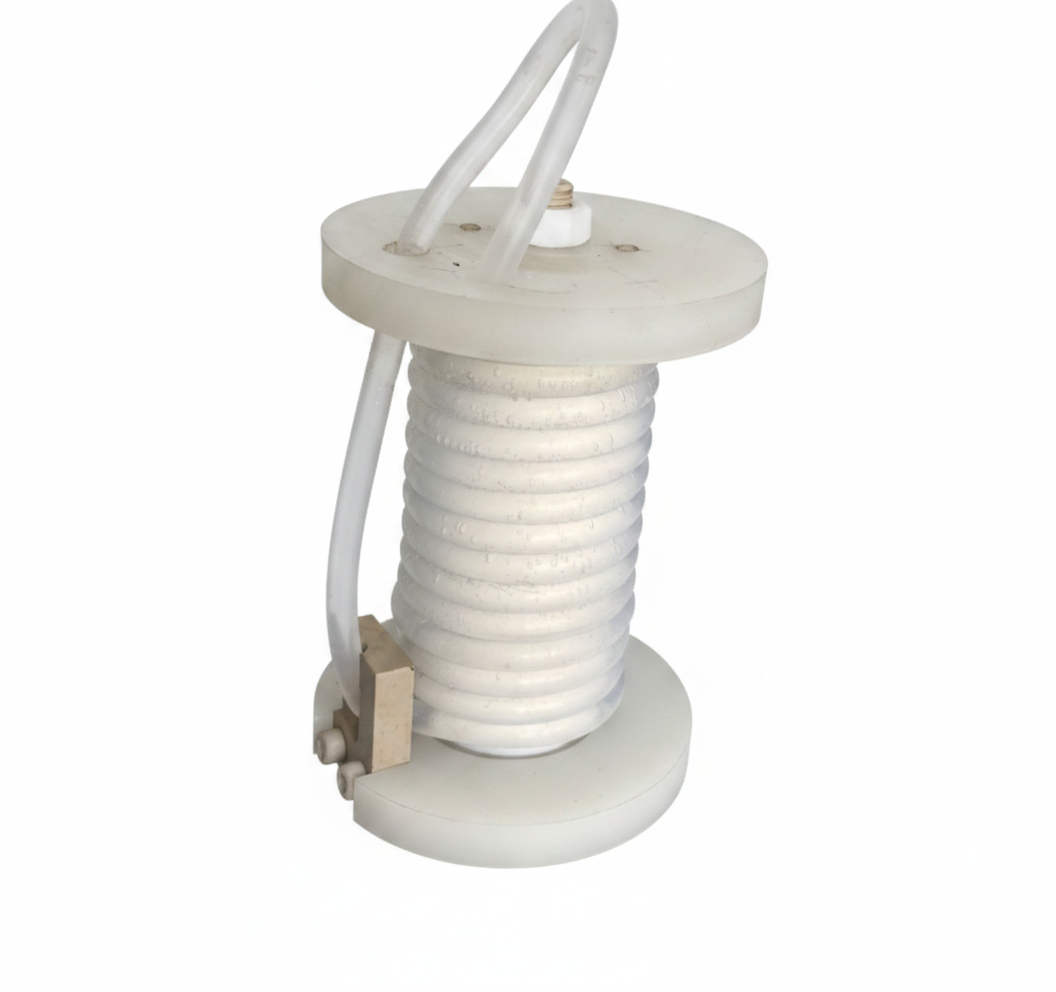

  • Reaction Vessel: Φ6mm * 2m plastic (PFA) tubing and support temperature & pressure measurement. Customized one with Φ1mm and Φ3mm also available.
  • Design Temperature: 0-200°C (the higher temperature of 300°C can be supplied upon request). IR and optical fiber for temperature measurement.
  • Operation Pressure: 0-0.5 MPa. Contact-type sensor for pressure measurement.
  • Fuild design: Single flow mode with external circulation and flow rate is Max. 1000 mL/min. Two flow mixing mode can be supplied upon request.



  • PLC control and HMI touch screen monitor
Certification
  • CE certified
  • UL and CSA certification is available upon request at extra cost
  • One-year warranty and life-time technical support.
Dimension
  • L1270 * W470 * H920 mm
Weight
  • ~75 kg



References:

M. Nishioka, et al., Single-Mode Microwave Reactor Used for Continuous Flow Reactions under Elevated Pressure, Ind. Eng. Chem. Res. 2013, 52, 12, 4683–4687

W. Zhang, et al., Design of a capacity-enhanced single-mode reactor for microwave chemistry researches, Chemical Engineering Journal, 2022, 427, 131898
