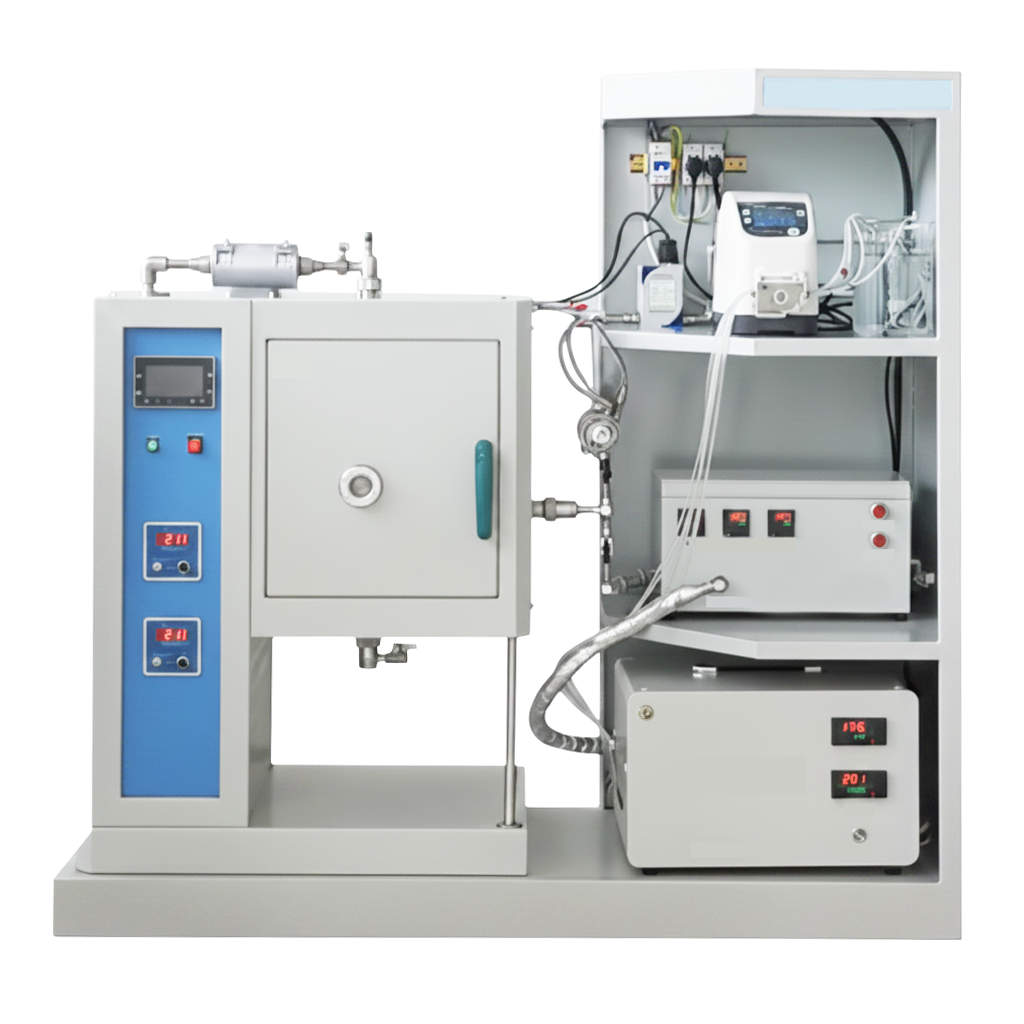

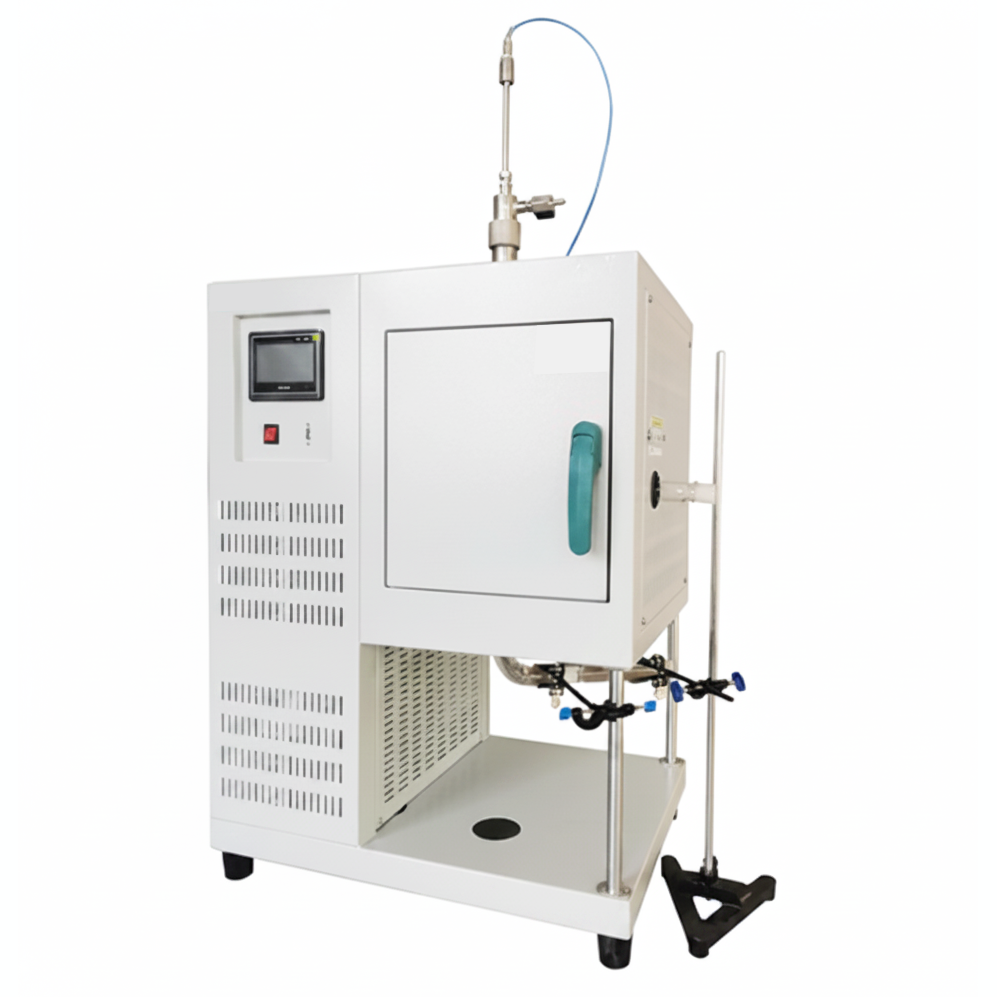

A Microwave Vertical Tube Furnace is a high-precision thermal processing system that combines the rapid, volumetric heating of microwaves with the inherent temperature uniformity of a vertical orientation. The vertical design leverages natural convection to create a highly stable thermal environment, which, when coupled with microwave energy, allows for "flash" reactions that are nearly impossible in traditional resistive furnaces.

The vertical orientation (often called a "Top-Loading" or "Fall-Through" configuration) offers several unique benefits: (1) Natural Convection: Heated gases naturally rise, creating a continuous convective loop inside the tube. This actively mixes the atmosphere, smoothing out hot spots and resulting in superior axial temperature uniformity compared to horizontal designs. (2) Contamination Control: In a vertical setup, gravity pulls microscopic particles generated during the reaction straight down, past the sample and away from critical surfaces. This is vital for semiconductor-grade battery coatings and high-purity battery material synthesis. (3) Space Efficiency: The vertical footprint is significantly smaller than a horizontal unit, making it ideal for crowded laboratories with limited space.

References:

G. Liu, et al., Heating-Rate Controlled Microwave Co-Pyrolysis for Synergistically Doped Carbon Electrode Materials, ACS Appl. Energy Mater. 2026, 9, 5, 2600–2610

P. Gao, et al., Microwave rapid preparation of LiNi0.5Mn1.5O4 and the improved high rate performance for lithium-ion batteries, Electrochimica Acta, 2013, 100, 125-132.
