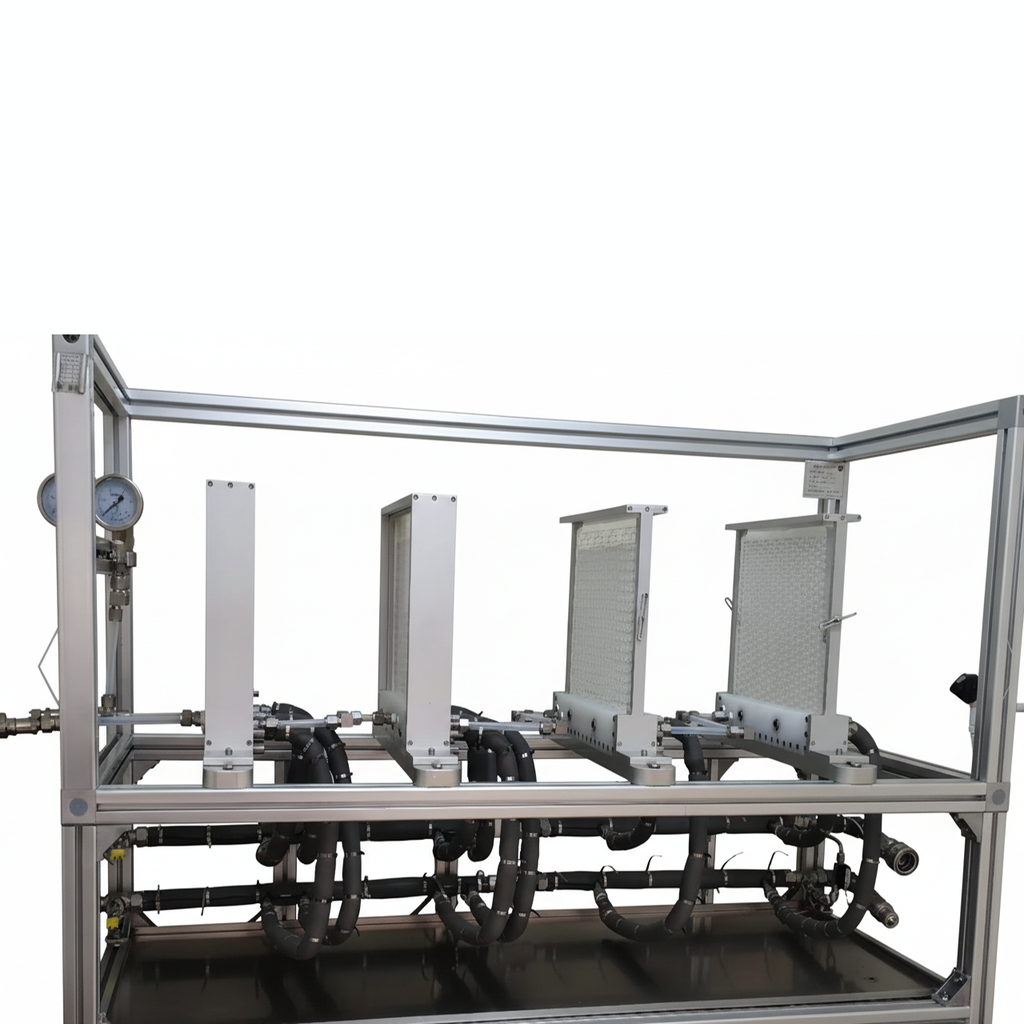

A large-scale Continuous Flow Microreactor with Four Glass Modules is a sophisticated, benchtop-scale multi-stage reaction system. This four-module configuration is a mechanical necessity for performing complex, multi-step liquid-phase synthesis (such as sequential co-precipitation or surface functionalization) in a single continuous stream. By using glass modules, operator can gain full visual transparency and extreme chemical inertness, allowing to monitor real-time changes in color or precipitation as precursors move through the reaction stages.

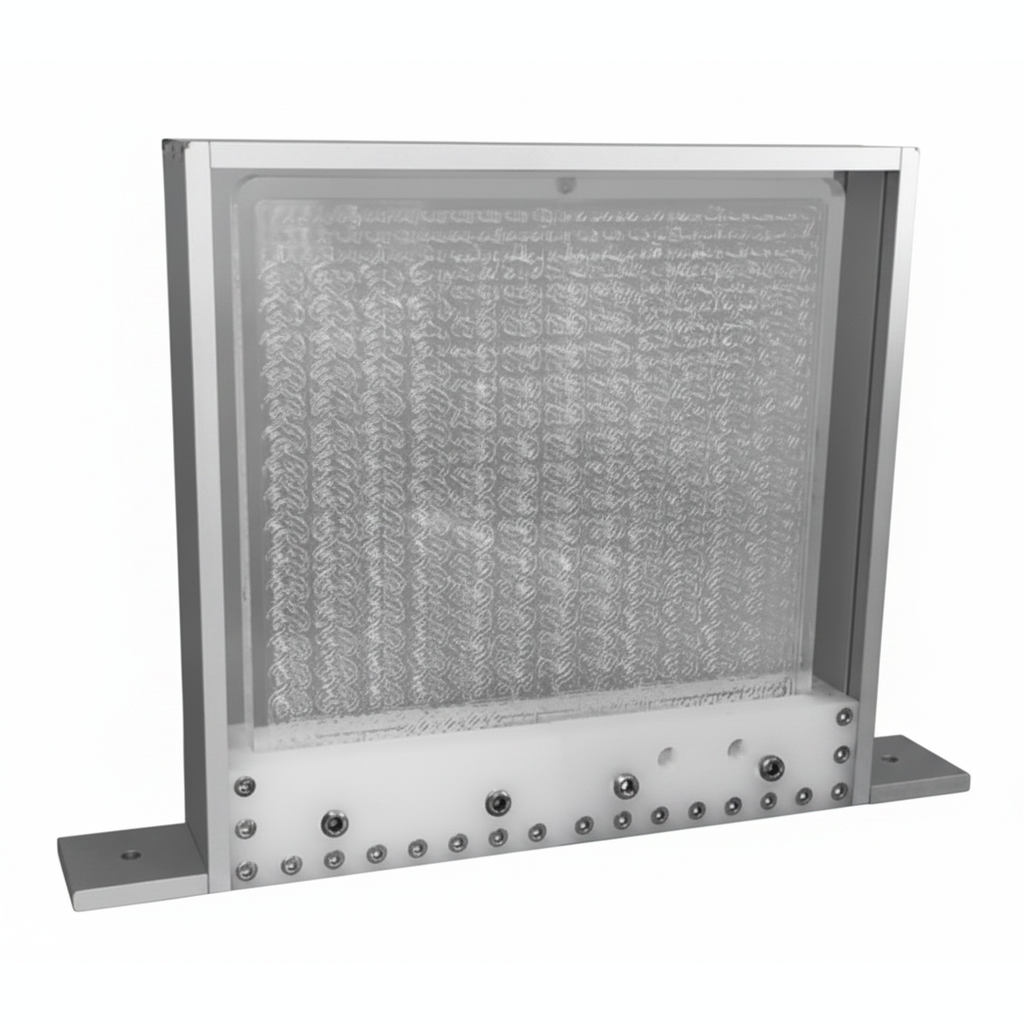

In a five-module setup, each glass module acts as a dedicated functional zone. (1) Pre-heating & Mixing. Two or more liquid precursors (e.g., iron/phosphate salts and reducing agents) are brought to temperature and mixed using "Heart-cell" or "Herringbone" micro-structures to achieve molecular-level homogeneity. (2) Nucleation & Primary Reaction. The bulk of the chemical transformation occurs here. The high surface-to-volume ratio of the glass channels ensures that the heat of the reaction is dissipated instantly, preventing "hot spots" that could lead to impurity phases. (3) Growth & Aging. The "aged" residence time module. By extending the flow path, primary particles will grow to the desired size without the risk of the "tail-end" agglomeration found in batch reactors. (4) Quenching or Secondary Coating. A fourth reagent (e.g., a carbon source or surfactant) can be injected to "quench" the reaction or provide an in-situ coating to the particles before they exit the system.

References:

T. Razzaq, et al., Continuous-Flow Microreactor Chemistry under High-Temperature/Pressure Conditions, European Journal of Organic Chemistry, 2009, 9, 1321-1325.

M. Atobe, et al., Applications of Flow Microreactors in Electrosynthetic Processes, Chem. Rev. 2018, 118, 9, 4541–4572.

J. I. Yoshida, et al., Flash chemistry: flow microreactor synthesis based on high-resolution reaction time control, The Chemical Record, 2010, 10, 332-341
