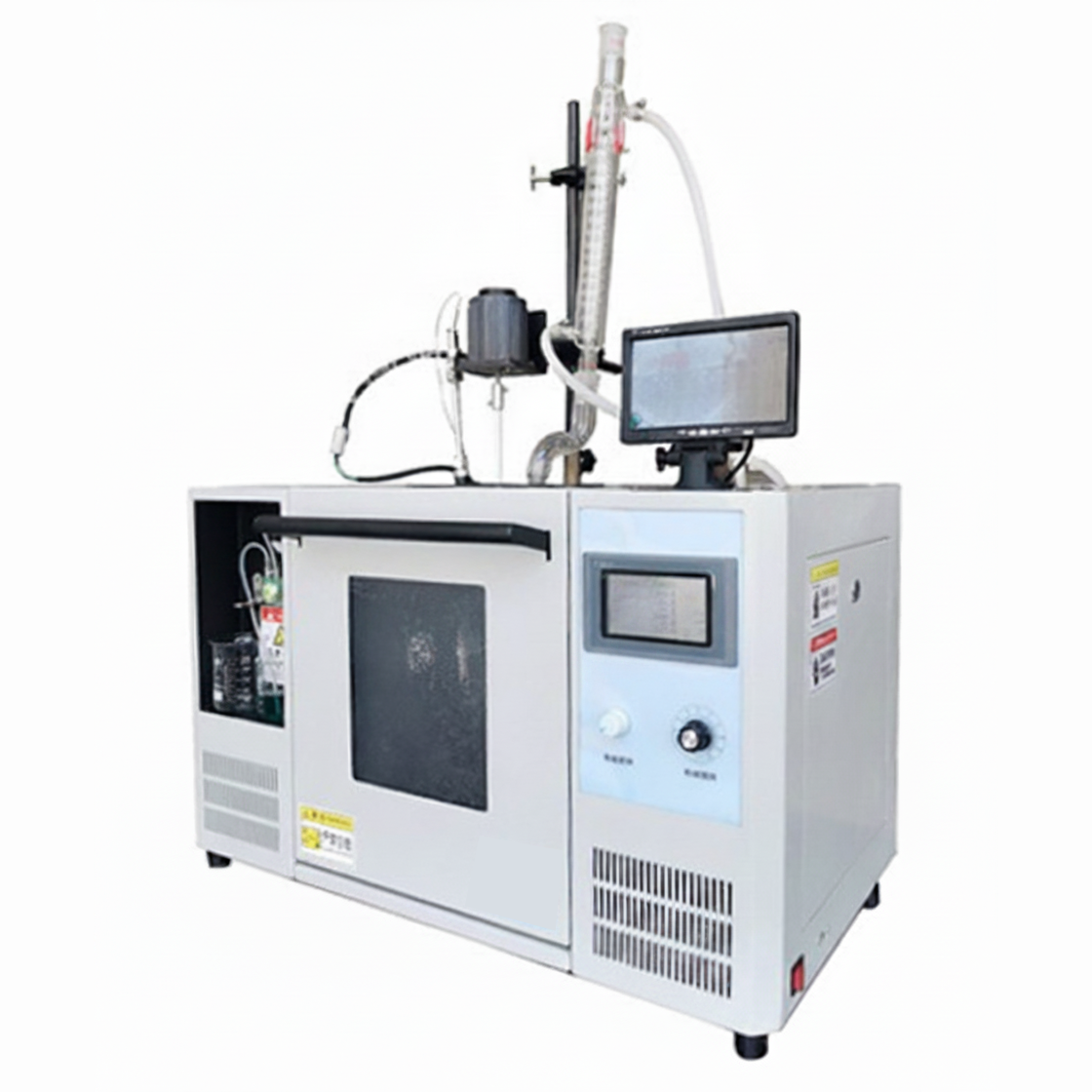

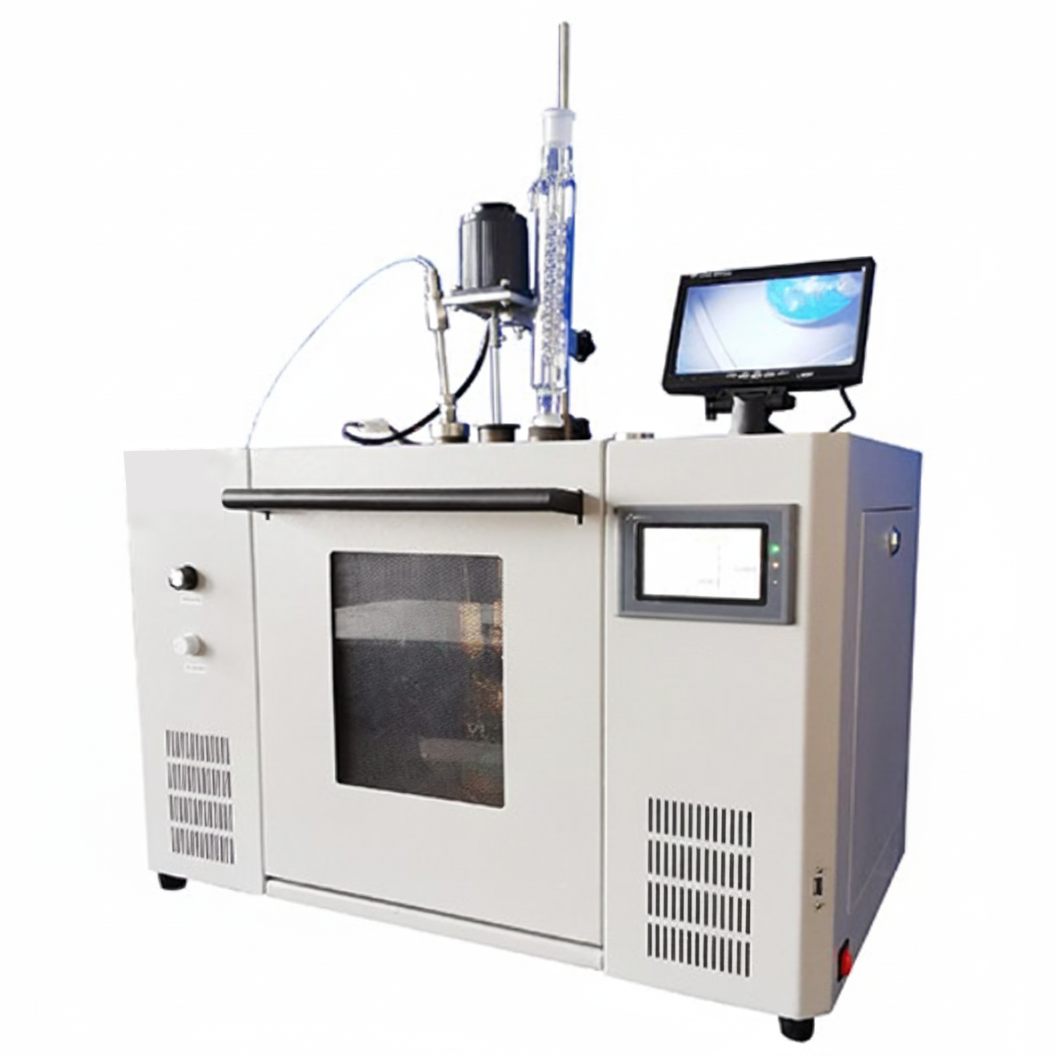

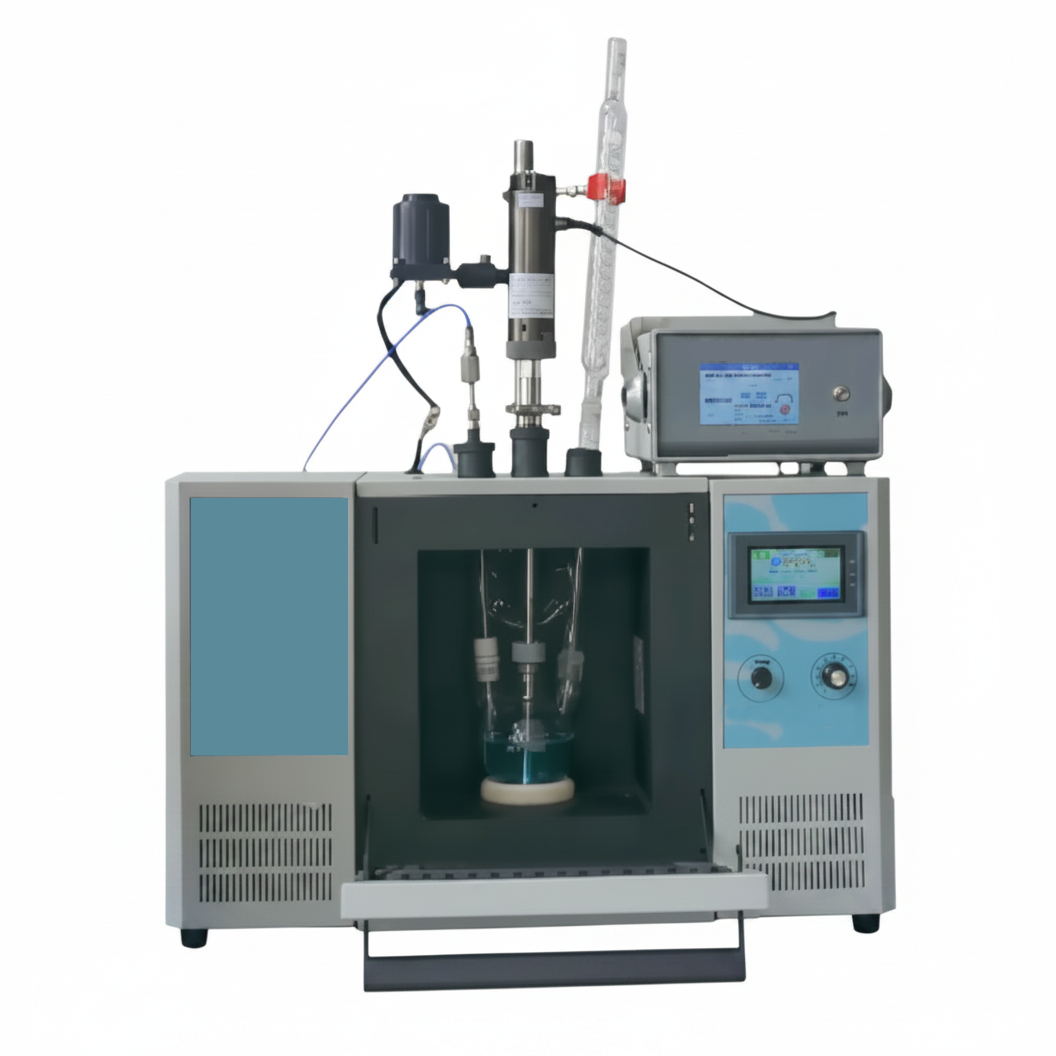

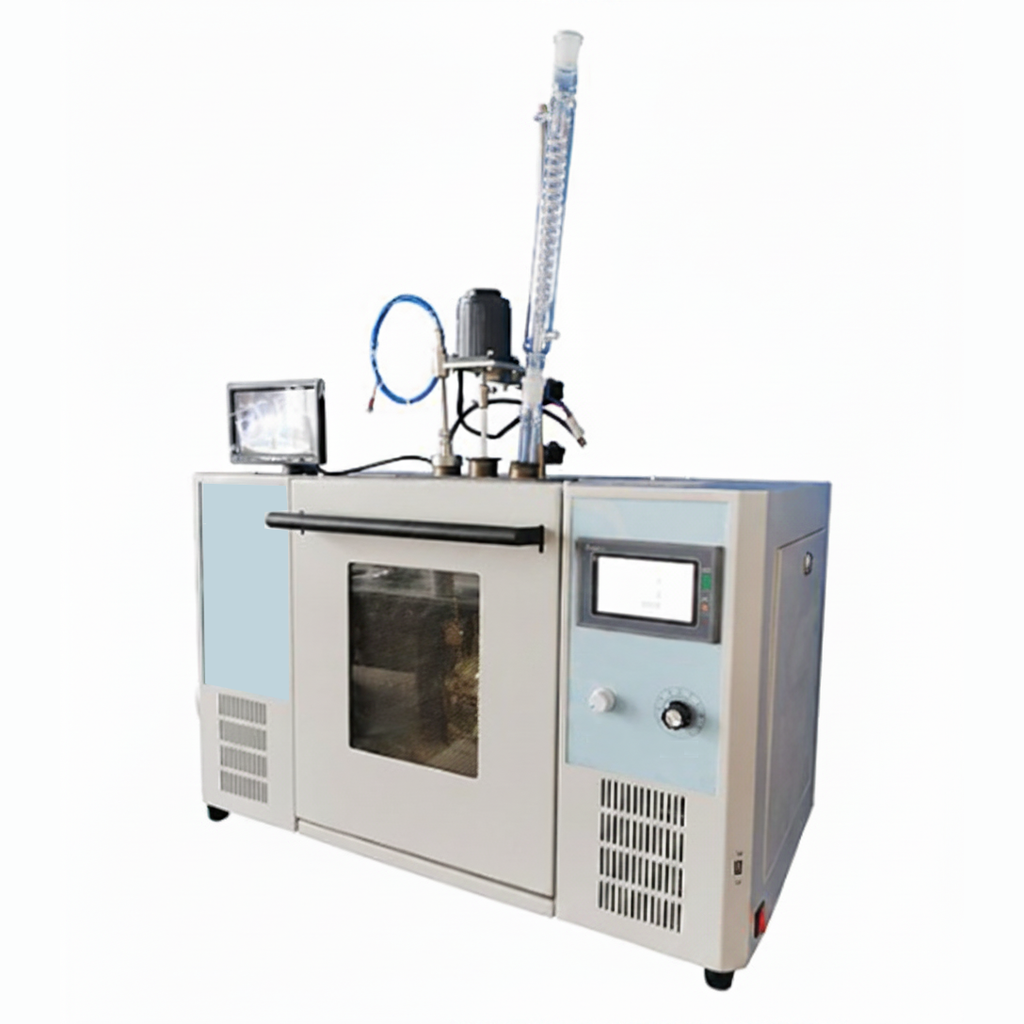

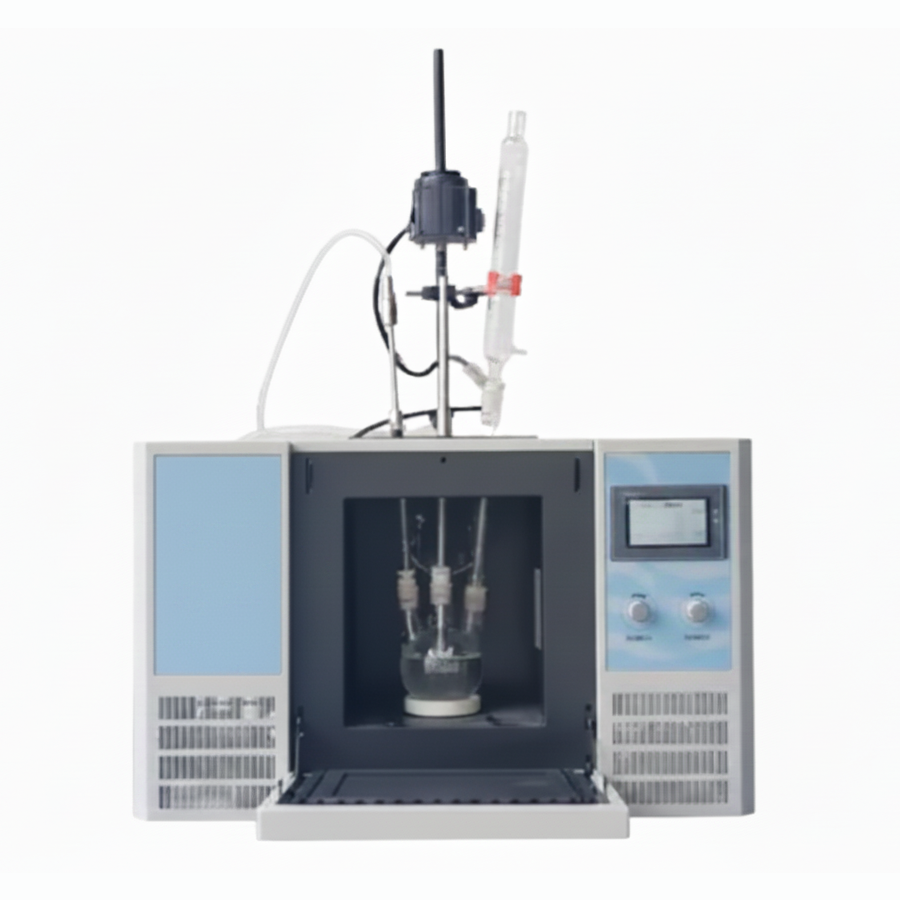

A Microwave Reactor (300°C, 500 mL) with Mechanical Shaft and Magnetic Stirring is a specialized laboratory synthesizer designed for the rapid and high-temperature synthesis of nanomaterials and chemicals. While standard laboratory microwaves rely on magnetic stirring, the addition of a mechanical shaft (overhead stirrer) is a significant upgrade that allows for the processing of high-viscosity slurries and thick battery pastes that would "de-couple" or stall a standard magnetic stir bar.

This hybrid stirring configuration solves the two primary mixing challenges in electrochemical material research: (1) Magnetic Stirring (Bottom): Ideal for low-viscosity solutions and early-stage precursor mixing. It provides high-speed rotation to ensure a homogenous thermal distribution during the initial heating phase. (2) Mechanical Shaft (Top/Overhead): A motor-driven impeller that physically cuts through the medium. As your NFPP or NNFMO precursors precipitate and the slurry thickens, the mechanical shaft maintains a constant agitation rate, preventing the material from settling or creating "thermal hotspots" that could lead to phase impurities.

References:

Y. Wang, et al., Microwave-assisted synthesis of SnO2–graphite nanocomposites for Li-ion battery applications, Journal of Power Sources, 2005, 144, 220-225

S. Balaji, et al., A review on microwave synthesis of electrode materials for lithium-ion batteries, Ionics, 2009, 15, 765–777
