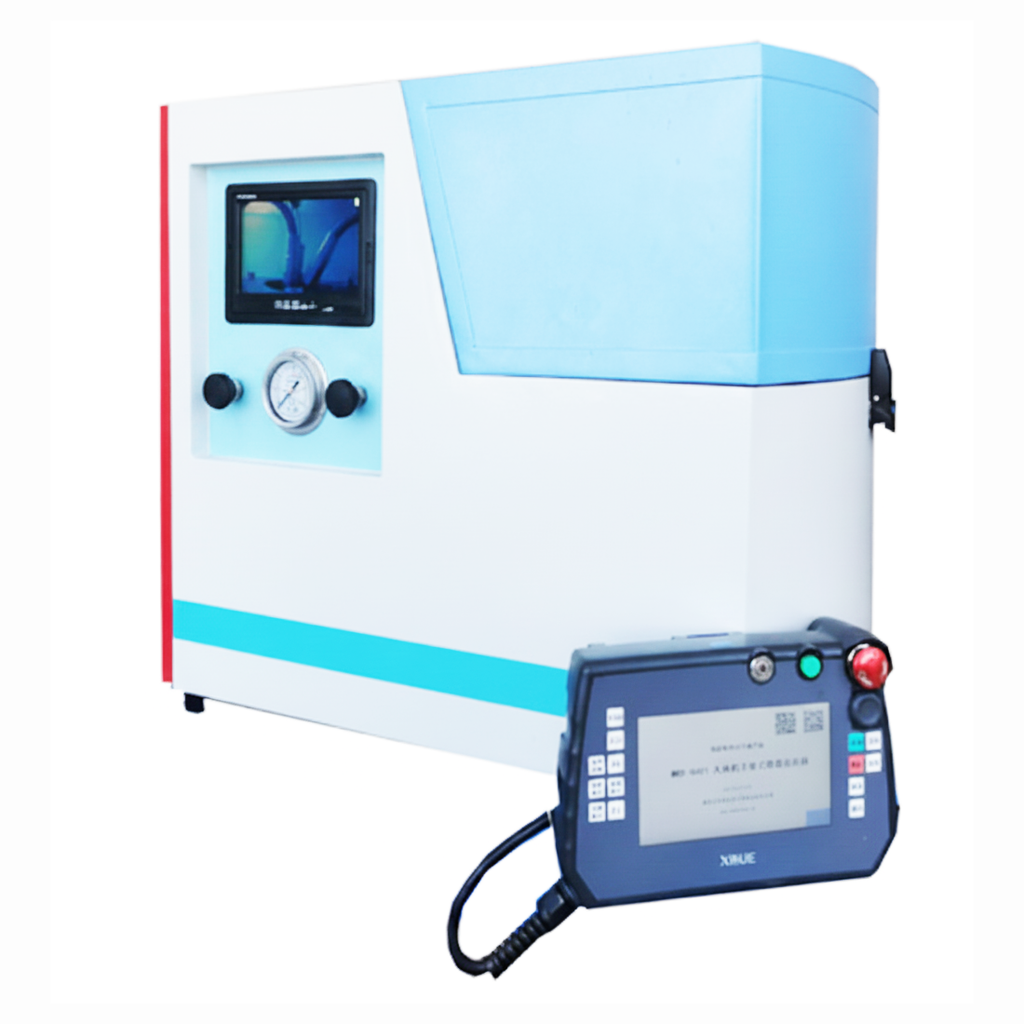

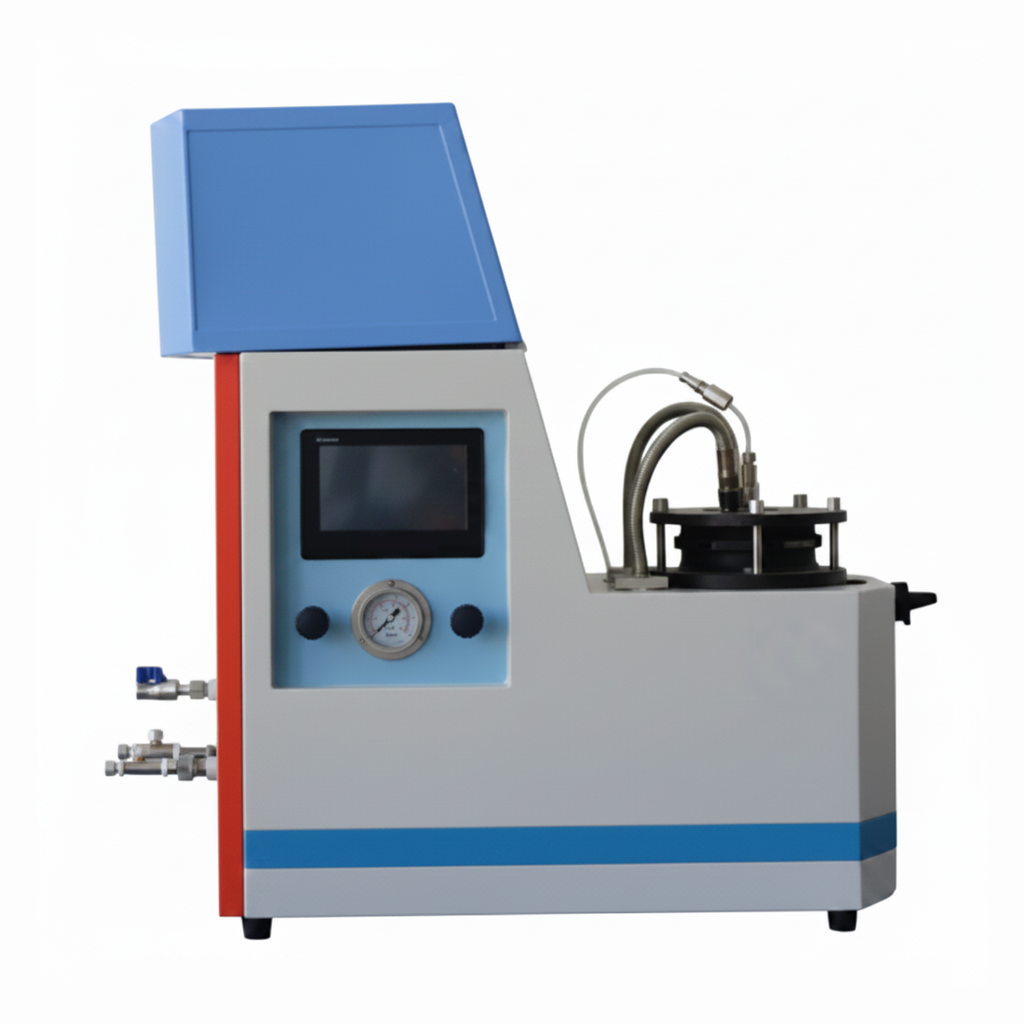

ECS-M Ultra-High Pressure Microwave Reactor (10 MPa, 300°C, 500mL) with Magnetic Stirring, EMUHPMRMS
  • ECS-M Ultra-High Pressure Microwave Reactor (10 MPa, 300°C, 500mL) with Magnetic Stirring, EMUHPMRMS
  • ECS-M Ultra-High Pressure Microwave Reactor (10 MPa, 300°C, 500mL) with Magnetic Stirring, EMUHPMRMS
ECS-M Ultra-High Pressure Microwave Reactor (10 MPa, 300°C, 500mL) with Magnetic Stirring, EMUHPMRMS

ECS-M Ultra-High Pressure Microwave Reactor (10 MPa, 300°C, 500mL) with Magnetic Stirring, EMUHPMRMS

In Stock SKU: EMUHPMRMS
Use your own shipping account?

We support FedEx, UPS, and DHL third-party billing for institutional customers.

Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.

Review third-party shipping terms →

Ultra-High-Pressure Microwave Reactor with Magnetic Stirring is a precision laboratory instrument that combines volumetric microwave heating with a sealed, pressurized environment. By operating under high pressure, the reactor allows solvents (water, alcohols, or glycols) to reach temperatures well above their atmospheric boiling points, significantly accelerating the crystal growth of battery materials while maintaining a homogenous morphology.

Part Number
  • EMUHPMRMS (EM-UHPMRMS)
Power
  • AC220V±10%, single-phase, 50/60Hz, 1300W
Key Features for Microwave Reactor
  • Microwave Source Power: 500W, 2450 MHz, continuous power output (no pulse)
  • Reactor Material: SS304, inside coated with PTFE for anti-corrosion purpose
  • Inside Chamber Volume: ~1 L
  • Reaction Vessel: 500 mL high pressure PTFE tank with high sealing quality and support temperature & pressure measurement; or 18 positions with 10 mL glass reactor for high-throughput reactions.
  • Design Temperature: 0-300°C, optical fiber temperature measurement
  • Operation Pressure: 0-10 MPa. The automatic pressure increment and release function is available.
  • Magnetic Stirring, PTFE stirring bar, speed adjustable
  • PLC control and HMI touch screen monitor for monitoring temperature, pressure, and power parameters.
Certification
  • CE certified
  • UL and CSA certification is available upon request at extra cost
  • One-year warranty and life-time technical support.
Dimension
  • L730 * W580 * H400 mm
Weight
  • ~75 kg



References:

K. W. Hemawan, et al., Improved microwave plasma cavity reactor for diamond synthesis at high-pressure and high power density, Diamond and Related Materials, 2010, 19, 1446-1452

S. Horikoshi, et al., A hybrid microreactor/microwave high-pressure flow system of a novel concept design and its application to the synthesis of silver nanoparticles, Chemical Engineering and Processing: Process Intensification, 2013, 73, 59-66
