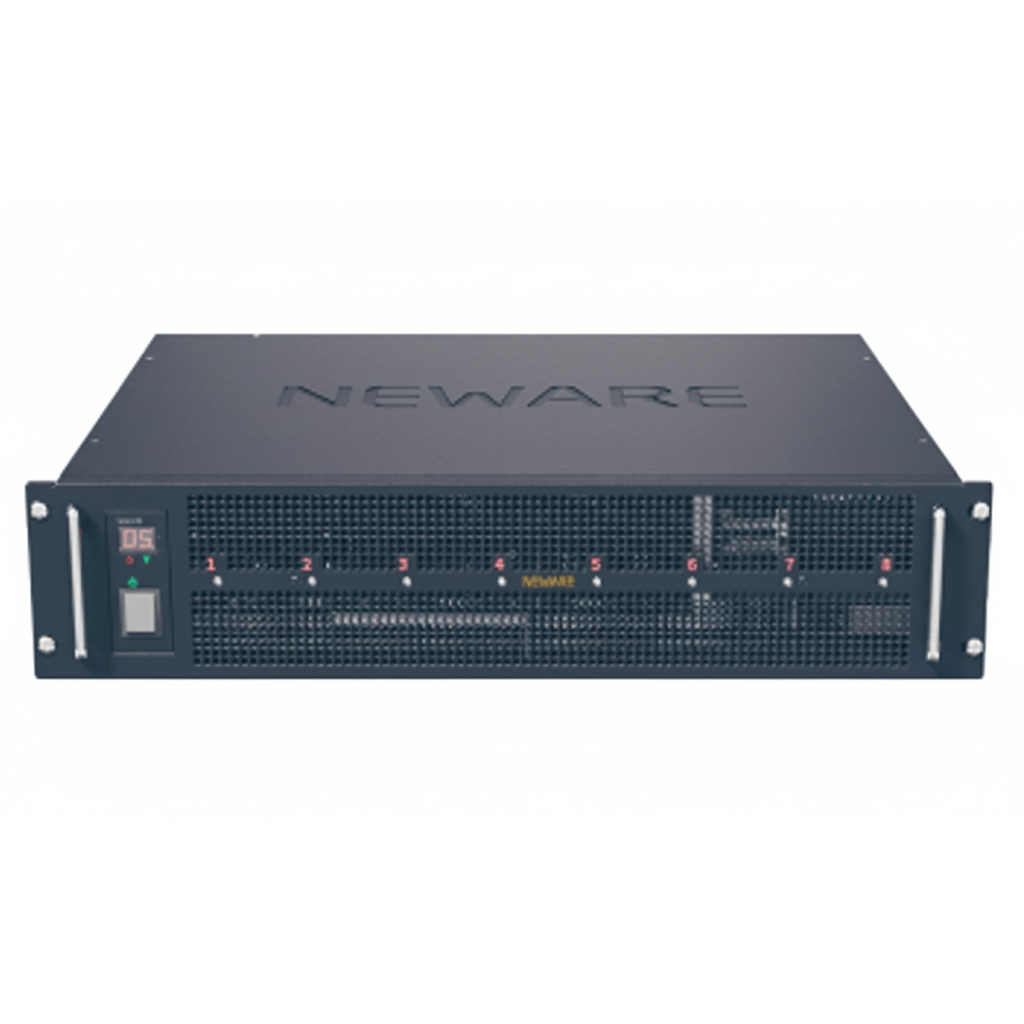

Neware CE-5008Q-20V30A Battery Testing System, ENCE5008Q20V30A

The Neware CE-5008Q-20V30A is a mid-range, high-precision battery testing system that sits between the cell-level R&D testers (like the CT-4008Q) and the massive pack-level testers (like the CE-6004). The "Q" designation indicates it is a multi-range (Quintuple) system, providing high accuracy across five different current scales. The 20V 30A specification makes it the ideal "bridge" system for testing high-capacity pouch cells, small modules, or supercapacitors.

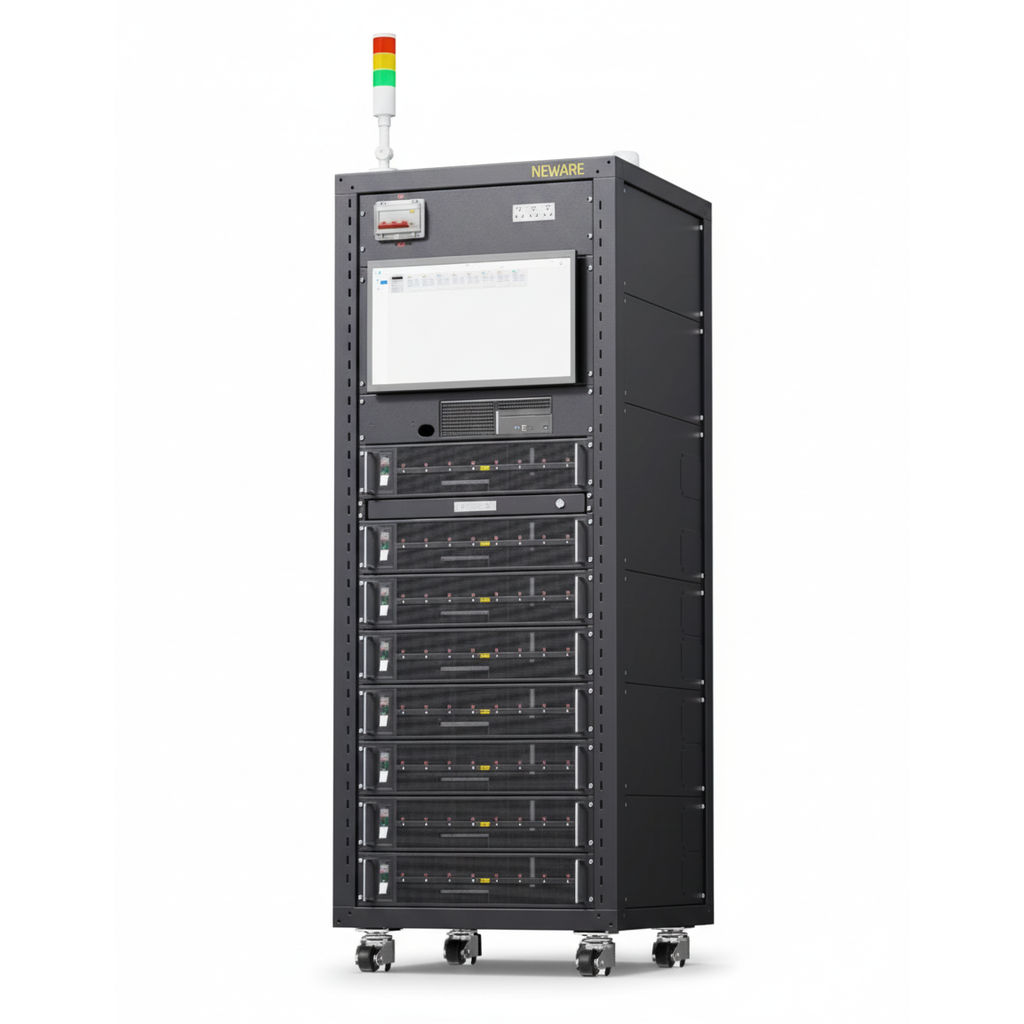

The key features are: (1) 4-Wire Kelvin Connection: Like all high-end Neware units, it uses separate sense and power leads. At 30A, lead resistance becomes a major factor; without Kelvin sensing, your voltage readings would be significantly offset by the heat and resistance in the cables. (2) BMS Integration: The CE-5000 series often includes auxiliary channels or CAN-bus integration to monitor individual cell voltages if you are testing a 20V module. (3) Stable Thermal Management: Because 30A at 20V generates significant heat (600W per channel), these units feature robust internal cooling fans and are typically housed in a larger floor-standing rack rather than a desktop chassis.

References:

S. Chen, et al., Critical Parameters for Evaluating Coin Cells and Pouch Cells of Rechargeable Li-Metal Batteries, Joule, 2019, 3, 1094-1105

Y. Son, et al., Analysis of Differences in Electrochemical Performance Between Coin and Pouch Cells for Lithium-Ion Battery Applications, Energy Environmental Materials, 2024, 7, e12615.
