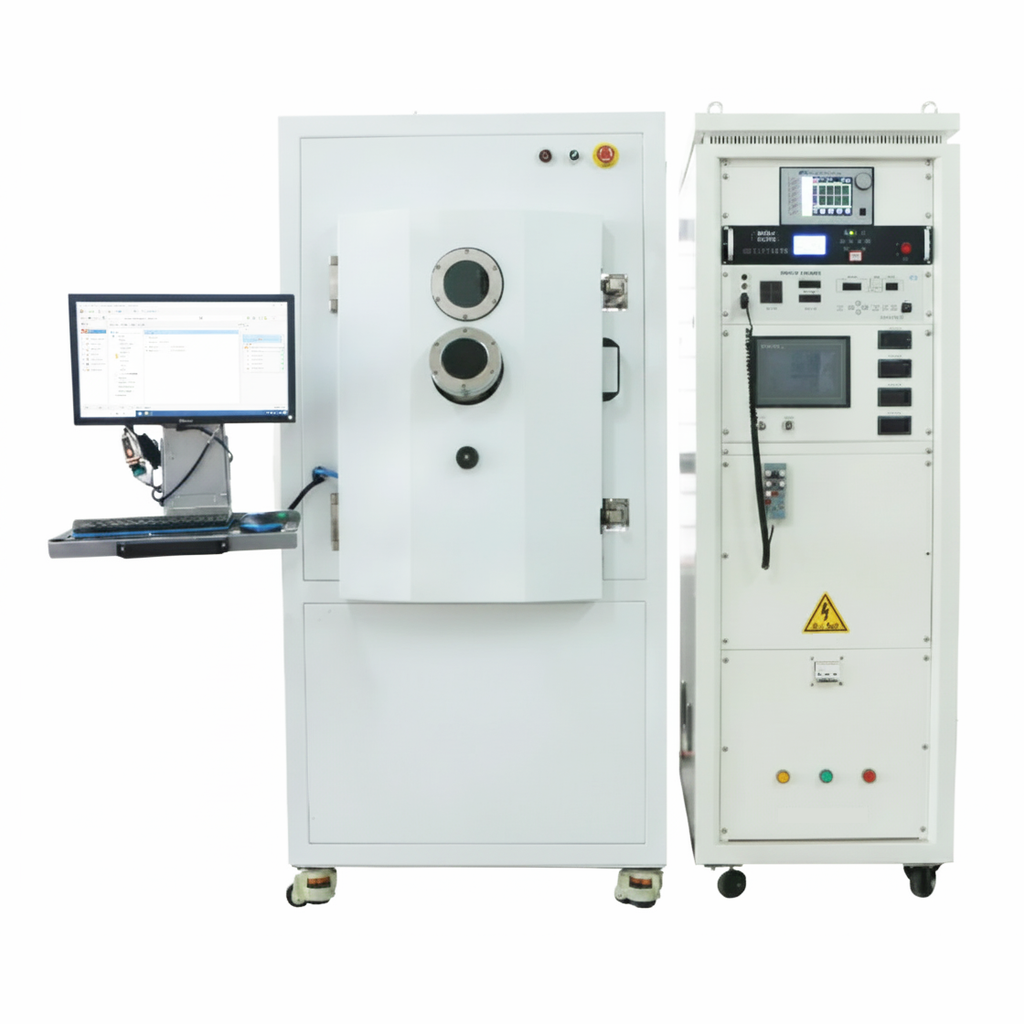

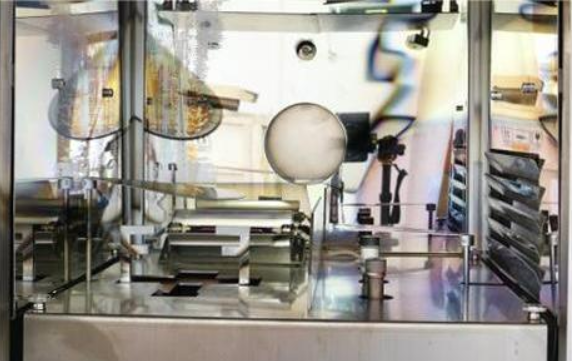

An Electron Beam (E-beam) Evaporation Coater is a sophisticated Physical Vapor Deposition (PVD) instrument used to deposit high-purity thin films. Unlike standard thermal evaporation, which uses resistive heating, E-beam evaporation utilizes a high-energy electron beam to directly heat the source material. This technology is essential for depositing materials with extremely high melting points that would otherwise destroy a traditional resistive boat or filament.

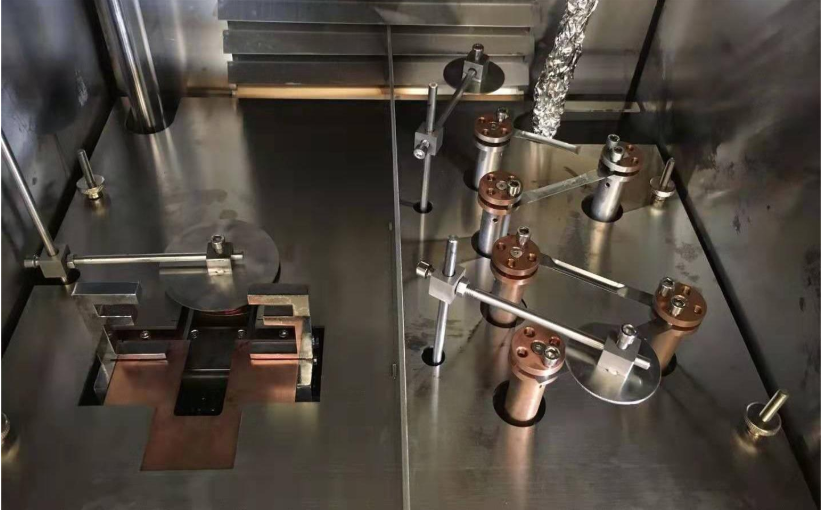

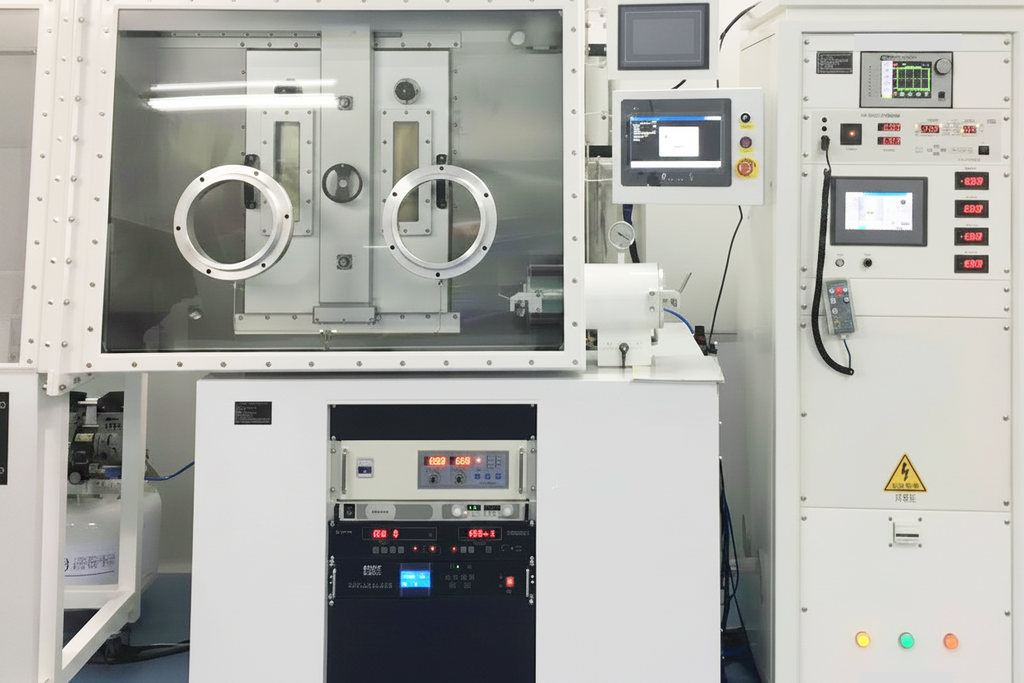

A high-performance E-beam system consists of several integrated sub-systems designed to manage high energy in a vacuum environment. (1) Electron Beam Source (E-Gun): A tungsten filament is heated to emit electrons via thermionic emission. Then a high-voltage field (typically 5 to 10 kV) accelerates these electrons toward the target. To protect the filament from being coated by the evaporating material, the electron beam is bent 270° using permanent magnets or electromagnets. This ensures only the beam reaches the crucible. (2) Crucible and Multi-Pocket Hearth: Because the electron beam delivers intense localized heat, the copper hearth must be continuously water-cooled to prevent the crucible itself from melting.  Most systems feature a rotating "pocket" design (e.g., 4 or 6 pockets), allowing for the sequential deposition of different materials (like Ti/Au or Al2O3/Pt) without breaking the vacuum. (3) Vacuum System: To ensure the electrons reach the target without colliding with gas molecules, the system must operate at high vacuum. Typically 10^{-4} Pa to 10^{-7} Pa, which ssually a combination of a dry scroll pump (roughing) and a high-speed Turbomolecular or Cryogenic pump.

References:

C. L. Li, et al., Physical and electrochemical characterization of amorphous lithium lanthanum titanate solid electrolyte thin-film fabricated by e-beam evaporation, Thin Solid Films, 2006, 515, 1886-1892

D. Sivlin, et al., ZrO2 coating via e-beam evaporation on PE separators for lithium-ion batteries, Ionics, 2021, 27, 577–586

S. Varghese, et al., Thin films of solid electrolyte lithium sulfate deposited by e-beam evaporation, Materials Today Proceedings, DOI: 10.1016/j.matpr.2023.02.328.
