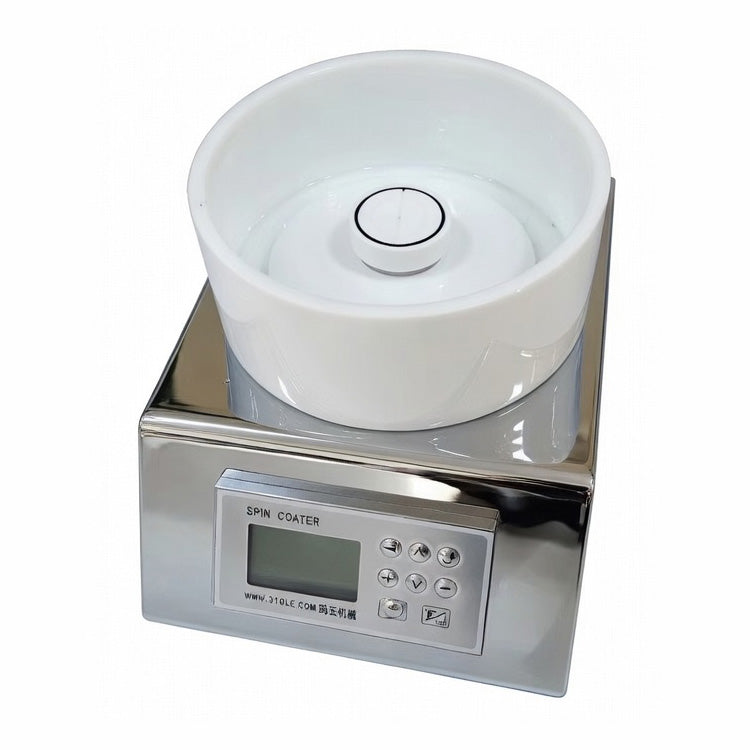

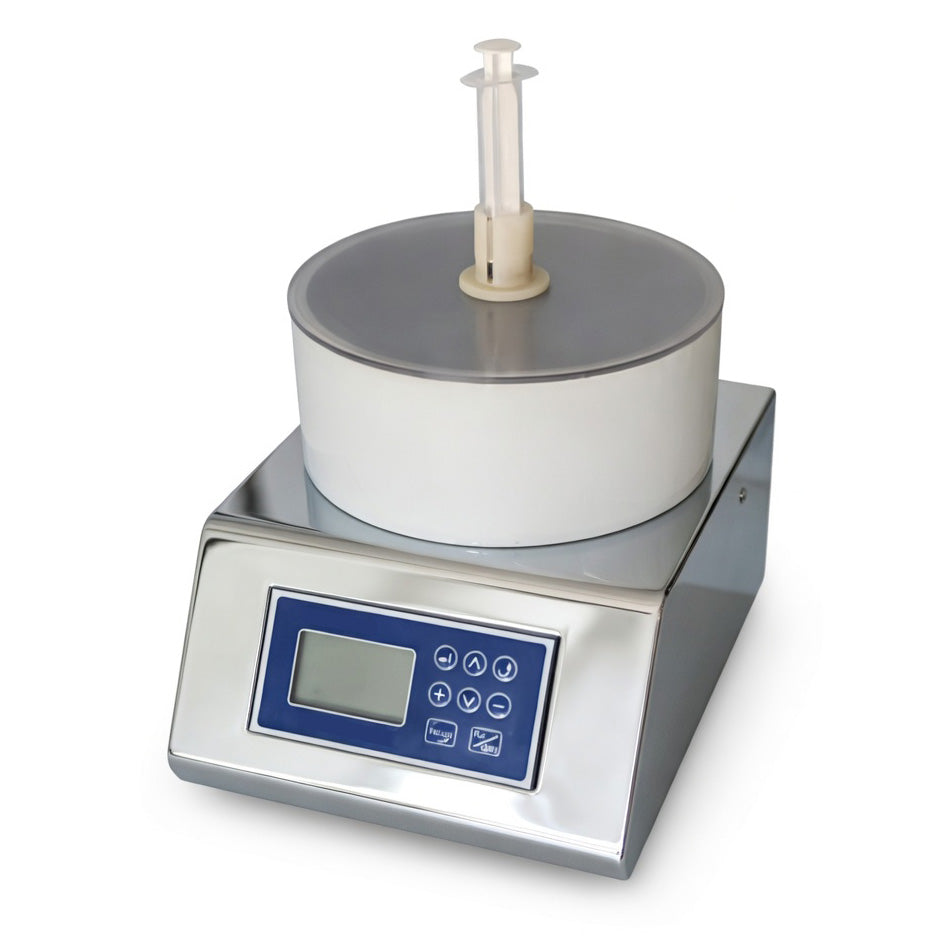

Name: ECS-SL Economic Programmable Spin Coater with Vacuum Chunk (Max. 150mm, 10000 rpm), ESLEPSCVC
Brand: SYSL
SKU: ESLEPSCVC
Price: 4899.00 USD
Availability: InStock

ECS-SL Economic Programmable Spin Coater with Vacuum Chunk (Max. 150mm, 10000 rpm), ESLEPSCVC

$4,899.00 USD

In Stock SKU: ESLEPSCVC

Use your own shipping account?

We support FedEx, UPS, and DHL third-party billing for institutional customers.

Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.

Review third-party shipping terms →

Add-Ons

Swipe

ECS-SL Economic Vacuum-Free Spin Coat...

$2,499.00

A programmable spin coater with a vacuum chuck is the gold standard for thin-film fabrication in academic, R&D, and cleanroom environments. It allows you to deposit highly uniform polymer, photoresist, sol-gel, or perovskite layers on flat substrates (such as silicon wafers, glass slides, or plastic films). The two essential elements of this tool are precise multi-step programming (to control the fluid dynamics and solvent evaporation) and vacuum sample retention (to hold the substrate perfectly flat and secure at high speeds).

A standard programming sequence includes three distinct phases: (1) Dispense / Spread Phase (Low RPM): The substrate spins slowly (e.g., 100 to 500 RPM) while the liquid is dispensed. This spreads the fluid evenly across the surface without flinging it off. (2) Spin / Thinning Phase (High RPM): The motor accelerates rapidly to the target coating speed (e.g., 2,000 to 6,000 RPM). This high-speed stage drives the fluid outward via centrifugal force, establishing the baseline film thickness. (3) Drying Phase (Sustained RPM): The rotation is held constant while the solvent evaporates. Programmable ramp speeds (the acceleration/deceleration rates measured in RPM/sec) are critical here; ramp speeds that are too fast or too slow can introduce "edge beads" or radial ripples in the dry film.

Part Number	ESLEPSCVC (ESL-EPSC-VC)
Power	AC110-220V±10% (24V adaptor), single phase, 50/60Hz, 80 W Ar-filled glovebox compatible
Chamber & Chuck Features	Chamber Materials: NPP (resistant to acids, bases, salts, and oxidants) Vacuum Chunk Material: PTFE (Teflon) Vacuum Chunk Size: 4" (standard version included). Other customized options in 10-150 mm can be supplied upon request. 4" 6" 3" 2" 1"
Rotation Speed & Time	300-10000 rpm, adjustable Rotation Stability: ± 0.1% (Servo motor, 300 W) Programmable 26 segments and each segment have 51 procedures for parameter setting. Acceleration speed can be set Setting Time: 1-9999 s
Vacuum Pump (Optional)	The oilless vacuum pump (ESOVP) can be considered for vacuum suction (-0.093 MPa). The vacuum sensor is available on the spin coater to avoid sample was thrown away when vacuum level is not enough.
Certification	CE certified UL and CSA certification is available upon request at extra cost One year warranty and lifetime technical support and service.
Dimension	W260 * D350 * H260 mm
Weight	~12 kg
