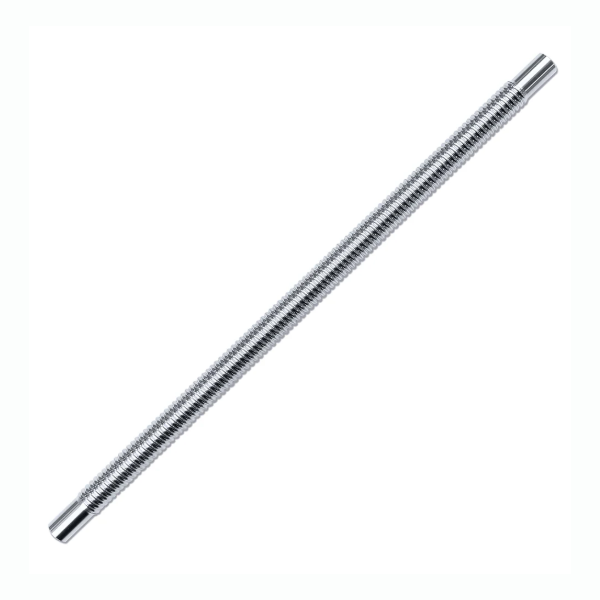

Wire Rod (W=300 mm, D=10 mm) for Roll-to-Roll Dip Coater (ESMR2RDC), ESMAWRW300
  • Wire Rod (W=300 mm, D=10 mm) for Roll-to-Roll Dip Coater (ESMR2RDC), ESMAWRW300
  • Wire Rod (W=300 mm, D=10 mm) for Roll-to-Roll Dip Coater (ESMR2RDC), ESMAWRW300
Wire Rod (W=300 mm, D=10 mm) for Roll-to-Roll Dip Coater (ESMR2RDC), ESMAWRW300

Wire Rod (W=300 mm, D=10 mm) for Roll-to-Roll Dip Coater (ESMR2RDC), ESMAWRW300

$299.00 USD
In Stock SKU: ESMAWRW300G6
Use your own shipping account?

We support FedEx, UPS, and DHL third-party billing for institutional customers.

Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.

Review third-party shipping terms →

Wire Rod (or Mayer Rod) is a popular alternative to the doctor blade, especially when you need to coat thin, high-uniformity films on flexible substrates like battery foils or membranes. While a doctor blade relies on a mechanical gap, the wire rod uses the grooves between tightly wound stainless steel wires to meter the amount of slurry that passes through.

The wire rod with coating width of 300 mm is specially designed as accessories for the multifunctional tap casting coater (ESMR2RDC)

Part Number
  • ESMAWRW300 (ESM-A-WRW300)
Effective Coating Width
  • Wire Rod: 300 um,
  • Diameter: 10 mm
  • SS304 material (SS316 can be supplied upon request)
Wire Groove Sizes
  • 6 um, 8 um, 10 um, 12 um, 15 um, 20 um, 25 um, 30 um, 40 um, 50 um, 60 um, 80 um, 100 um, 150 um, and 200 um
Note
  • It is an accessory for the roll-to-roll dip coater (ESMR2RDC)



References:

A. M. Kannan, et al., Wire rod coating process of gas diffusion layers fabrication for proton exchange membrane fuel cells, J. Power Sources, 2008, 178, 231-237

L. Zeng, et al., Integrated Paper-Based Flexible Li-Ion Batteries Made by a Rod Coating Method, ACS Appl. Mater. Interfaces 2019, 11, 50, 46776–46782
