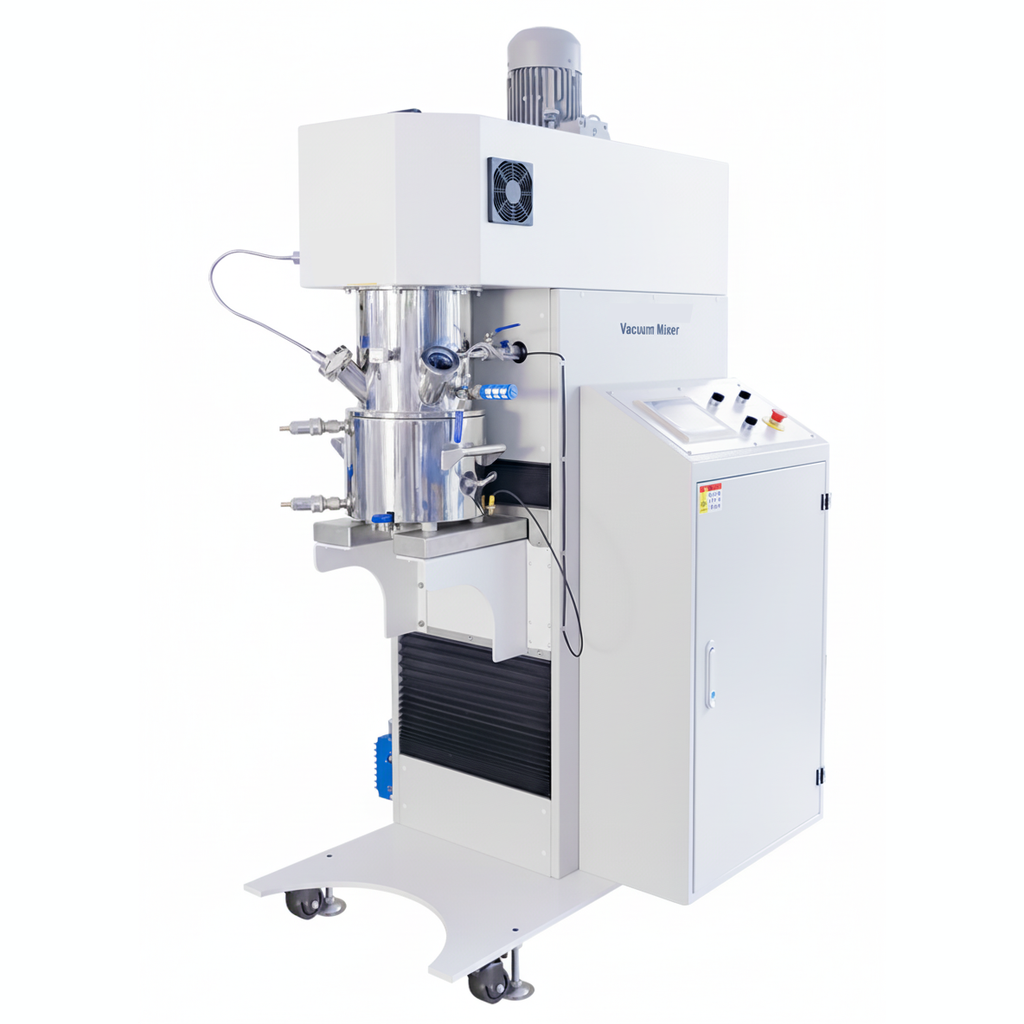

A four-shaft planetary vacuum mixer—specifically configured with two mixing (stirring) shafts and two dispersing shafts—is the gold standard for achieving sub-micron particle distribution and bubble-free homogeneity. In this setup, the mixing shafts handle the bulk movement and "folding" of the paste, while the high-speed dispersing shafts provide the intense shear required to break down conductive additive agglomerates (like CNTs or Carbon Black).

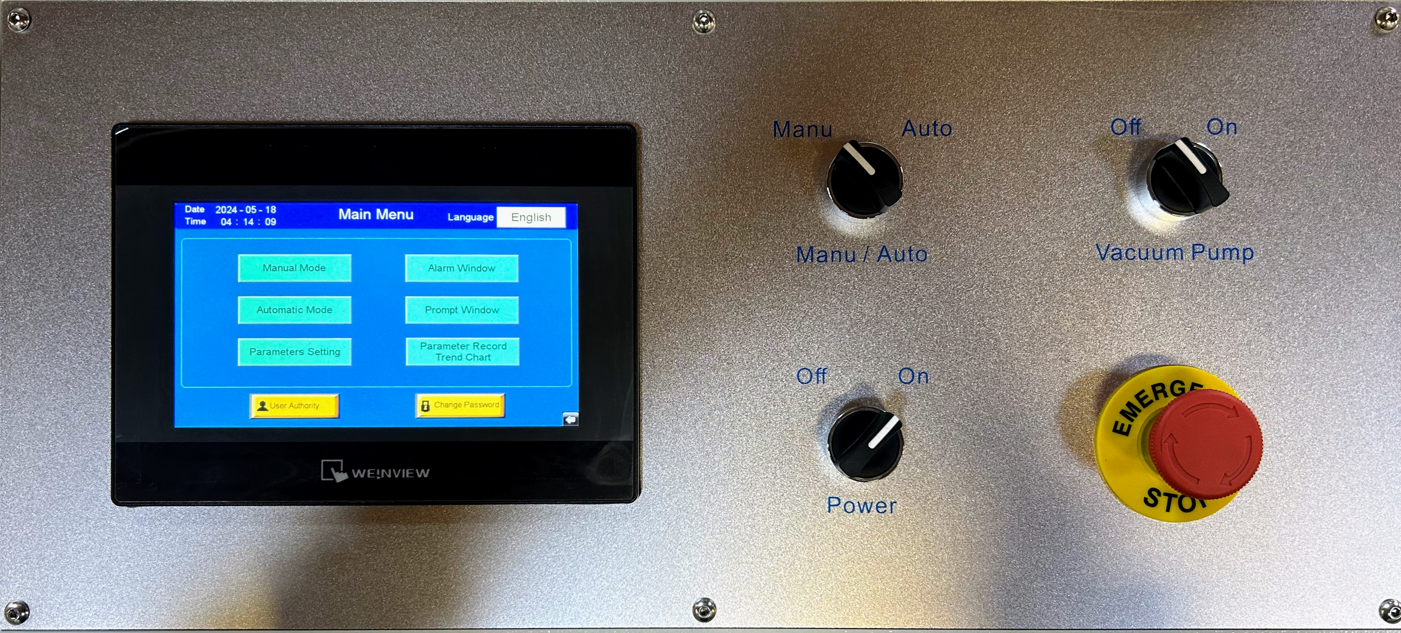

It is a precise laboratory unit designed for complex slurry preparation. It utilizes a rotation + revolution method where all four shafts revolve around the tank while spinning on their own axes, ensuring zero "dead zones." (1) Dispersion Power: Two high-speed shafts reaching 0–3800 RPM for aggressive particle size reduction. (2) Stirring Efficiency: Two low-speed twist blades (2–112 RPM) move the bulk material from the walls to the dispersers. (3) Integrated Cooling: Includes a 9L water chiller to counteract the heat generated by the high-speed shafts, protecting sensitive binders like PVDF. (4) Safety: PLC control with an observation window to monitor slurry consistency in real-time
| Part Number |
|
|
|
| Power |
- AC220V±10%, single phase, 50/60Hz, ~3000 W
|
- AC220V±10%, single phase, 50/60Hz, ~5000 W
|
- AC220V±10%, single phase, 50/60Hz, ~7000 W
|

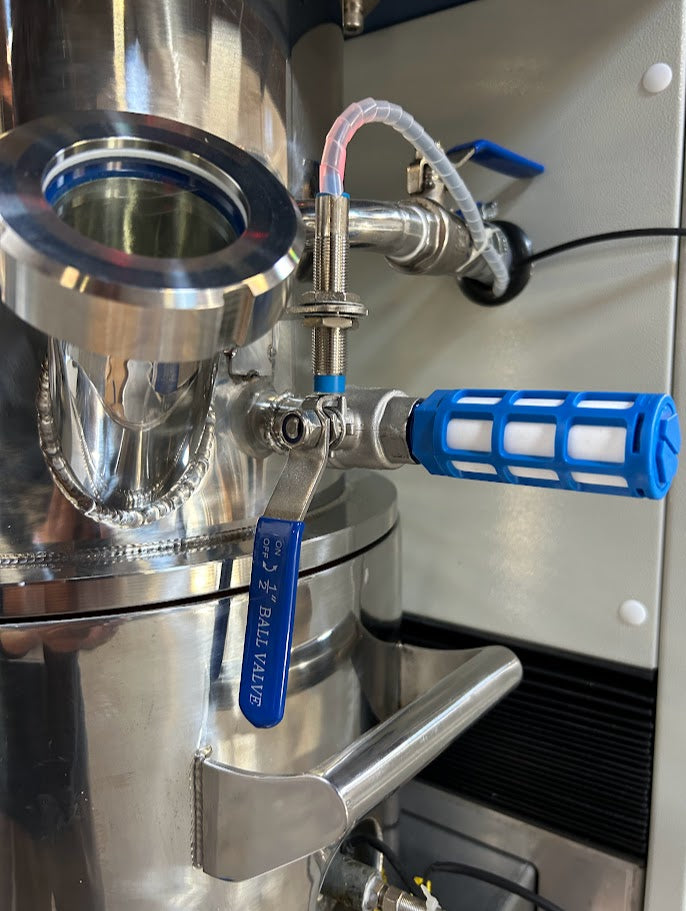

| Mixing Barrel |
- Effective Volume: ~2.0 L (design volume is 3.0 L)
- I.D. 180 mm, Depth: 130 mm
- Barrel material is SS304 (SS316 can be supplied upon request)
- Cooling jacket with water inlet and outlet are available.

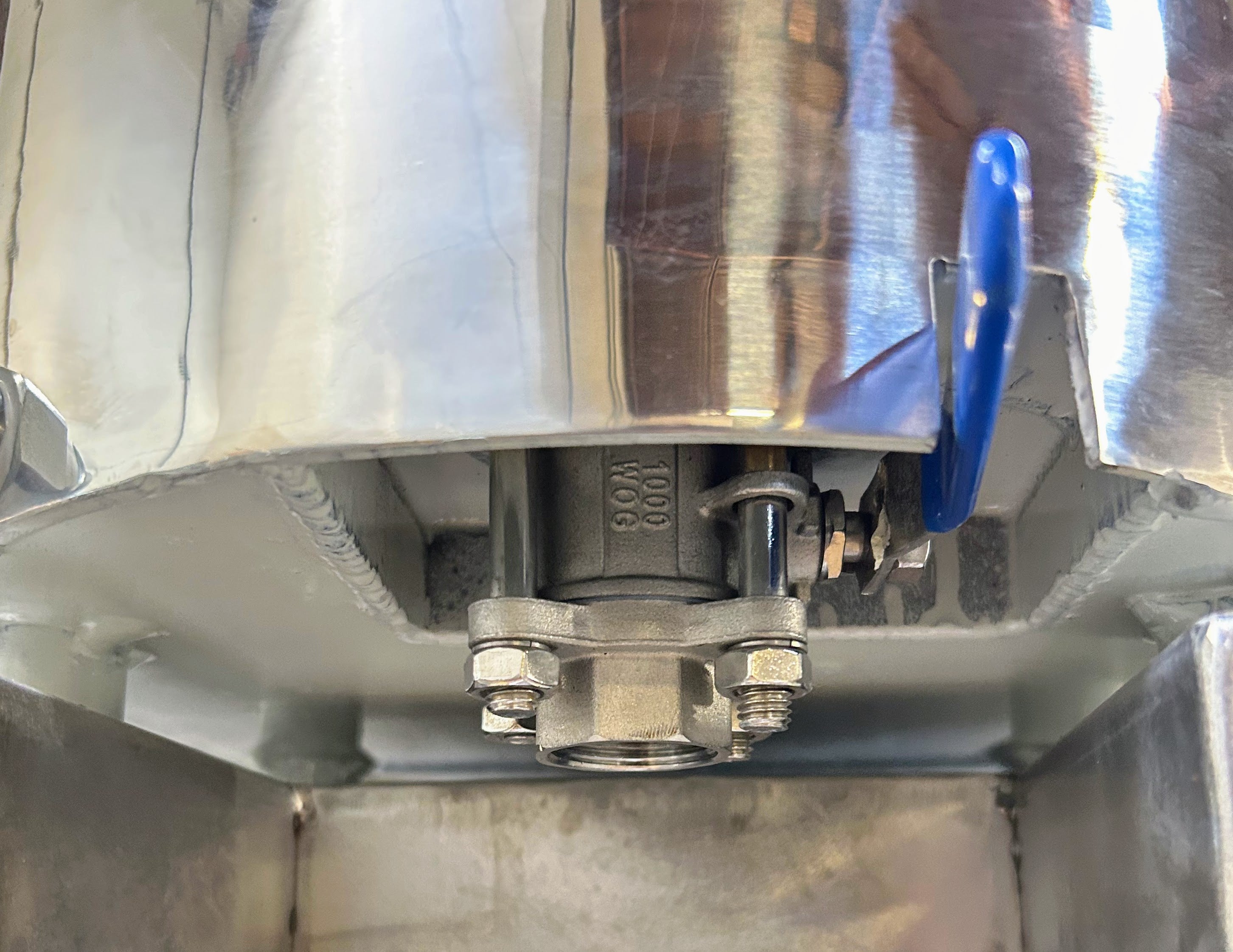

- A discharge valve is designed at the barrel bottom
|
- Effective Volume: ~5.0 L (design volume is 8.0 L)
- I.D.240 mm, Depth: 180 mm
- Barrel material is SS304 (SS316 can be supplied upon request)
- Cooling jacket with water inlet and outlet are available.
- A discharge valve is available at the barrel bottom
|
- Effective Volume: ~10 L (design volume is 12 L)
- I.D. 310 mm, Depth: 220 mm
- Barrel material is SS304 (SS316 can be supplied upon request)
- Cooling jacket with water inlet and outlet are available.
- A discharge valve is available at the barrel bottom
|
| Mixing Part |

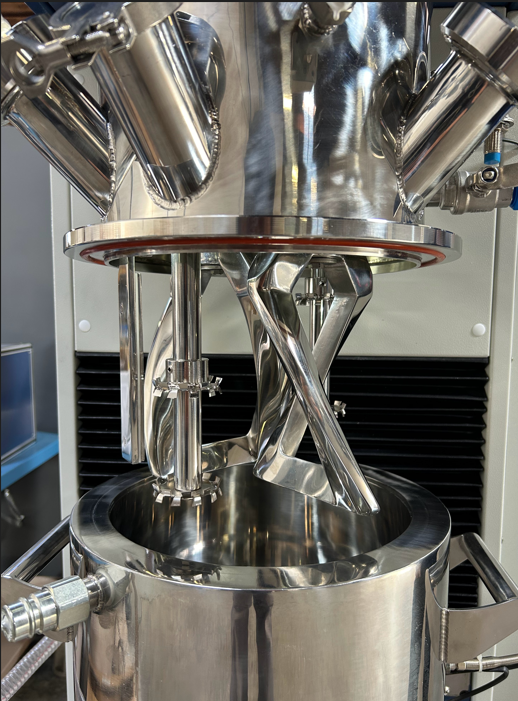

- Maxing blade (2 pcs): SS304, Spiral twist type, 90° helix
- Mixing blade speed: 2-112 rpm (suggested lower limit speed as 5 rpm)
|
- Maxing blade (2 pcs): SS304, Spiral twist type, 90° helix
- Mixing blade speed:2-112 rpm (suggested lower limit speed as 5 rpm)
|
- Maxing blade (2 pcs): SS304, Spiral twist type, 90° helix
- Mixing blade speed: 2-110 rpm (suggested lower limit speed as 5 rpm)
|
|
Dispersing Part
|
- Dispersing blade (1 pcs): SS304
- Dispersing rotation speed: 100-3800 rpm
|
- Dispersing blade (1 pcs): SS304
- Dispersing rotation speed: 100-6900 rpm
|
- Dispersing blade (1 pcs): SS304
- Dispersing rotation speed: 100-6000 rpm
|
|
Spatula
|
- 1 pcs of spatula was used to scratch the high viscosity slurry near the barrel wall and improve the mixing homogeneity.
|
- 1 pcs of spatula was used to scratch the high viscosity slurry near the barrel wall and improve the mixing homogeneity.
|
- 1 pcs of spatula was used to scratch the high viscosity slurry near the barrel wall and improve the mixing homogeneity.
|
|
Slurry Viscosity
|
|
|
|
| Vacuum Pump |
- Built-in single-stage vacuum pump
- Vacuum Level: -0.08 MPa
|
- Built-in single-stage vacuum pump
- Vacuum Level: -0.08 MPa
|
- Built-in single-stage vacuum pump
- Vacuum Level: -0.08 MPa
|
| Certification |
- CE certified
- UL and CSA certification is available upon request at extra cost
|
- CE certified
- UL and CSA certification is available upon request at extra cost
|
- CE certified
- UL and CSA certification is available upon request at extra cost
|
| Dimension |
|
|
|
| Weight |
|
|
|
References:
D. Grießl, et al., Effect of the Slurry Mixing Process on the Structural Properties of the Anode and the Resulting Fast-Charging Performance of the Lithium-Ion Battery Cell, J. Electrochem. Soc., 2022, 169, 020531
V. Wenzel, et al., Challenges in Lithium-Ion-Battery Slurry Preparation and Potential of Modifying Electrode Structures by Different Mixing Processes, Energy Technology, 2015, 3, 692-698
