Mechanochemistry turns a ball mill into a synthesis reactor. Instead of dissolving precursors and waiting hours for diffusion in a furnace, you load powders into a sealed jar with grinding media and let repeated high-energy impacts drive the reaction directly in the solid state. For battery and solid-electrolyte researchers, this is the workhorse route to sulfide superionics, halide conductors, and fluorinated polyanion cathodes that decompose before they melt — and increasingly the preferred path to nanostructured composite electrodes where intimate active-material / conductive-additive contact matters.
The equipment in this collection is built around planetary ball milling, the dominant format for laboratory mechanochemistry. Jars sit on a sun wheel and counter-rotate; centrifugal force pins the media to the wall until it detaches, crosses the jar, and impacts the opposite wall, transferring kinetic energy into the powder bed as a mix of impact and shear.
-

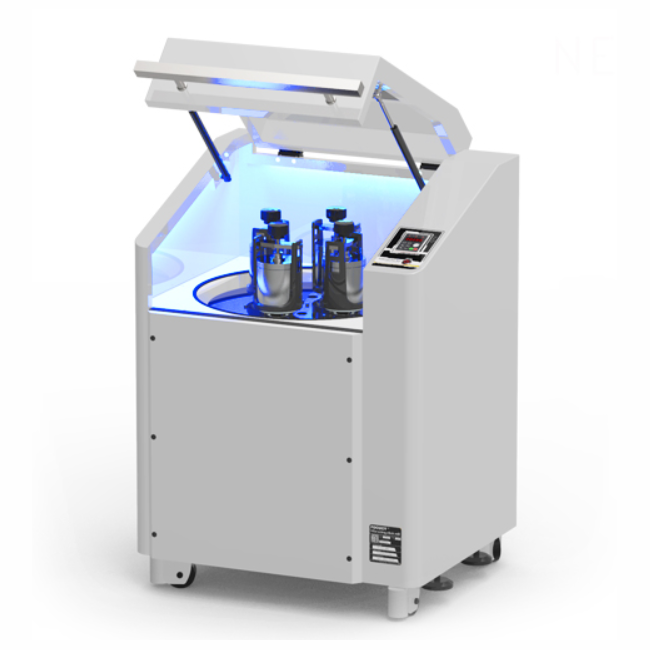

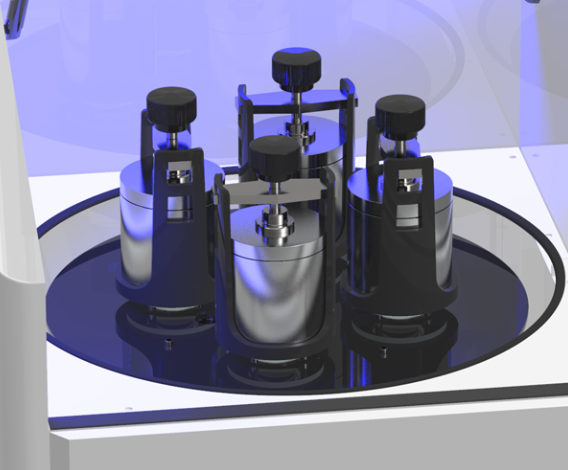

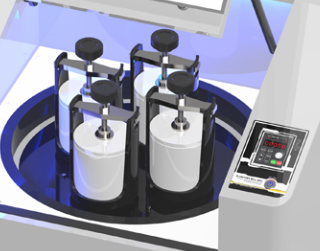

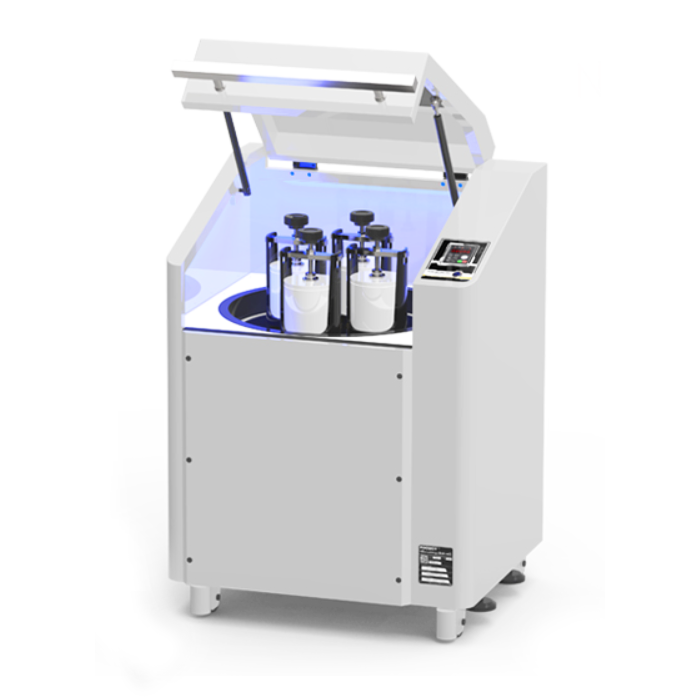

High-speed planetary mills (around 1000-1200 rpm) deliver the impact energies needed for mechanical alloying, amorphization, and nano-scale particle size reduction of hard ceramics and oxides.
-

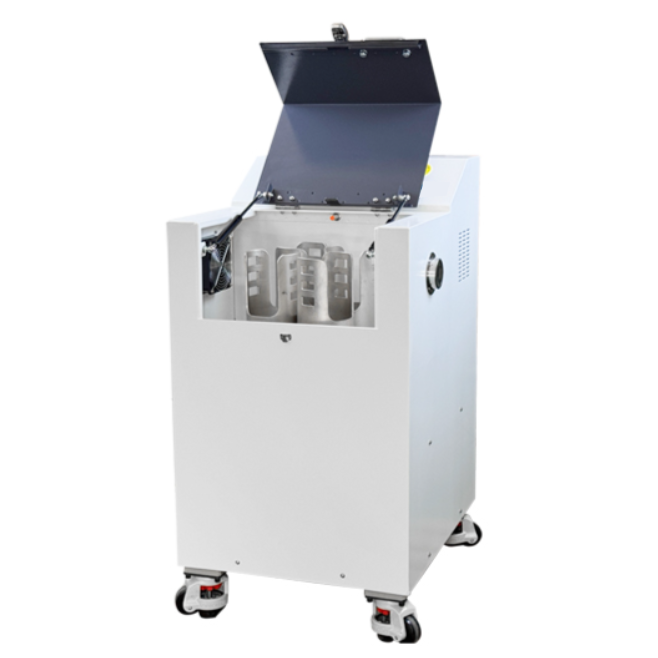

Adjustable speed-ratio mills decouple the sun-wheel revolution from the jar rotation so you can tune the impact-versus-shear balance independently — useful when a fixed gear ratio overheats heat-sensitive sulfide glasses or under-mills tougher oxides.
-

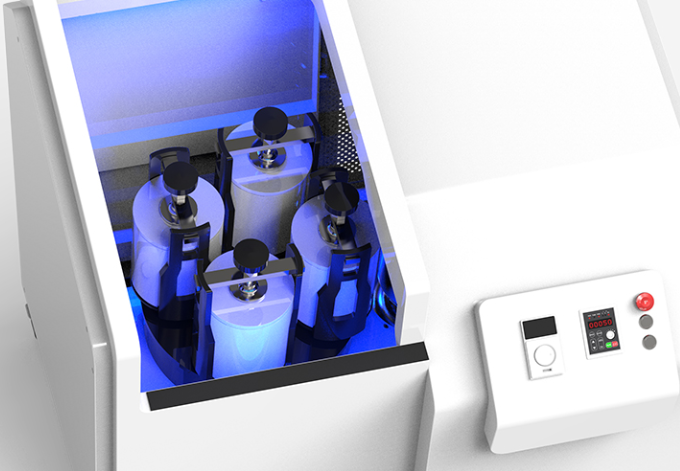

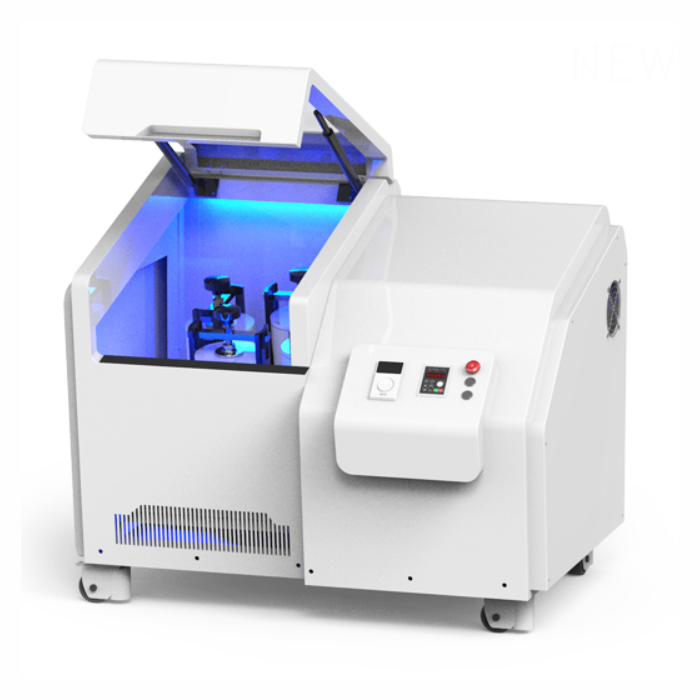

Three-dimensional (3D) planetary mills add a tilting or swing axis on top of the planetary motion, breaking the caking pattern that pins material to the jar wall and improving homogeneity for viscous slurries and sticky composites.
-

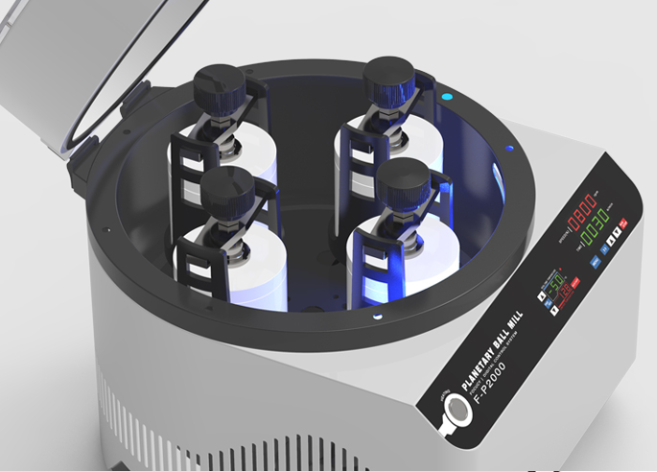

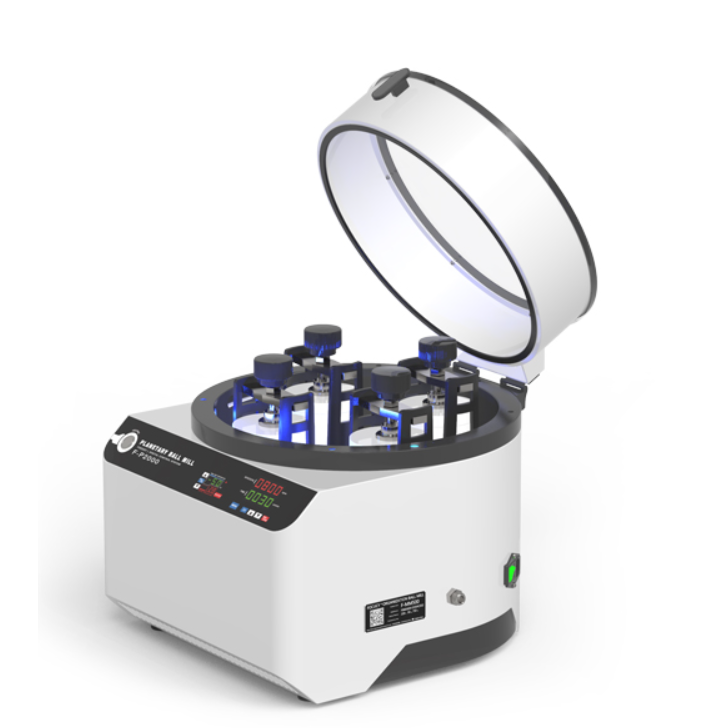

Mini and glovebox-compatible mills shrink the footprint so the same kinematics fit inside an Ar-filled glovebox, which is the operating mode for air-sensitive Li-S, Na-ion, and sulfide solid-electrolyte work.
-

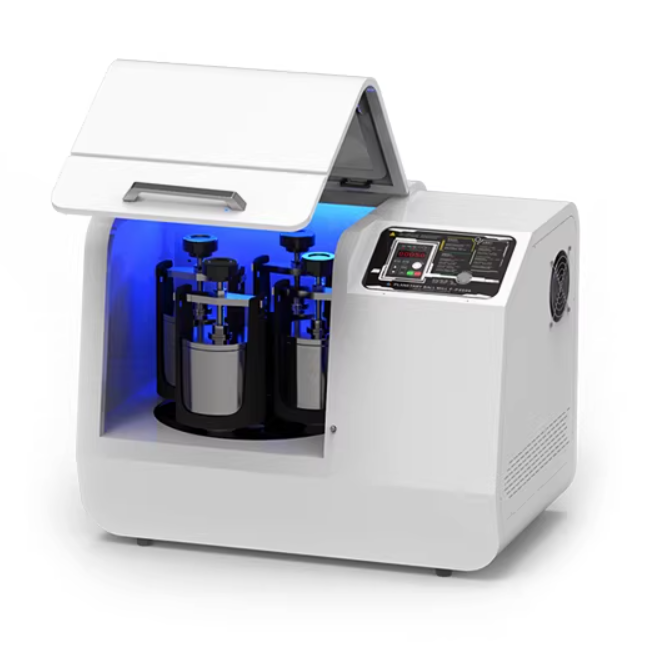

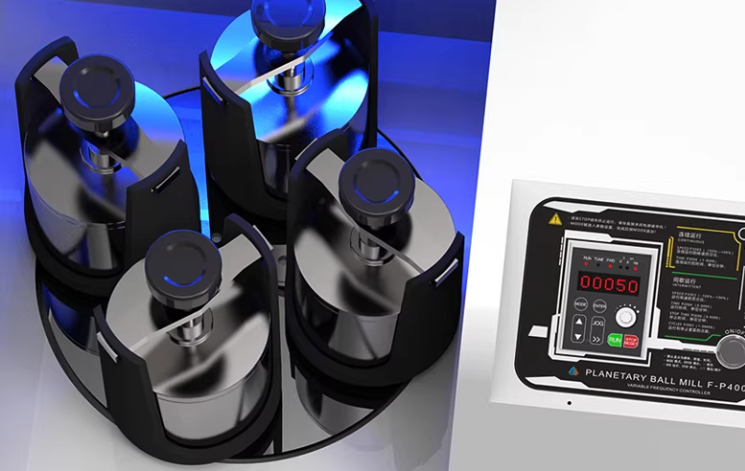

Larger 4 x 1 L and 4 x 3 L jar formats scale a validated recipe up from screening grams to the tens or hundreds of grams needed for pouch-cell and pilot-line builds without changing the milling principle.
Choose jar and media chemistry to match your powder: zirconia is the default for hard oxide and sulfide work; stainless steel is acceptable when iron contamination is tolerable; agate suits soft phases and trace-metal-sensitive electrochemistry. If you are mechanochemically synthesizing a sulfide solid electrolyte such as Li6PS5Cl or Li7P3S11, start with a glovebox-compatible mini high-energy unit; for nano-grinding harder oxides and garnet precursors, a high-speed 1000-1200 rpm unit is the right tool; for scale-up of a proven recipe, move to the larger-jar high-energy formats. For adjacent solid-state routes, see Solid-State Synthesis.
