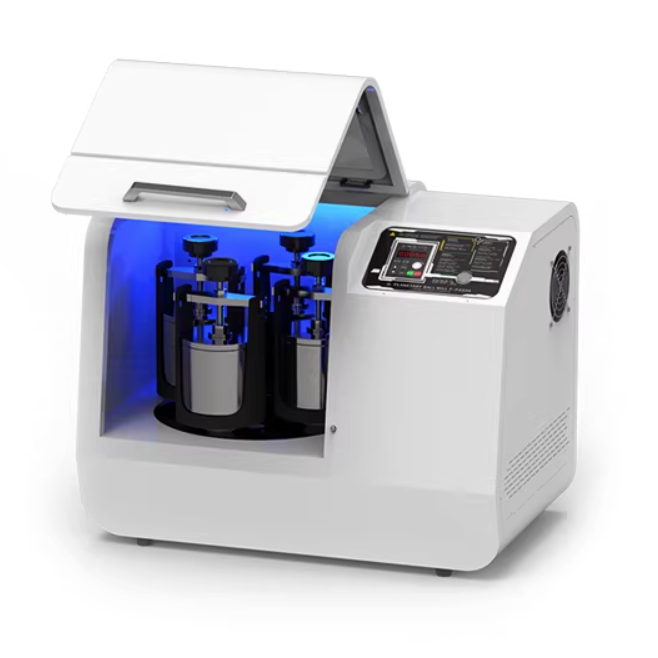

A high-energy planetary ball mill is a compact, benchtop instrument designed for rapid particle size reduction down to the nano-scale (<100 nm) and high-shear mixing. The "high-energy" designation typically refers to the ability to reach high rotational speeds (up to 1100 RPM), which generates the centrifugal forces necessary to break down resilient aggregates.

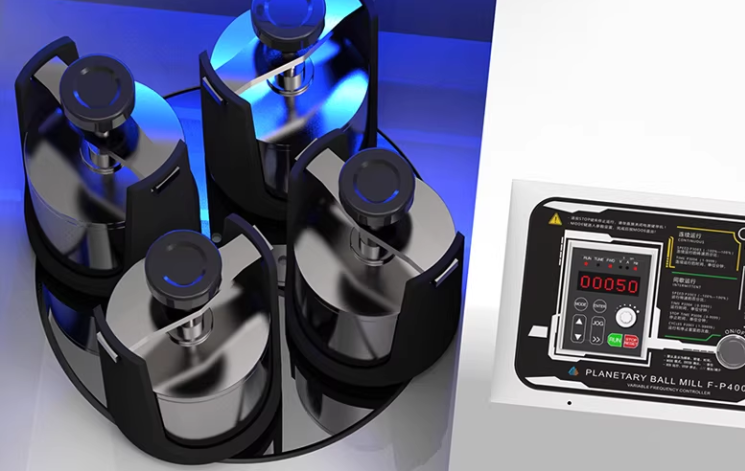

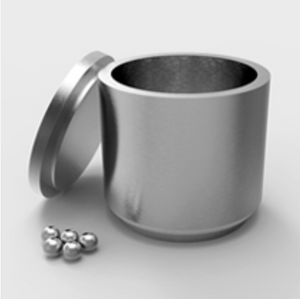

In a planetary ball mill, the grinding jars are mounted on a "sun wheel." As the sun wheel rotates, the jars rotate in the opposite direction on their own axes. (1) Energy Transfer: This counter-rotation creates a powerful interaction between centrifugal and Coriolis forces. (2) Media Motion: The grinding balls are launched across the jar (cataracting) to strike the material with high impact energy, while also rolling against the walls (cascading) to provide intensive friction and shear.

References:

L. L. Driscoll, et al., Under pressure: offering fundamental insight into structural changes on ball milling battery materials, Energy Environ. Sci., 2023,16, 5196-5209

C. Welch, et al., Modeling Analysis of Ball-Milling Process for Battery-Electrode Synthesis, Chem. Mater. 2024, 36, 14, 6748–6764

C. Wall, et al., Production of nanocrystalline lithium fluoride by planetary ball-milling, Powder Technology, 2014, 264, 409-417.
