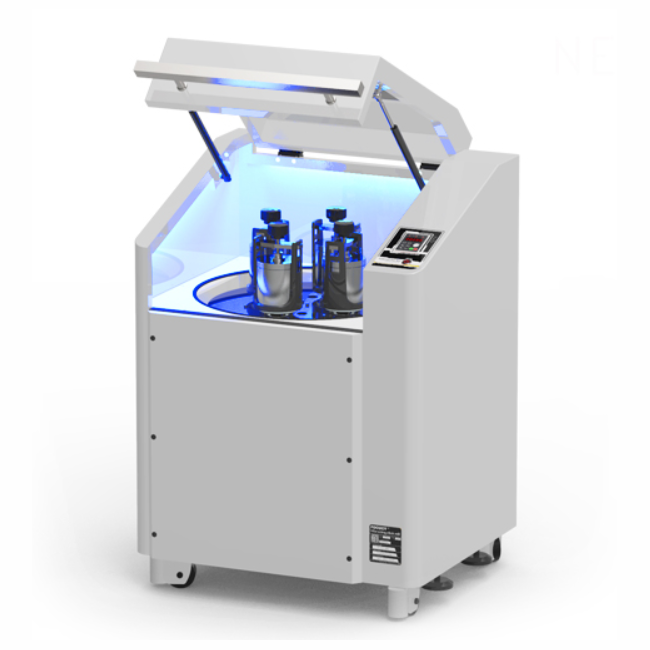

A high-speed unit typically operates between 800 and 1100 RPM, generating the massive G-forces required for nano-milling and mechanical alloying.

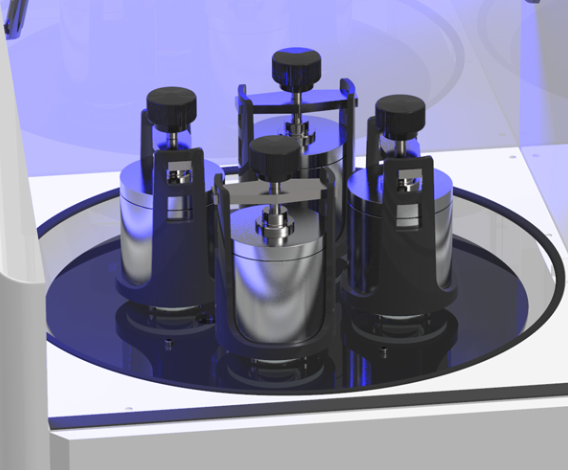

In a planetary mill, the jars rotate in the opposite direction to the sun wheel. As you increase the RPM, the energy delivered to your material increases exponentially. (1) Impact Energy: At 1000 RPM, the grinding balls (typically Zirconia) are launched with enough kinetic energy to break the primary crystal bonds of hard ceramic electrolytes like YSZ or BZCYYb. (2) Shear Intensity: The high rotational velocity creates intense friction between the balls and the jar wall. This is critical for unbundling Carbon Nanotubes (CNTs) and achieving a perfect "percolating network" in your NMP-based slurries.

References:

J. Gunamony, et al., Influence of mixing technique on properties of Li1.3Al0.3Ti1.7(PO4)3 solid electrolyte prepared by the solid-state reaction - A comparison of dry 3D mixing technique with wet ball-milling, Solid State Ionics, 2024, 410, 116528.

M. Hofer, et al., Effective mechanochemical synthesis of sulfide solid electrolyte Li3PS4 in a high energy ball mill by process investigation, Advanced Powder Technology, 2023, 34, 104004.

L. L. Driscoll, et al., Under pressure: offering fundamental insight into structural changes on ball milling battery materials, Energy Environ. Sci., 2023,16, 5196-5209

C. Wall, et al., Production of nanocrystalline lithium fluoride by planetary ball-milling, Powder Technology, 2014, 264, 409-417.
