Molten salt synthesis exploits a low-melting ionic flux as both reaction medium and mass-transport accelerator, producing crystalline oxides, sulfides, and intermetallics at temperatures hundreds of degrees below conventional solid-state firing. Because diffusion in a liquid salt is orders of magnitude faster than in packed powder, particle morphology, phase purity, and dopant distribution can be tuned in hours rather than days — which is why the route has become a workhorse for cathode precursors (NCM, LCO, spinel LMO, olivine LFP), garnet electrolytes (LLZO), MAX/MXene precursors, and high-entropy oxides.
The equipment in this collection supports the full molten-salt workflow inside a controlled atmosphere:
-
Salt selection and pre-drying. Chloride eutectics (LiCl-KCl, NaCl-KCl), carbonate fluxes (Li2CO3-K2CO3), hydroxide melts (NaOH-KOH), and sulfate or fluoride mixtures each set a different temperature window and oxygen activity. Most are hygroscopic and must be dried and handled under inert gas.
-
High-temperature reaction. Crucible furnaces and tube furnaces sized for sealed alumina, nickel, or graphite crucibles are used to hold the melt at 400-1100 C while the precursor reacts and recrystallizes.
-

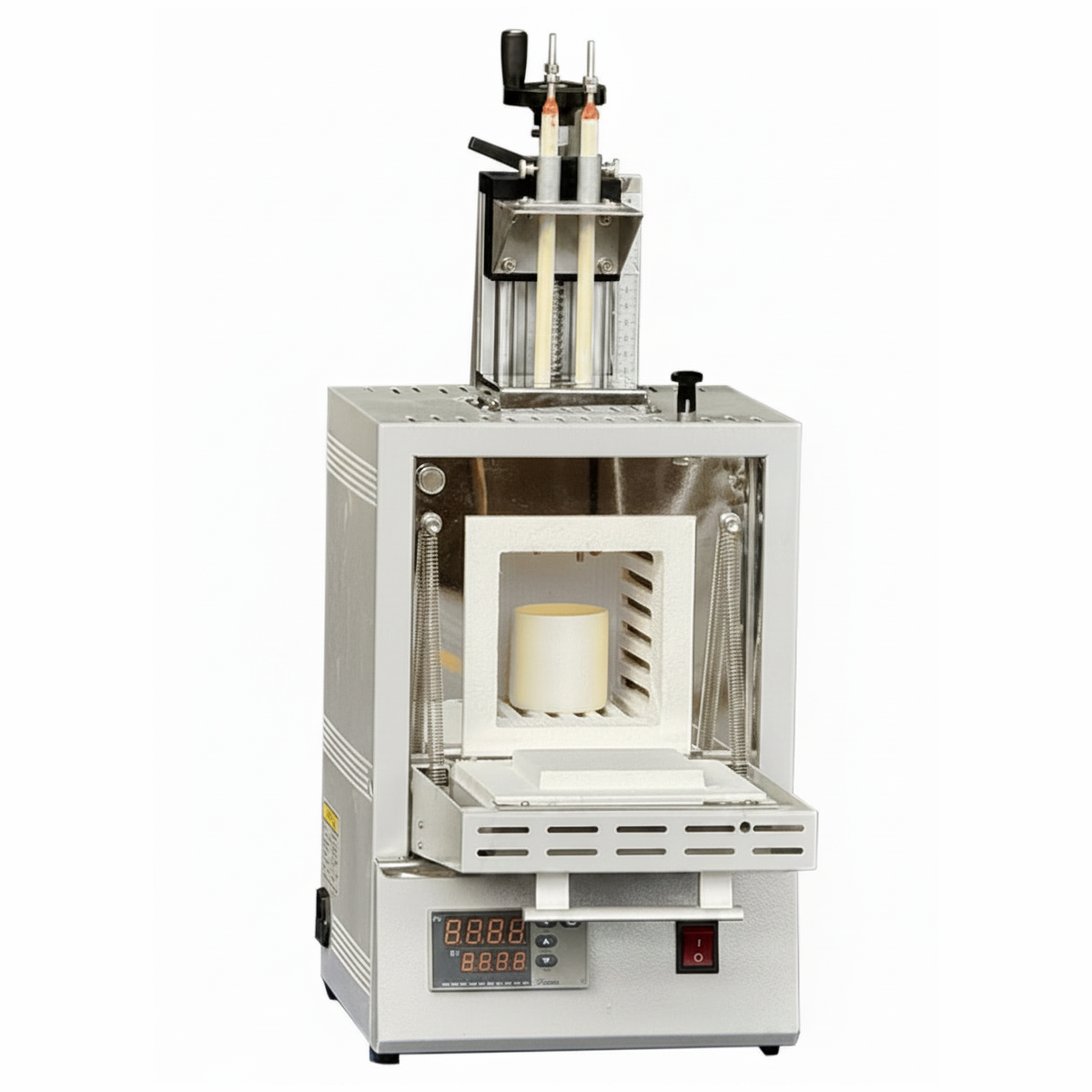

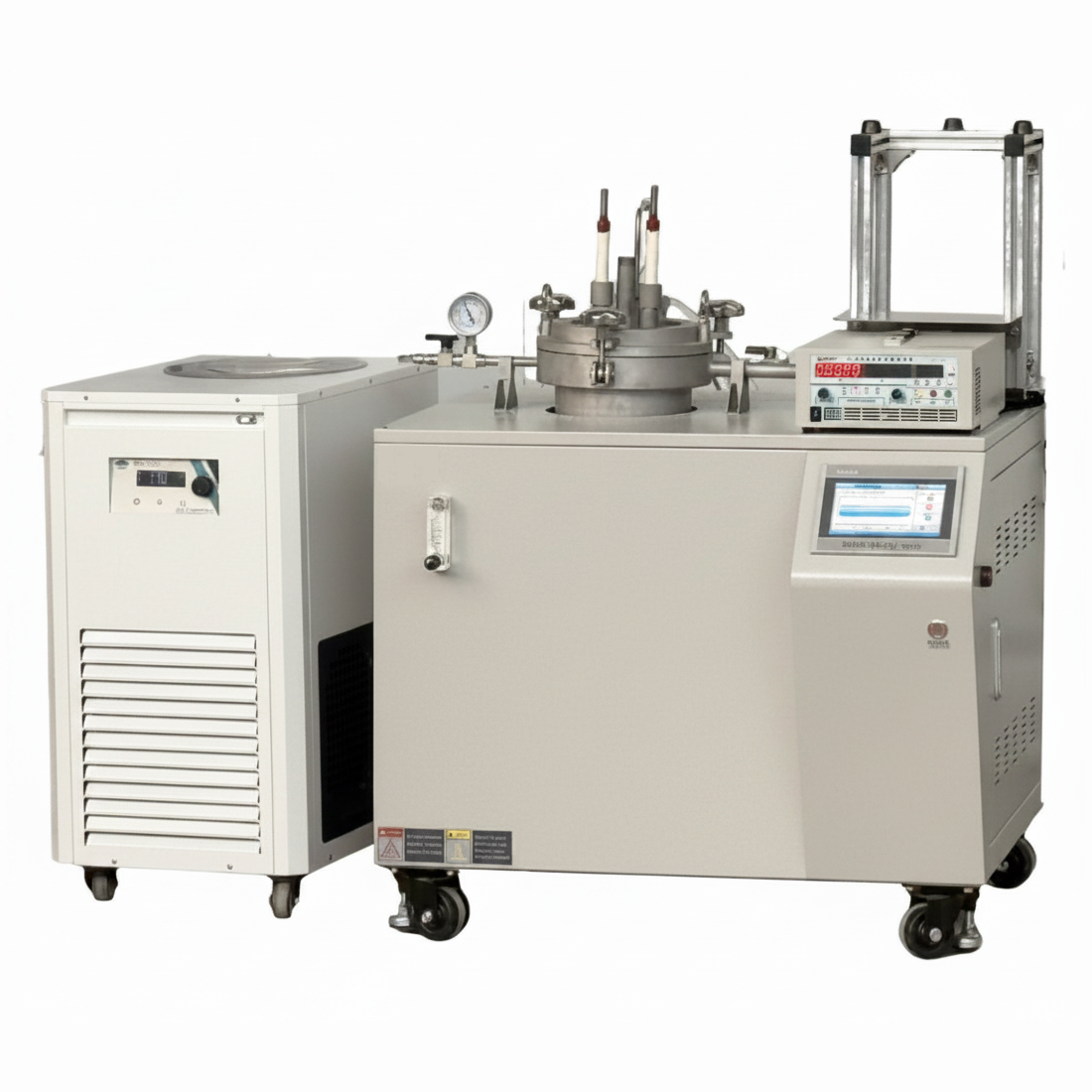

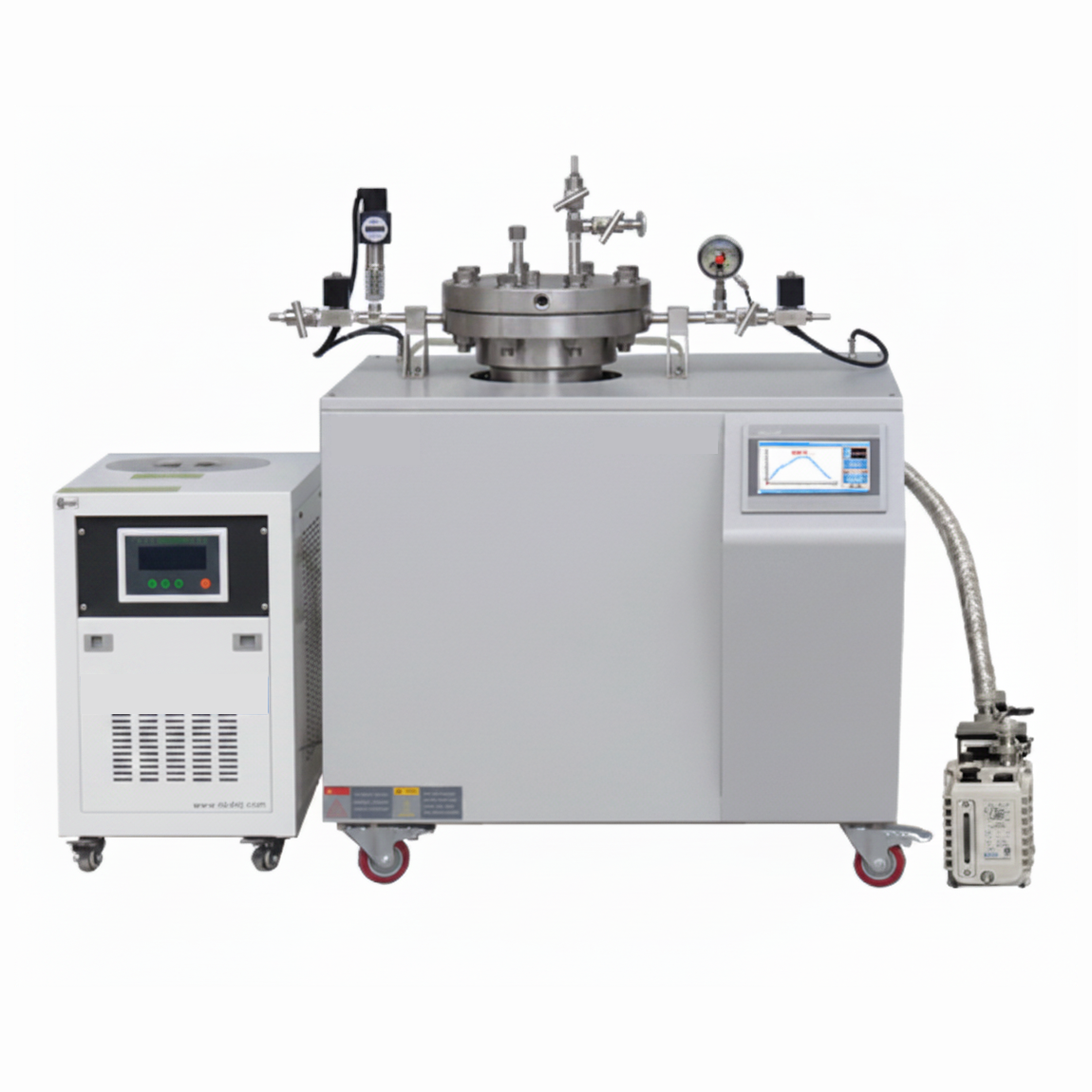

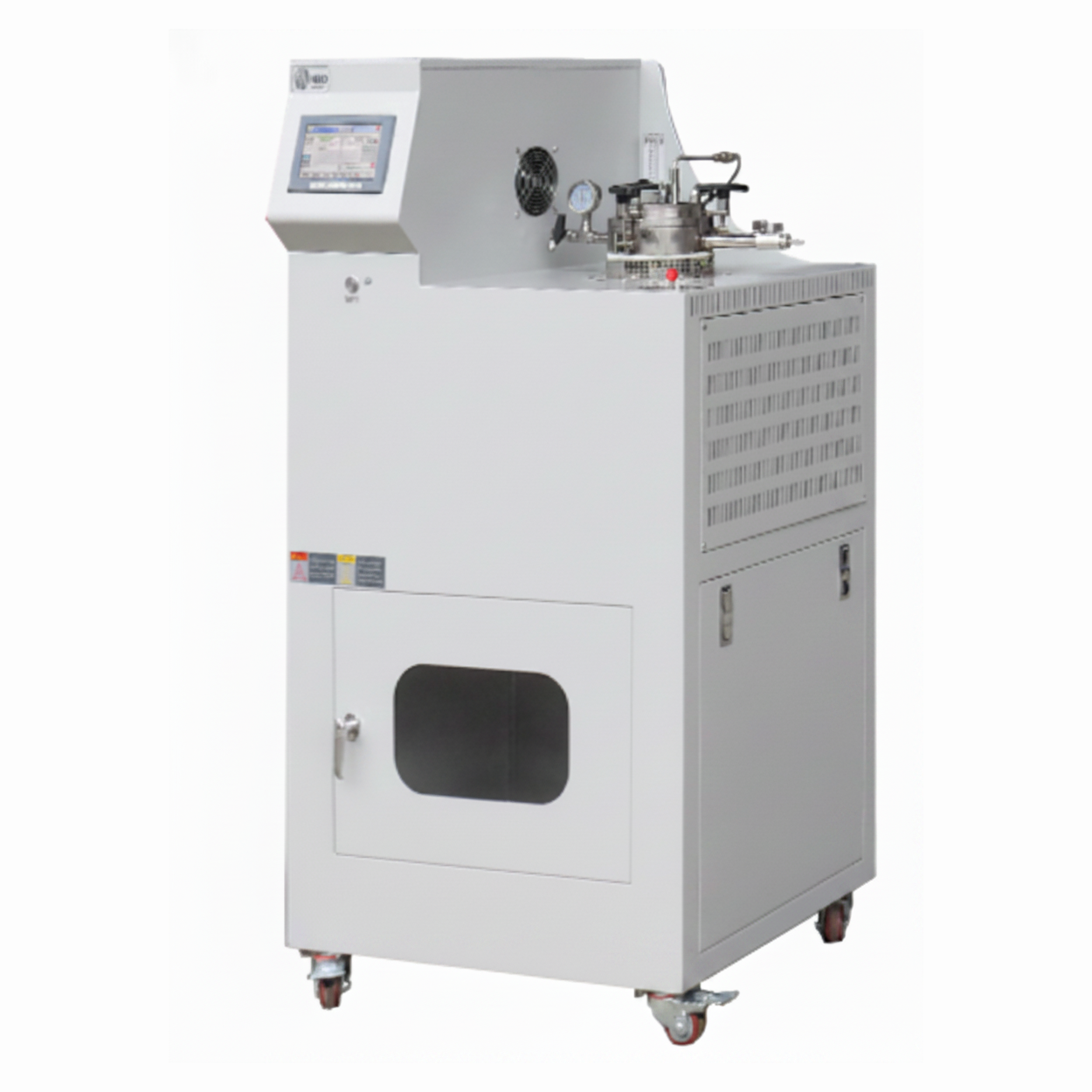

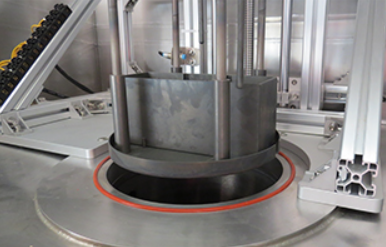

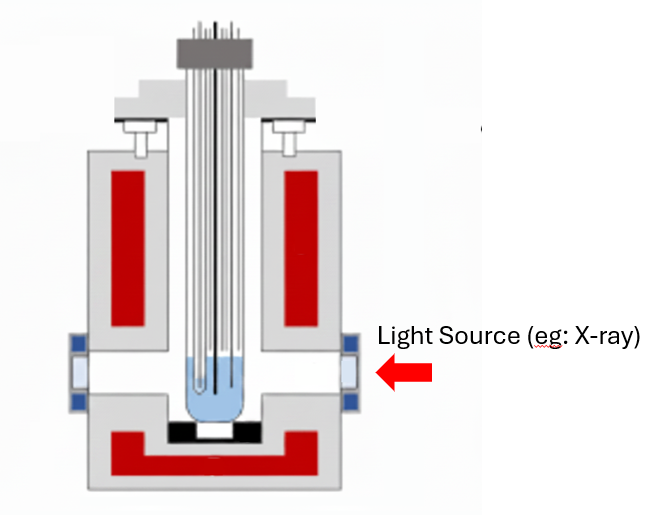

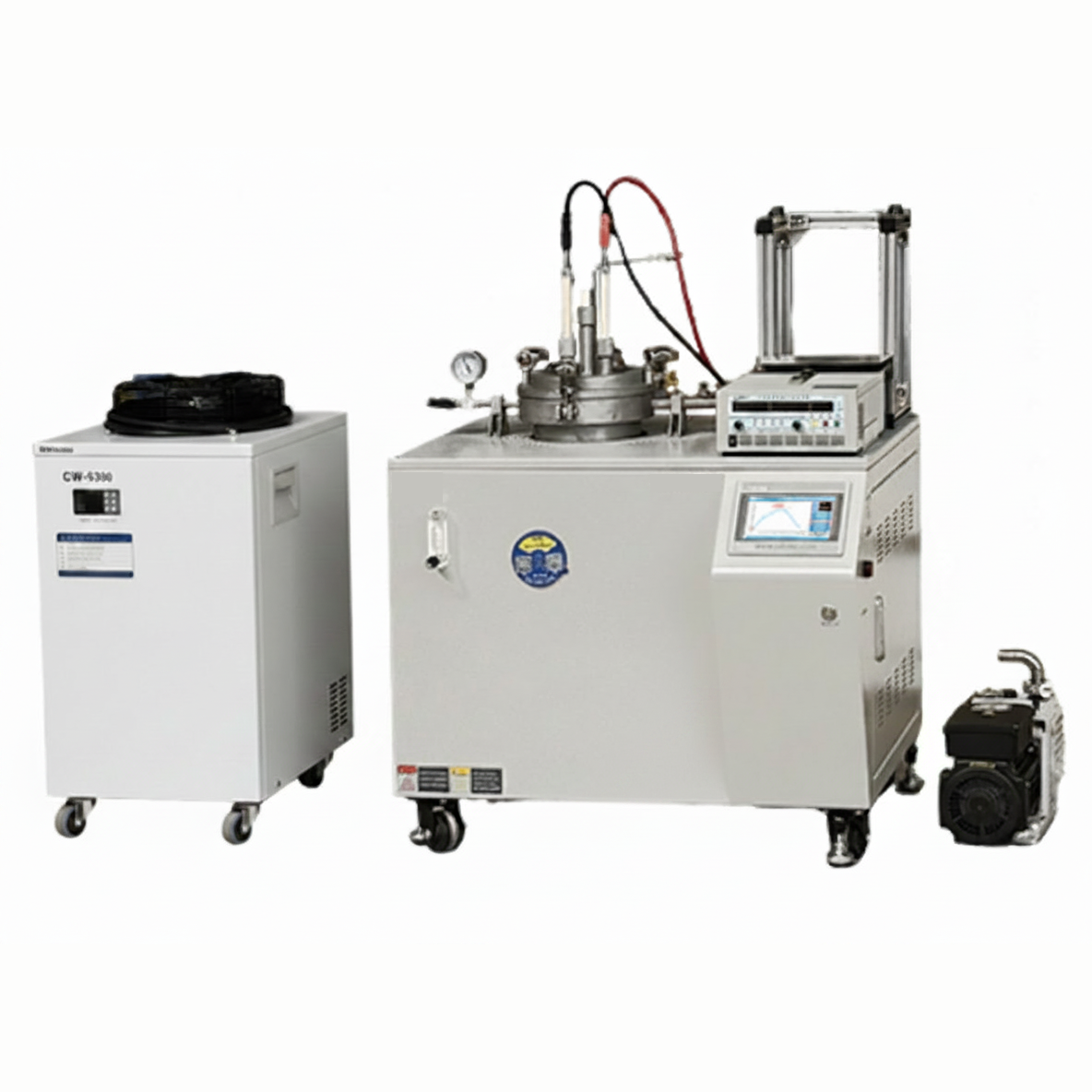

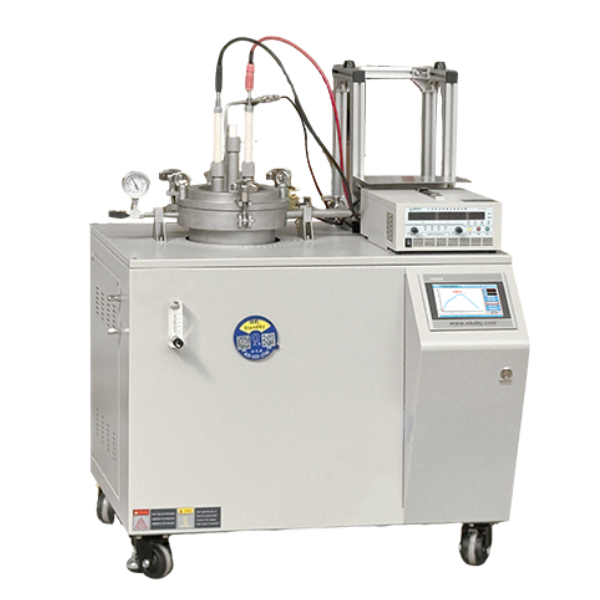

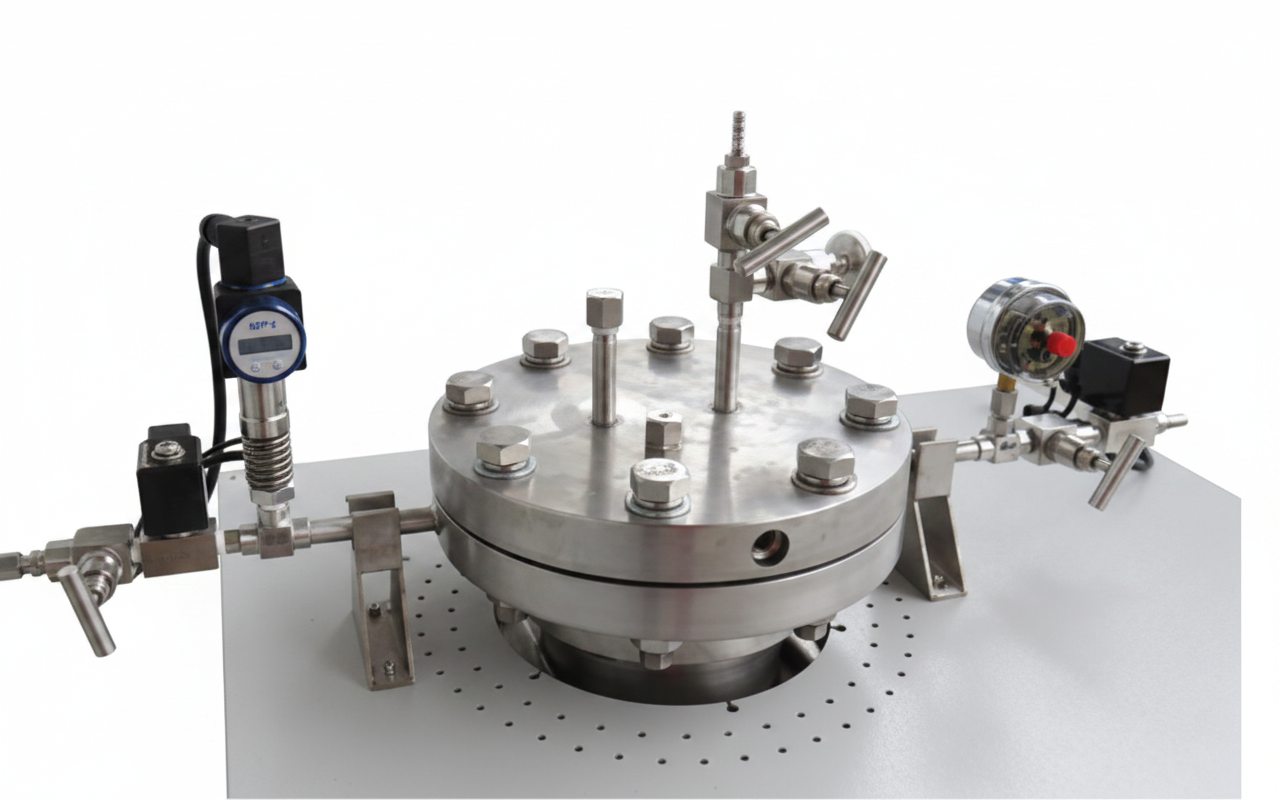

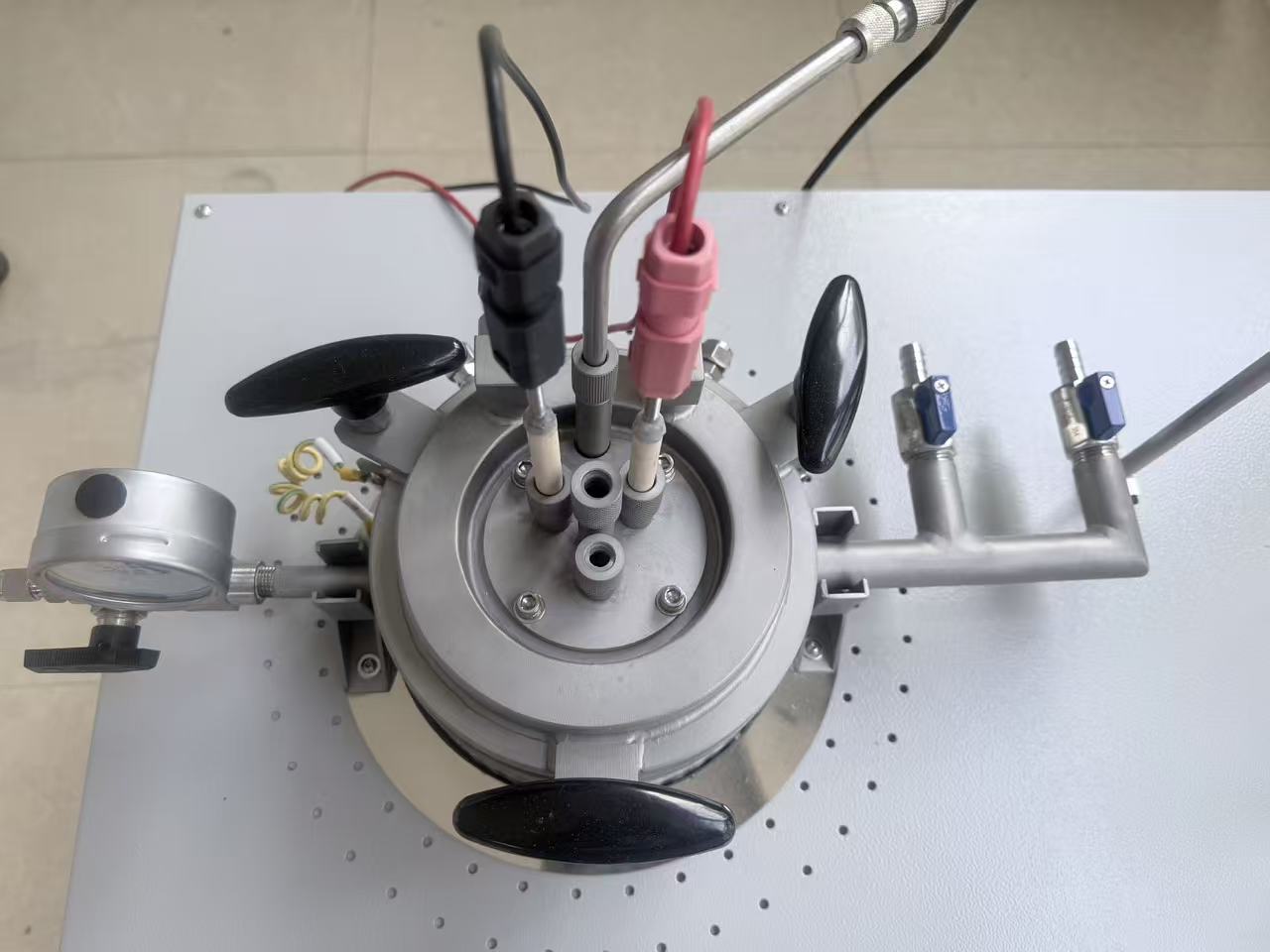

Glovebox-compatible electrolysis cells. When the goal is electrowinning a metal (Li, Mg, Al, rare earths) or templating an alloy from the melt, a sealed cell with feedthroughs for working, counter, and reference electrodes is required.
-

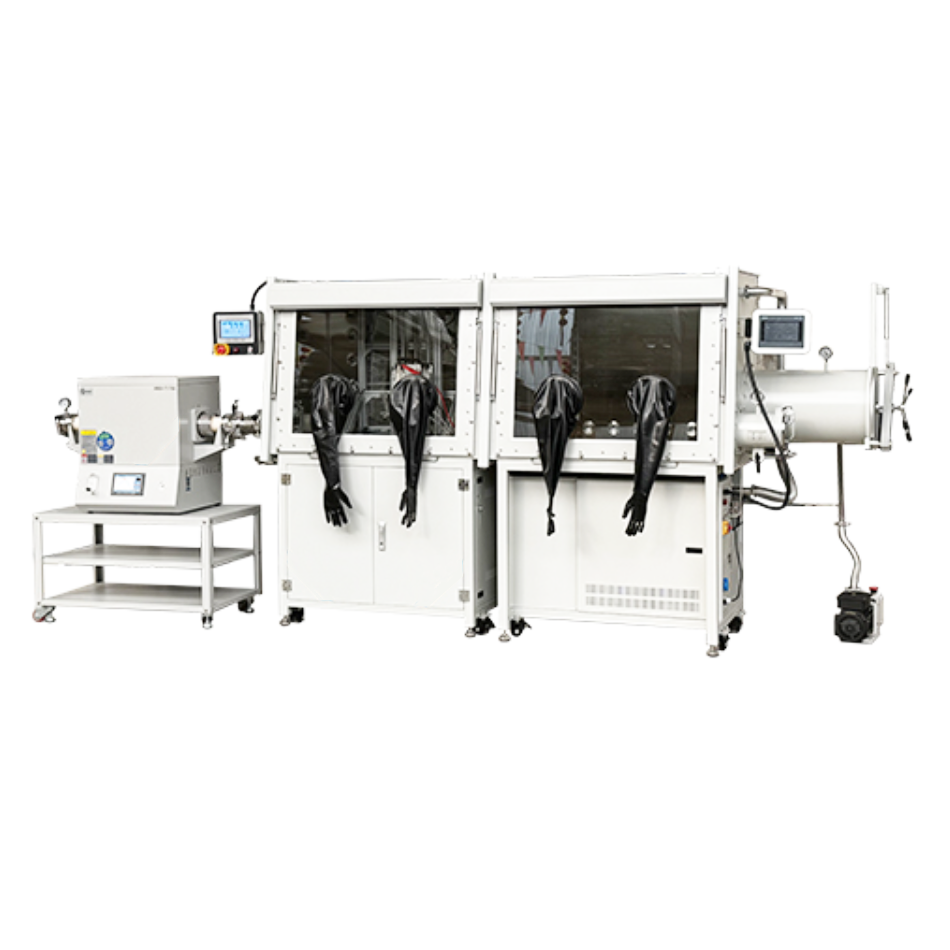

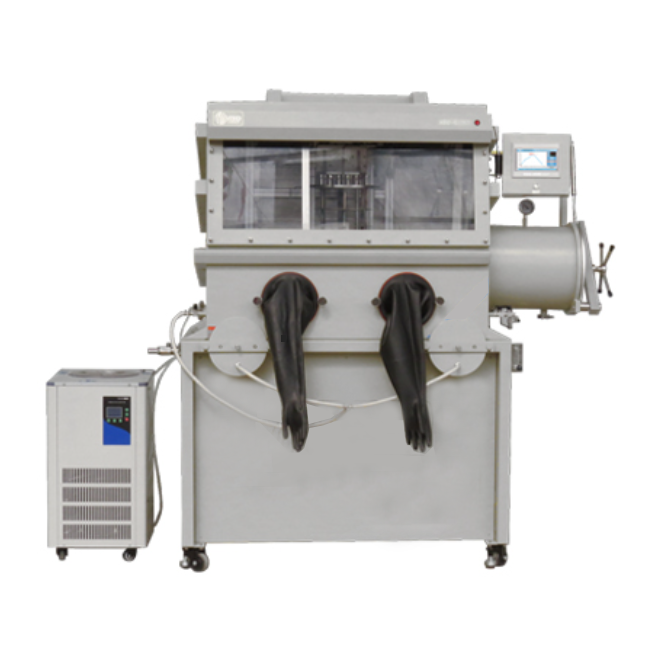

Atmosphere control and gas handling. Argon or dry-air manifolds, off-gas scrubbers for HCl/HF generated by trace moisture, and load-locks that pass the reaction vessel into a glovebox without breaking inertness.
-
Post-reaction recovery. Quenching plates, washing stations, and filtration tools used to separate the product from the residual salt before drying.
If you are screening a new cathode or solid-electrolyte composition, start with a small crucible furnace plus a chloride or carbonate flux. If you are pulling metals out of the melt electrochemically, you will need a glovebox-compatible electrolysis furnace with sealed feedthroughs. For broader context on adjacent thermal routes, see Solid State Synthesis; for the cells used to drive current through a melt, see Molten Salt Electrochemistry.
