Rolling ball mills are the workhorse of low-energy, long-duration grinding — the right choice when you need uniform particle reduction, gentle homogenization, or extended slurry mixing without the impact intensity of vibratory or planetary platforms. By placing a horizontal jar on motorized rollers, the cascading motion of grinding media inside the jar produces a steady, gravity-driven grinding action that runs for hours or days with minimal supervision.
This collection covers benchtop and floor-standing rollers used across battery slurry preparation, ceramic powder refinement, catalyst homogenization, and general-purpose laboratory milling. Compared with high-energy mills, rolling ball mills favor narrow particle-size distributions, lower contamination from media wear, and easy scale-up because the same jar geometry can run from 100 mL up to multi-litre volumes.
Choosing a configuration
-

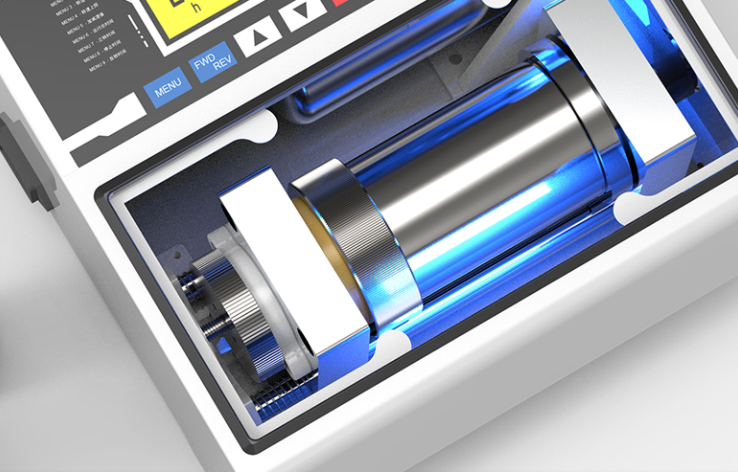

Mini single-jar rollers — compact units sized for small jars (around 100 mL). Useful for screening experiments, electrode-slurry trials, and any work where sample volume is limited.
-

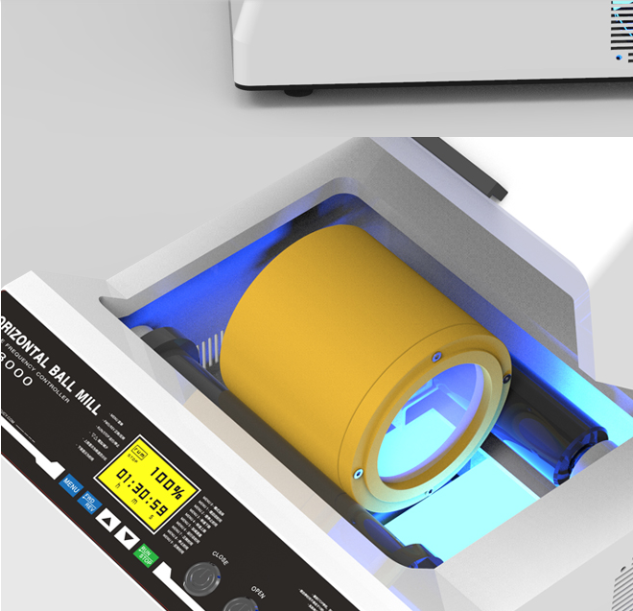

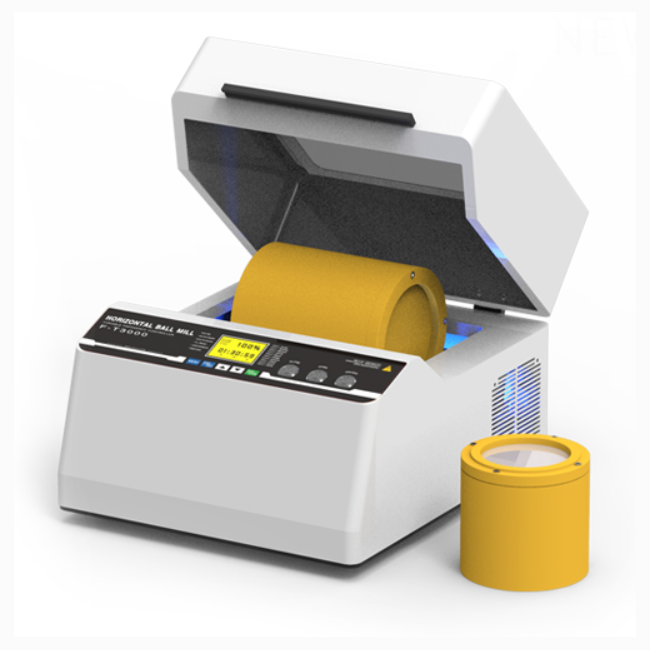

Single-jar standard rollers — one jar position with capacity up to a few litres. The default choice for routine slurry mixing and powder homogenization at lab scale.
-

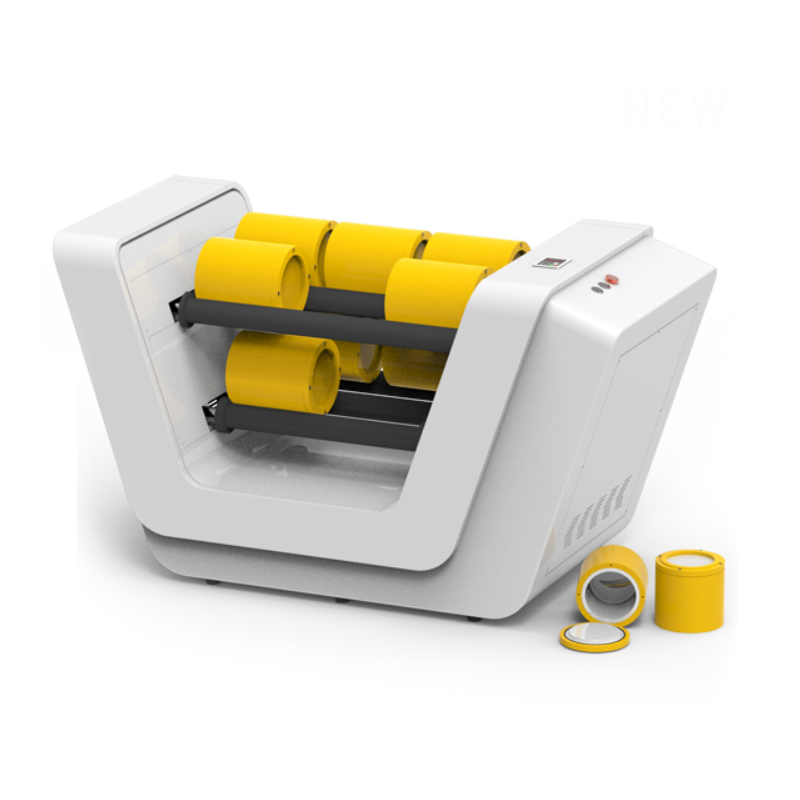

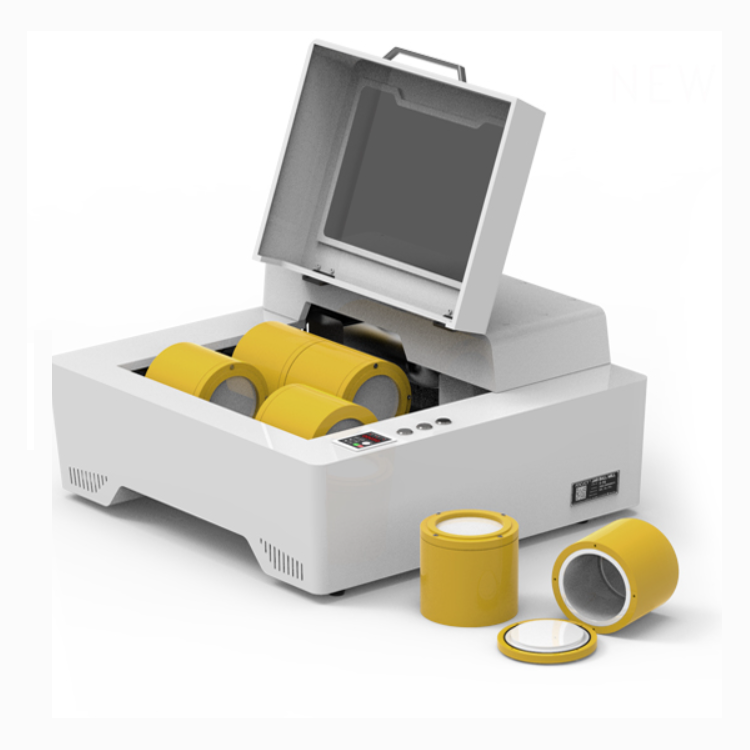

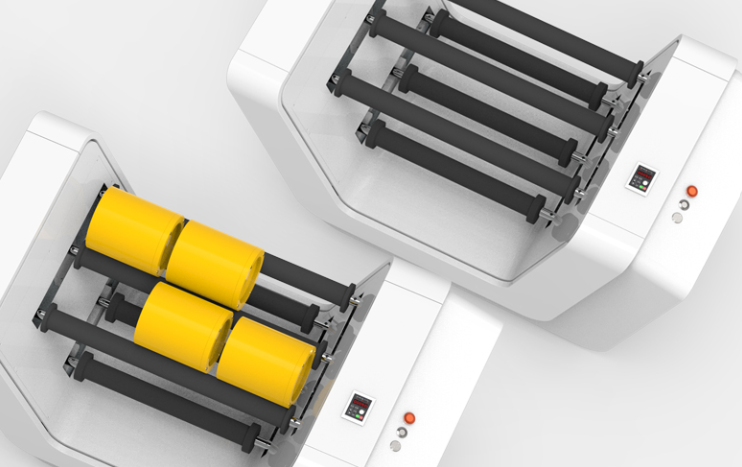

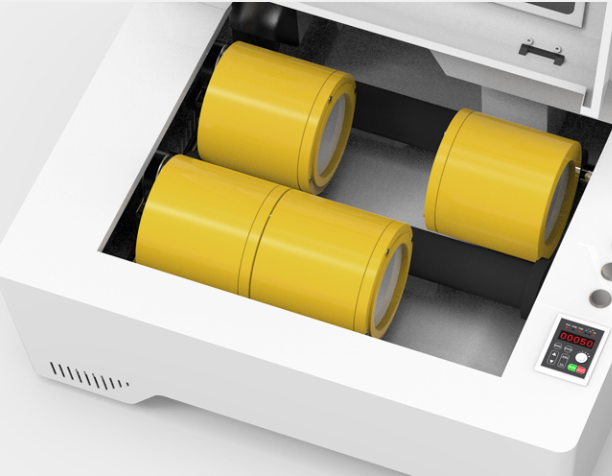

Multi-jar rollers (four or ten jars) — parallel positions for running several formulations side by side under identical mechanical conditions. The best fit for design-of-experiments work and small-batch production.
-

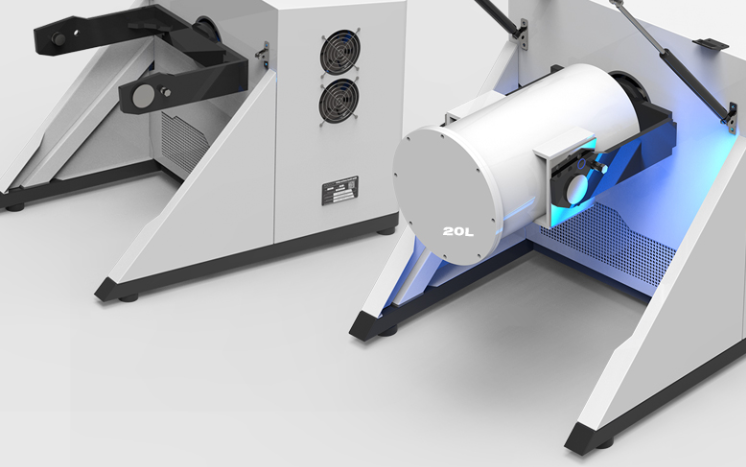

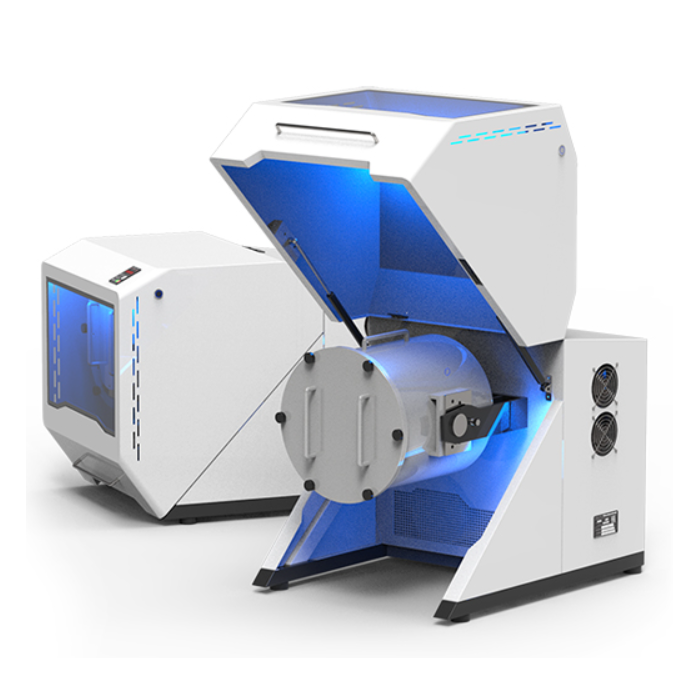

Rotating drum mills — self-contained units where the drum itself is the grinding chamber, often with internal lifter bars to assist media cascade. Suited to larger continuous or batch loads at the upper end of laboratory and pilot-line scale.
Practical notes
Rolling ball mills are jar-agnostic: jar material (alumina, zirconia, agate, stainless steel, PTFE-lined) and grinding media are selected to match the chemistry being processed and the contamination tolerance of the downstream step. Roller speed and jar diameter together set the cascade regime — too slow and the media slide, too fast and they centrifuge against the wall instead of falling.
If you need higher impact energy for hard ceramics or mechanochemical synthesis, see planetary ball mills or vibratory ball mills. For the broader category, return to ball mills or mixers and mills.
