Planetary Ball Mills

Planetary ball mills are the workhorse of mechanochemical synthesis and nano-scale particle reduction in battery, solid-state electrolyte, and catalyst R&D. By mounting jars on a counter-rotating sun wheel, these mills convert centrifugal acceleration into the high-impact and shear forces needed to break primary crystal bonds, alloy metals mechanically, and drive solvent-free reactions that wet chemistry cannot reach.

The collection covers the full range of planetary configurations used by electrochemistry labs, grouped by what the design optimizes for:

Energy and speed class

• Standard high-energy mills — typical operation up to roughly 1100 RPM, suited to routine cathode and anode powder homogenization, conductive-additive dispersion, and ceramic electrolyte particle reduction.
• High-speed and powerful units — 1200 RPM class with reinforced drives for harder ceramics such as garnet-type LLZO, NASICON-type LATP/LAGP, and sulfide precursors.

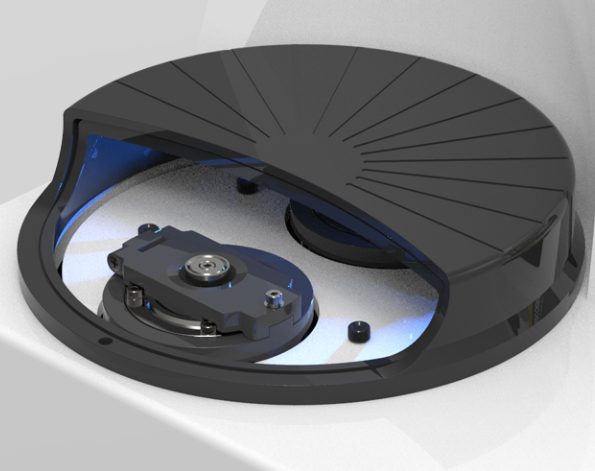

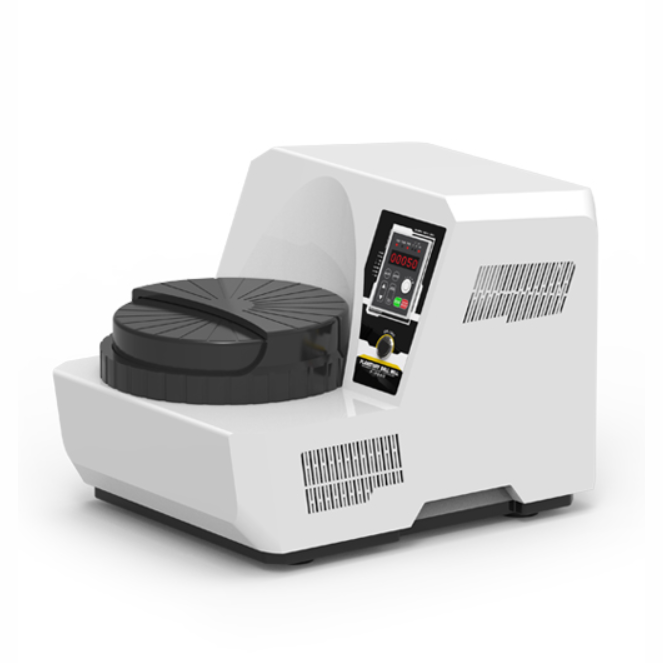

• Ultra-high-speed mills — 2200 RPM systems for mechanochemical synthesis, rapid mechanical alloying, and nano-phase generation where impact energy must scale with the square of velocity.

Kinematic and structural variants

• Adjustable speed-ratio mills — decouple sun-wheel revolution from jar rotation to tune the impact-to-shear balance for sensitive materials.

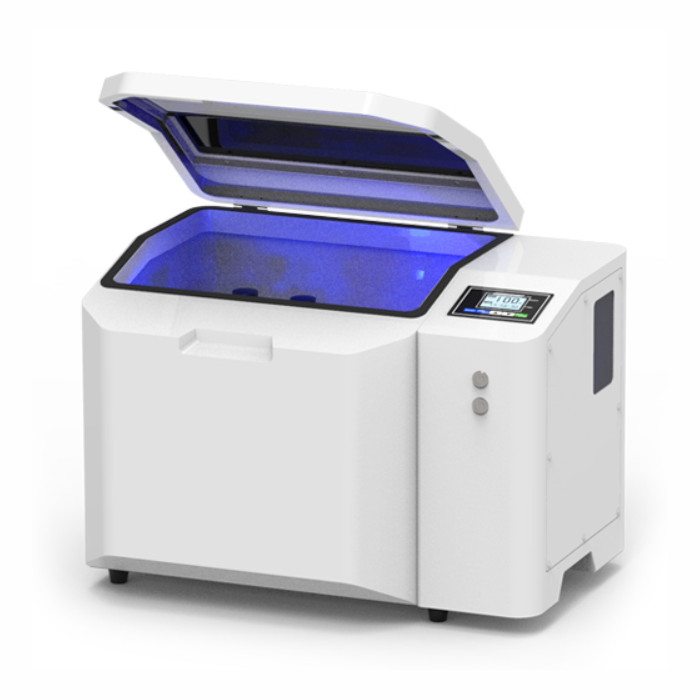

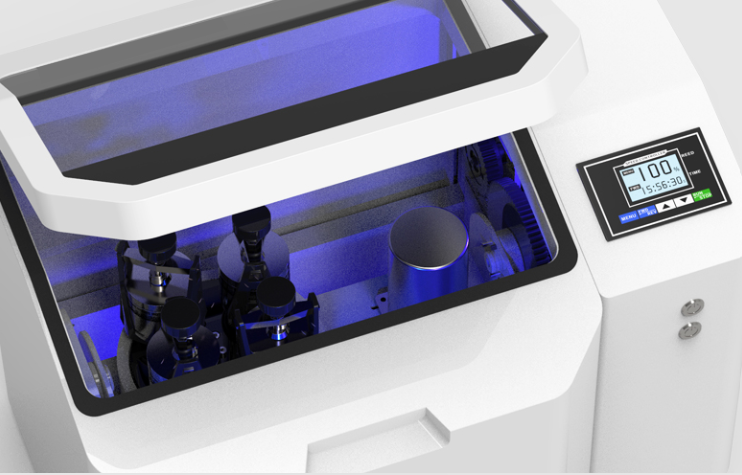

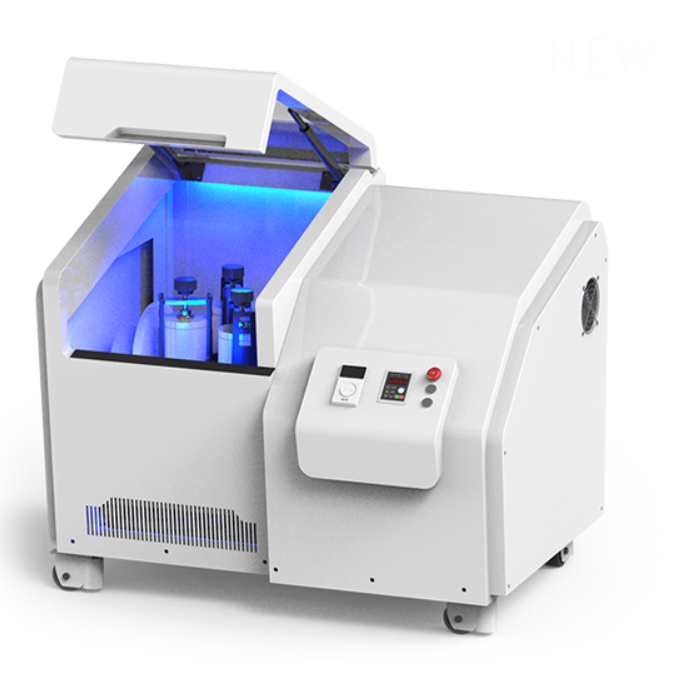

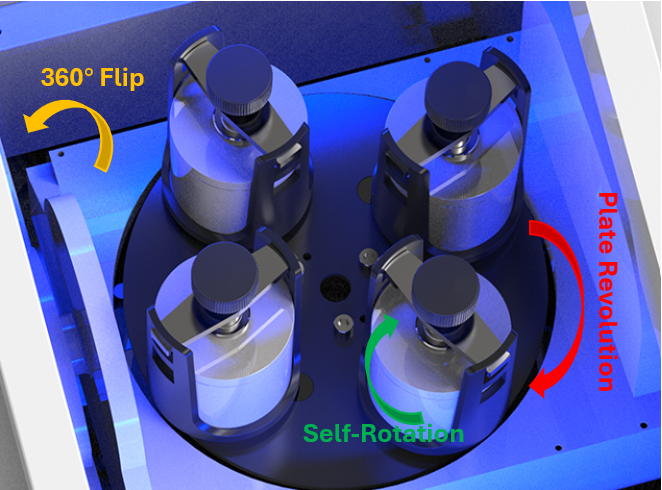

• 3D (tilting) mills — add a swing axis on top of planetary motion to prevent caking against the jar wall during long milling cycles.

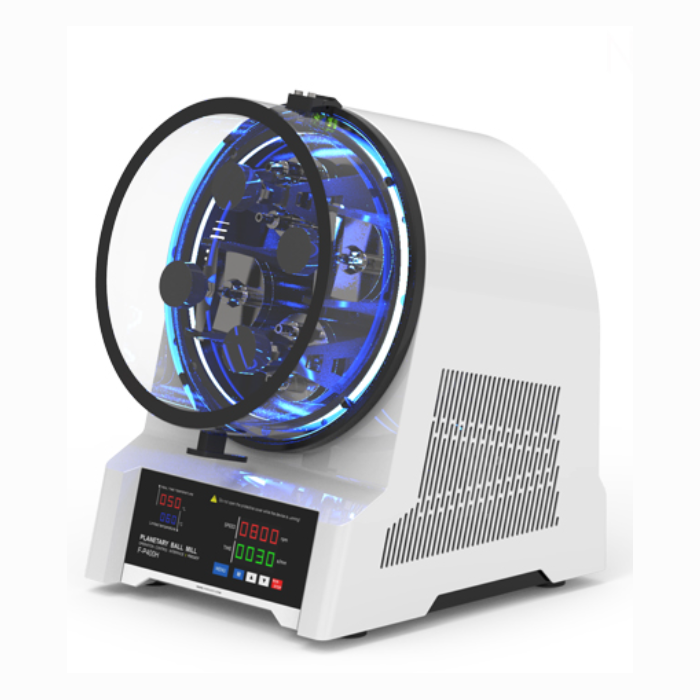

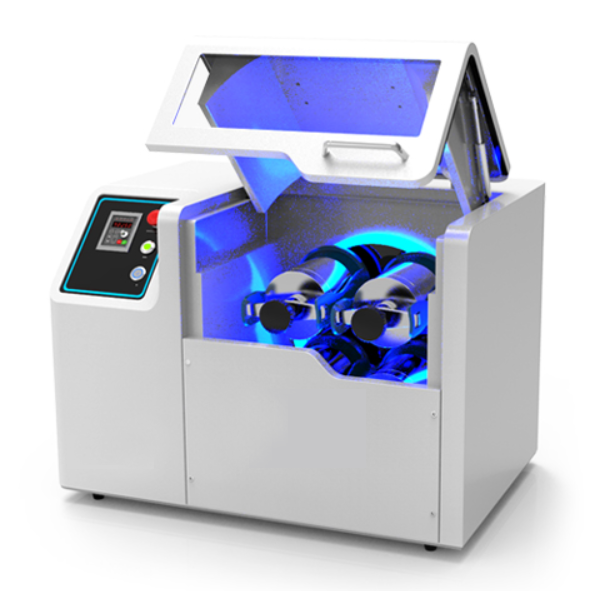

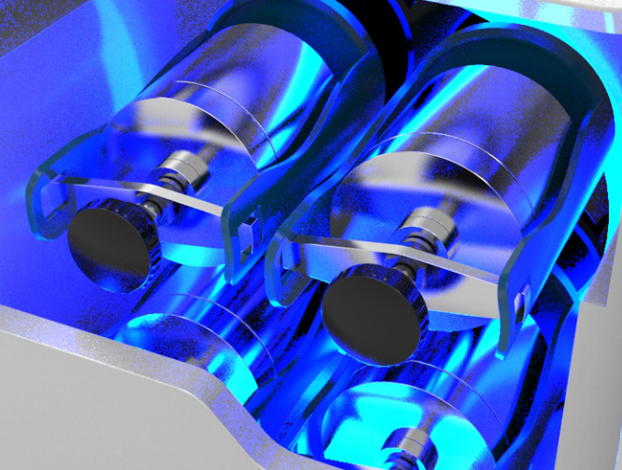

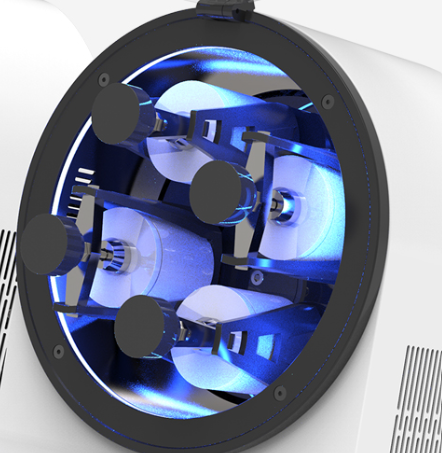

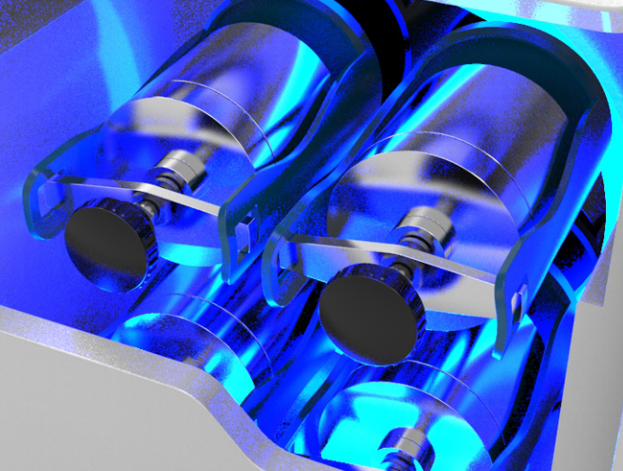

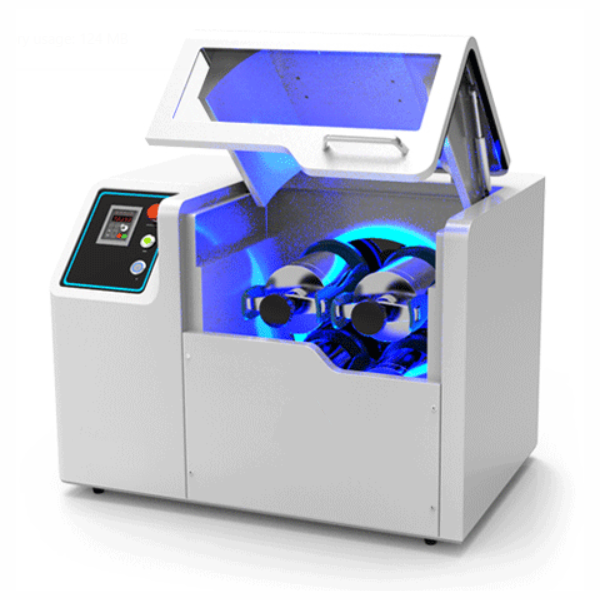

• Horizontal mills — preferred for high-solids slurries and pilot-scale work where settling in vertical jars becomes problematic.

Environment-controlled variants

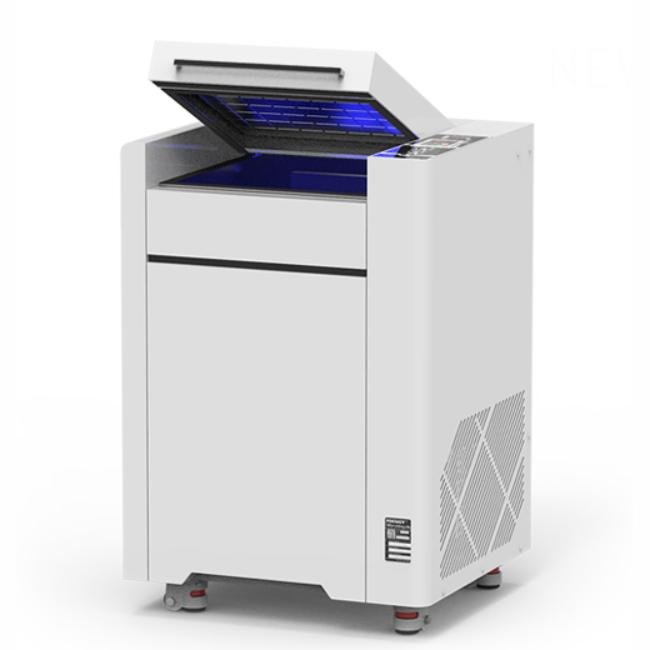

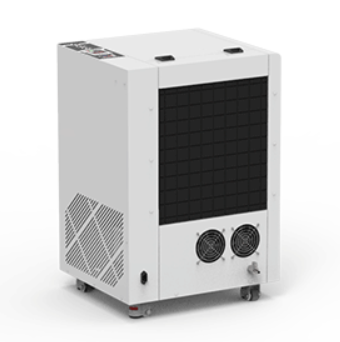

• Water-spray cooling mills — manage the heat load of sustained high-RPM operation without rotary unions.

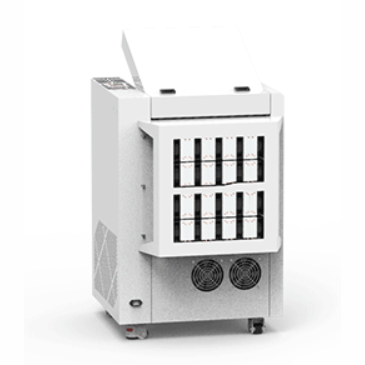

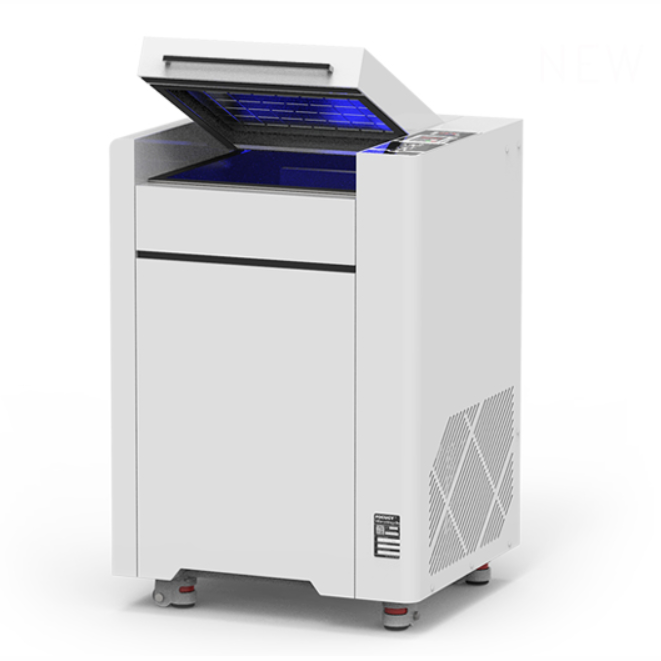

• Cryogenic mills — drive jar temperatures below ambient to embrittle polymers, binders, and oxidation-sensitive intermediates so they fracture cleanly.

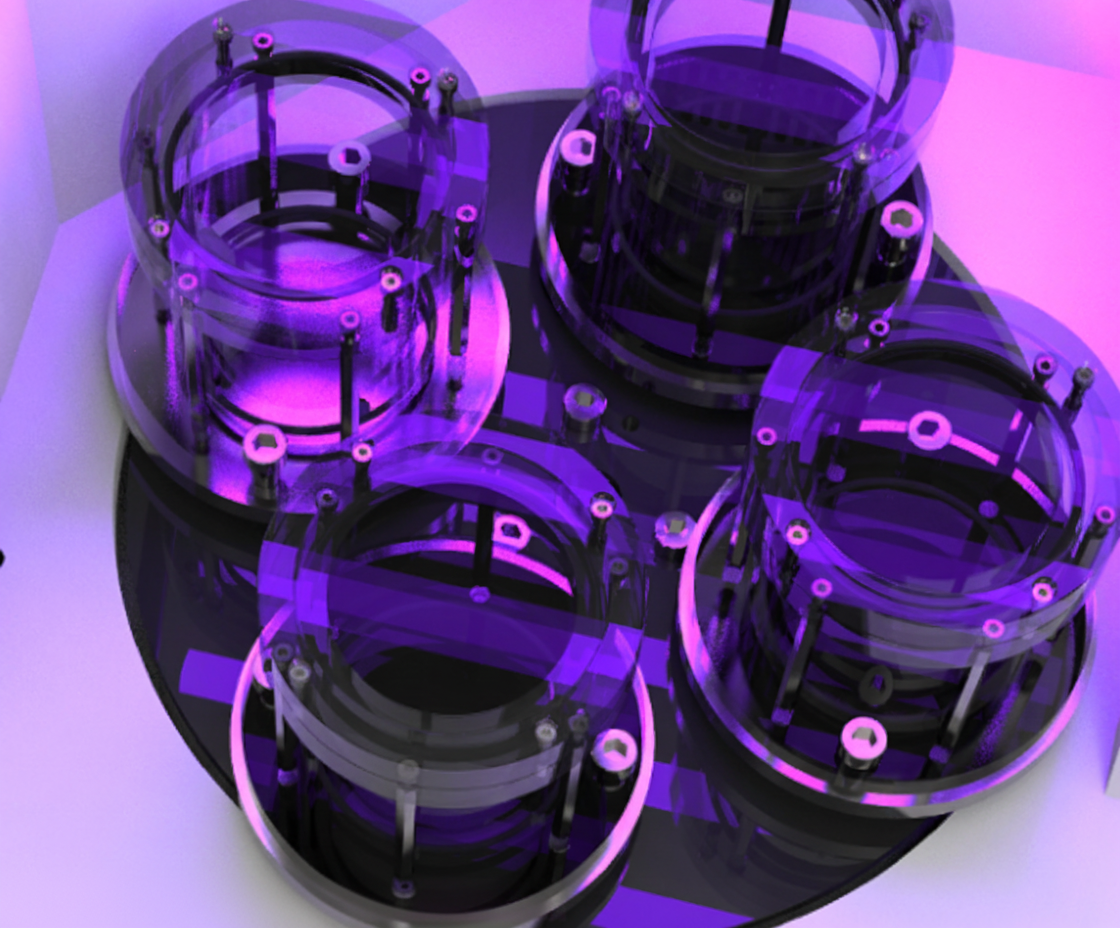

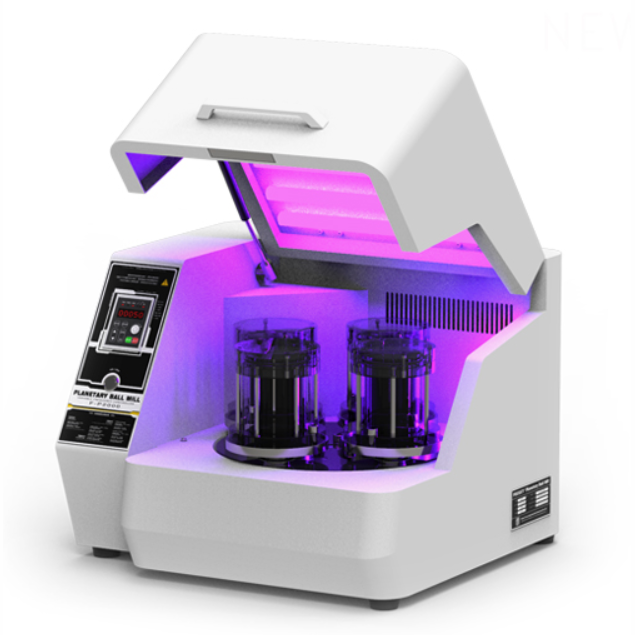

• Light-illuminated (photo) mills — combine mechanical activation with photon excitation for mechano-photocatalysis studies.

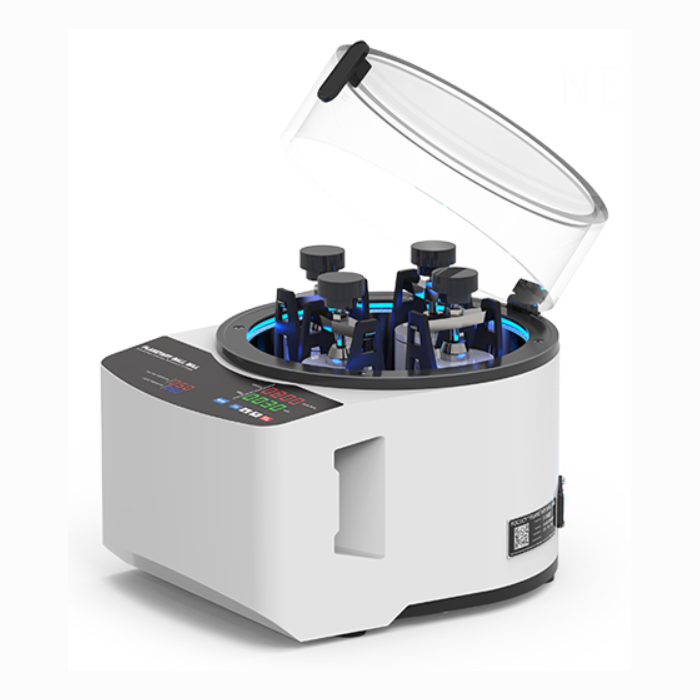

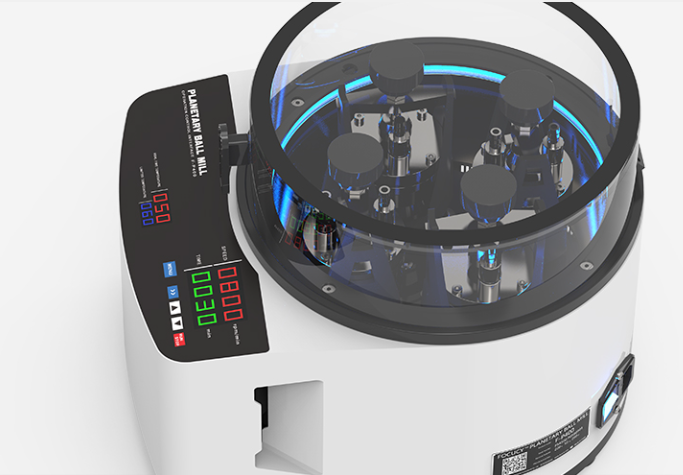

• Glovebox-compatible compact mills — sealed and sized to pass through Ar-glovebox antechambers for air-sensitive sulfide and lithium-metal work.

Working volumes in this catalog span from 2 x 100 mL benchtop screening units up to 4 x 1000 mL pilot-scale jars; jar and media materials (zirconia, agate, stainless, tungsten carbide) are selected per product to match the chemistry being processed.

If you are scaling a known recipe, start with the standard high-energy or horizontal mills sized to your batch. For new mechanochemical or solid-state synthesis routes, see the ultra-high-speed and adjustable-ratio units. For air-sensitive sulfide electrolytes, pair a glovebox-compatible mill with our ball mill jars and grinding media.
