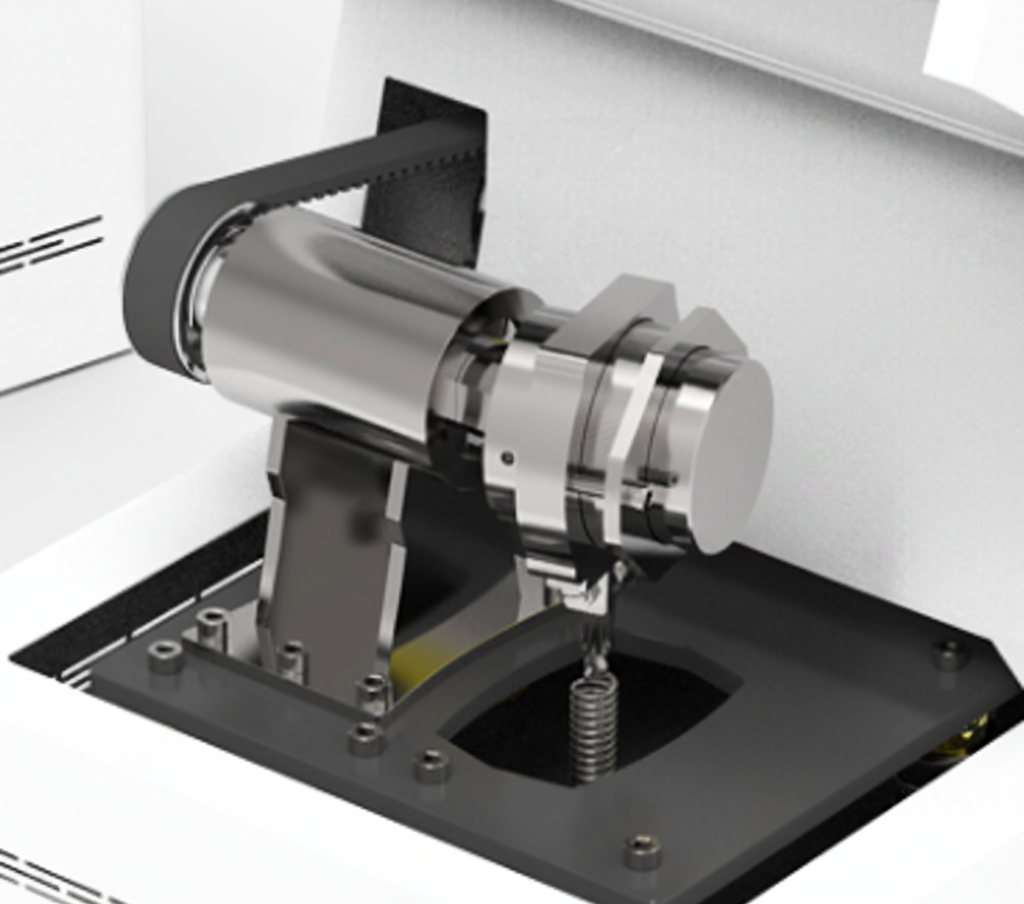

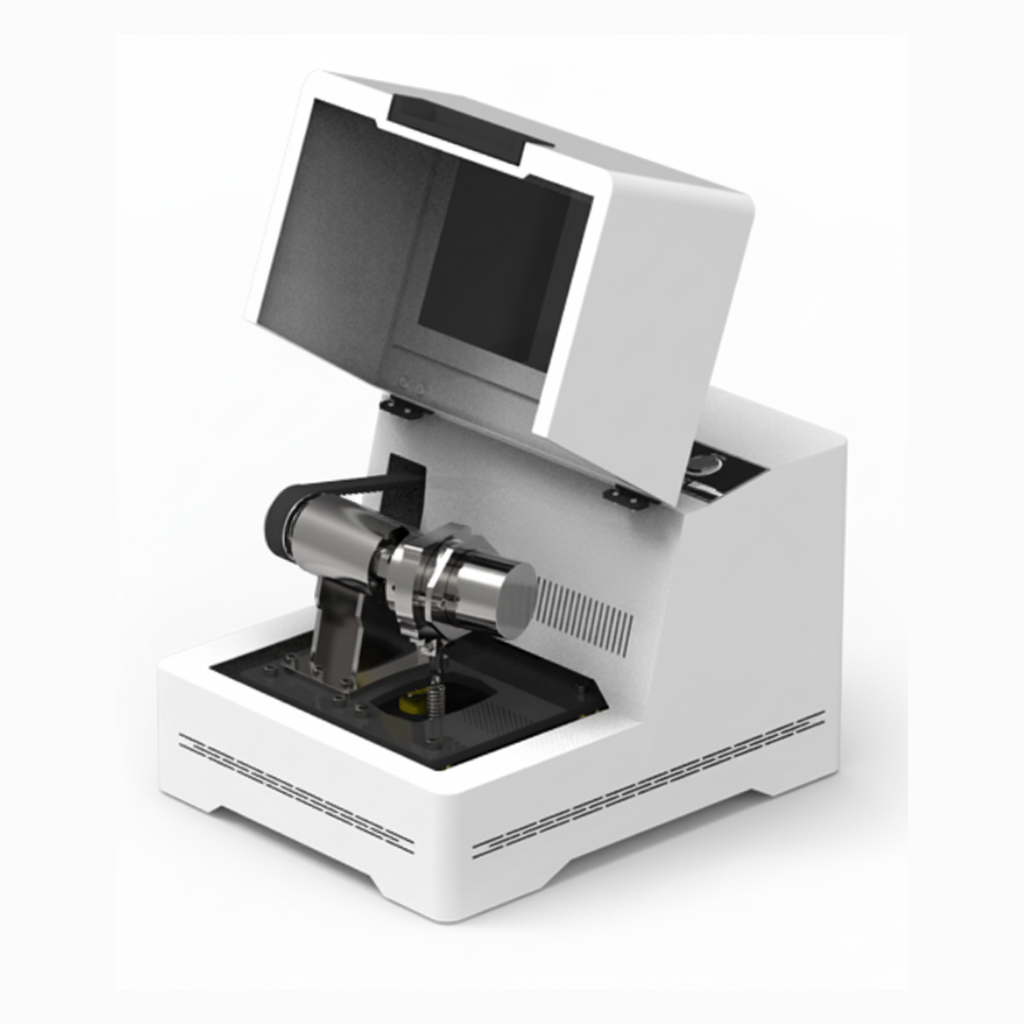

ECS-FS Single Jar High-Energy Vibratory Ball Mill (1700 rpm, 80 mL), EFSSJHEVBM

A High-Energy Vibratory Ball Mill (also known as a Shaker Mill or Mixer Mill) operates on a fundamentally different kinetic principle than planetary mills. Instead of using centrifugal force, the grinding jar undergoes high-frequency, small-amplitude oscillations—typically in a "figure-eight" or linear path.

In a vibratory mill, the grinding media (balls) and the material are subjected to intense accelerations caused by the high-frequency vibration of the jar (usually 15 to 30 Hz or 900 to 1800 cycles/min). (1) Impact Dominance: Unlike the rolling and shearing motion of a planetary mill, the vibratory mill is dominated by frontal impacts. The balls strike the end-caps of the jar with immense force. (2) Kinetic Energy: The energy transferred is proportional to the frequency and the mass of the grinding balls. This makes it exceptionally effective at breaking down the crystalline structure of brittle materials.

References:

T. Yoshida, et al., Vibration characteristics of an operating ball mill, J. Phys.: Conf. Ser., 2019, 1264, 012016

H. Lee, et al., Using the discrete element method to analyze the breakage rate in a centrifugal/vibration mill, Powder Technology, 2024, 36, 14, 6748–6764
