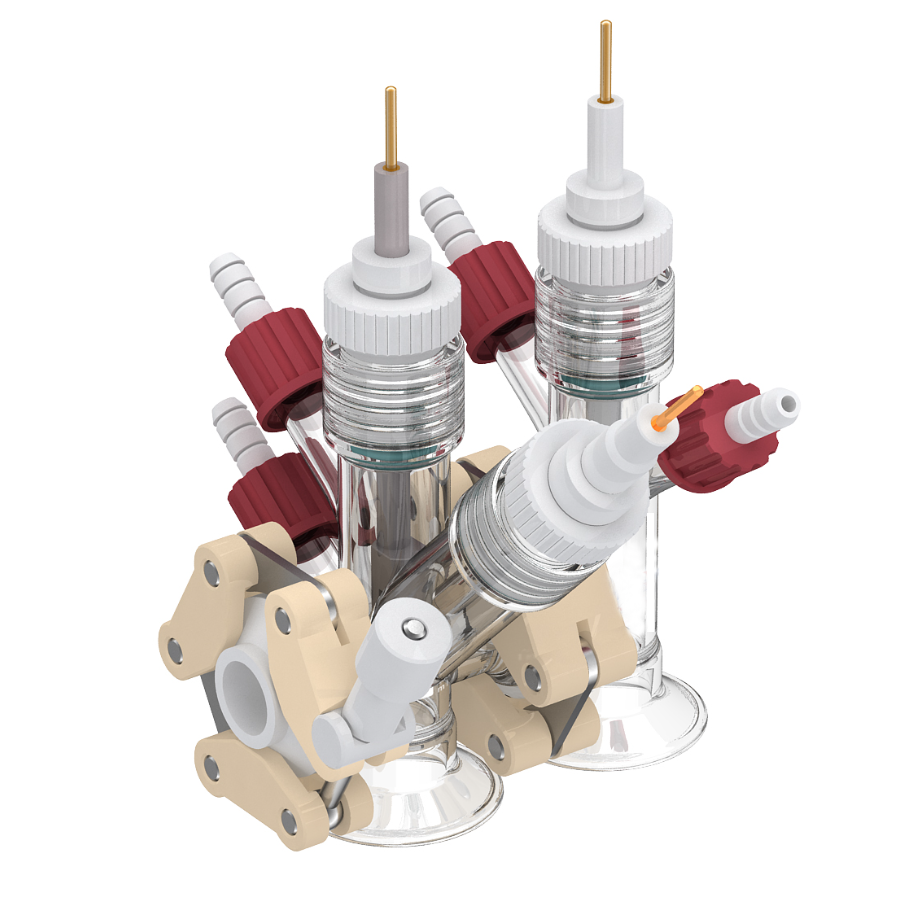

A mini-H-type test cell with a quartz window is a compact, high-precision reactor (typically 10–50 mL per chamber) designed for the rigorous characterization of photoelectrocatalytic materials. In your specialized research areas—such as CO2 reduction (CO2RR), N2 reduction (N2RR), or solar water splitting—the "mini" form factor is specifically chosen to maximize the concentration of reaction products (making them easier to detect via GC or HPLC) and to minimize the consumption of expensive electrolytes or isotope-labeled reactants.

The "Mini" cel volume design brings the following benefits: (1) Enhanced Product Detection: Smaller electrolyte volumes (e.g., 15 mL) result in higher molar concentrations of liquid products (like ethanol or formic acid), which is critical for accurate Faradaic Efficiency calculations. (2) Minimized iR Drop: In these compact cells, the reference electrode (often in a curved Luggin capillary) can be positioned within 1–2 mm of the photo-working electrode, significantly reducing voltage losses through the electrolyte. (3) Gas-Tight Integrity: Miniature H-cells often feature Ace-Thred (threaded PTFE) or compression-sealed ports rather than ground-glass joints, ensuring the "absolute seal" necessary for sensitive gas-phase analysis.
