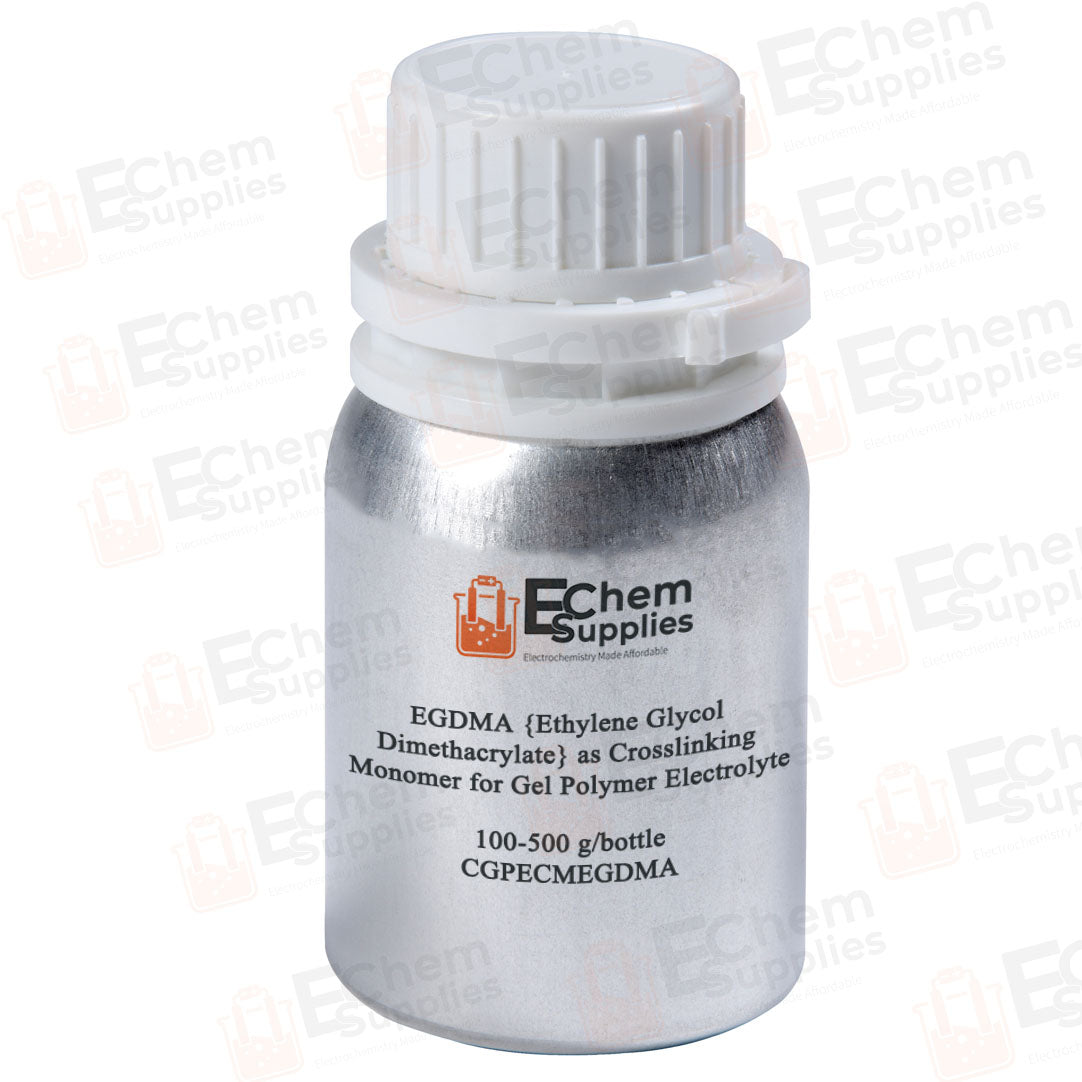

EGDMA {Ethylene Glycol Dimethacrylate, >99.0%} as Crosslinking Monomer for Gel Polymer Electrolyte, 100-500 g/bottle, CGPECMEGDMA

Ethylene Glycol Dimethacrylate (EGDMA) is a bifunctional methacrylic monomer (C}10H14O4) featuring two reactive methacrylate groups bridged by a flexible ethylene glycol segment. In advanced energy storage research, EGDMA is widely utilized as a standard crosslinking agent for Gel Polymer Electrolytes (GPEs) and in situ polymerized solid/gel battery systems, offering an optimal balance between structural crosslink density, chain flexibility, and electrolyte retention.

The main functional roles of EGDMA as crosslinking monomer for GPEs are: (1) Controlled 3D Network & Liquid Immobilization: Upon thermal or UV-initiated radical polymerization (using initiators like AIBN, BPO, or photoinitiators), EGDMA copolymerizes with linear host polymers (such as PMMA, PVDF-HFP, or MMA) to form a stable 3D crosslinked network. This permanently traps organic liquid electrolytes, eliminating free-flowing leakage while preserving high ionic mobility. (2) Enhanced Ionic Conductivity Retention: Because EGDMA provides a moderate crosslink density without over-constricting the polymer chains, the resulting gel electrolyte maintains high segmental motion, achieving room-temperature ionic conductivities routinely exceeding 10^{-3} S/cm. (3) Robust In Situ Interfacial Wetting: Used in in situ cell integration, the low-viscosity precursor thoroughly wets separator pores and electrode microstructures before curing, drastically reducing interfacial resistance and improving long-term cycle stability.

Part Number	CGPECMEGDMA (C-GPE-CM-EGDMA)
CAS	97-90-5

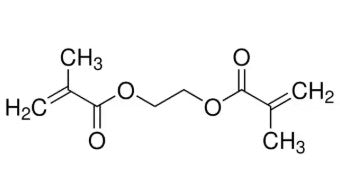

Chemical Formula	C₁₀H₁₄O₄
Appearance	Colorless to light amber clear liquid
Molecular Weight	198.22 g/mol
Density	1.051 g/mL
Boling Point	98–100 °C at 5 mmHg
Flash Point	104 °C
Package Size5	100 g, 200 g, and 500 g/bottle

Notes: Please try to store the EGDMA monomer in a dry place.

References:

1. R. Xu, et al. Facile and Powerful In Situ Polymerization Strategy for Sulfur-Based All-Solid Polymer Electrolytes in Lithium Batteries, ACS Appl. Mater. Interfaces (2021) 13 (29): 34274–34281
2. B. C. F. Wong, et al. Effects of ethylene glycol dimethacrylate as cross-linker in ionic liquid gel polymer electrolyte based on poly(glycidyl methacrylate), Electrochimica Acta, 2023, 465, 142968
