LiNiCoMnO2 (NCM111) Powder for Li-Ion Battery Cathode, 100-500 g/bottle, CLIBCNCM111

NCM111 (also called NMC111) is a specific "flavor" of the NMC (Lithium Nickel Manganese Cobalt Oxide) cathode family, one of the most important and common types of lithium-ion battery cathodes. It has a 2D layered crystal structure (like LCO and NCA), which allows lithium ions to slide in and out of the structure during charging and discharging.

Each element in NCM111 play key roles in battery function: (1) Nickel (Ni): Provides the high capacity and energy density. (2) Manganese (Mn): Provides thermal and structural stability. It forms a strong 3D framework that keeps the layers from collapsing. (3) Cobalt (Co): Reduces unwanted mixing of atoms in the crystal, which improves cycle life and power (rate capability).

Part Number	CLIBCNCM111(C-LIB-C-NCM111)
Chemical Composition	Ni: 33.43 mol%;  Co: 33.22 mol%;  Mn: 33.35 mol%
Impurity Content	Fe: 10.6 ppm, Ca: 19.6 ppm,  LiOH: 568 ppm Li2CO3: 2876 ppm,  Fe+Cr+Zn: 28.5 ppb

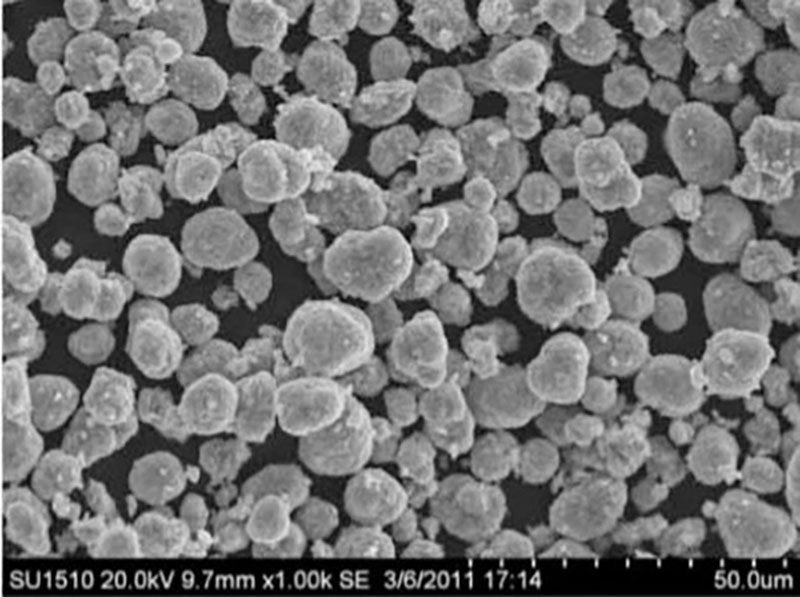

Particle Size Distribution	D10 = 2.4 um;  D50 =3.2 um;   D90 = 4.4 um
Tap Density	1.55 g/cm3
Water Level	245 ppm
Specific Area	1.90 m2/g
First Discharging Capacity	~160 mAh/g
First Columbic Efficiency	96.0%
Package Grade	100 g, 200 g, and 500 g/bottle

Notes: (1) Please store the NCM111 powder in a dry area (glovebox is preferred); (2) The battery powder is highly recommended to be dried at 80-100°C in a vacuum oven for 6-12 h before use.

References:

1. L. Maskova, et al. Wet-Chemical Synthesis of a Protective Coating on NCM111 Cathode: The Quantified Effects of Washing, Sintering and Coating, J. Electrochem. Soc., 2024, 171 100520.
2. S. Burkhardt, et al. Charge Transport in Single NCM Cathode Active Material Particles for Lithium-Ion Batteries Studied under Well-Defined Contact Conditions, ACS Energy Lett. 2019, 4, 2117–2123.
