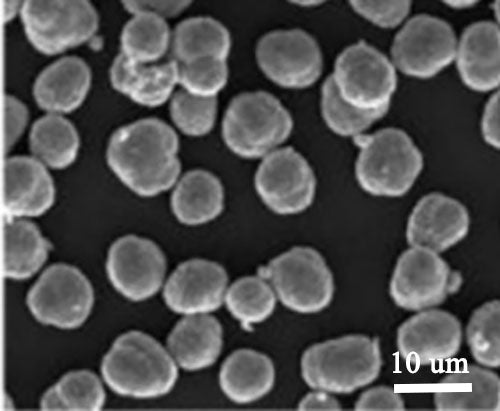

LiNi0.90Co0.05Mn0.05O2 (NCM9055, Polycrystalline) Powder for Li-Ion Battery Cathode, 100 g/bottle, CLIBCNCM9055
Use your own shipping account?
We support FedEx, UPS, and DHL third-party billing for institutional customers.
Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.
NCM9055 (LiNi0.90Co0.05Mn0.05O2) cathode is an ultra-high nickel layered oxide material for lithium-ion batteries. The elements in NCM90 play different roles in battery operation: (a) 90% Nickel (Ni): The active material responsible for high capacity. (b) 5% Cobalt (Co): Included primarily for structural stability. (c) 5% Manganese (Mn): Included for safety and structural integrity. It has the following advantages:
(1) Highest Energy Density: With 90% nickel, NCM9055 pushes the theoretical capacity limit of layered oxide cathodes. This significantly increases the specific energy (Wh/kg) of the battery cell, which is crucial for maximizing EV range. NCM90 can deliver an initial discharge capacity of around 225-230 mAh/g.
(2) Lowest Cobalt Content: The cobalt fraction is slashed to just 5% (from 10% in NCM811 and 20% in NCM622). This dramatically: (a) Reduces Raw Material Cost: Cobalt is the most expensive and supply-constrained metal. (b) Improves Ethical Sourcing: Reduces reliance on cobalt mining, which is associated with ethical and environmental concerns.
The polycrystalline NCM9055 powders are surface coated with alumina for improving conductivity and cycling stability.
| Part Number |
CLIBCNCM9055 (C-LIB-C-NCM9055) |
| Chemical Composition |
Li: 6.85 wt% Ni: 89.6 mol%, Co: 5.18 mol%, Mn: 5.22 mol% |
| Impurity Content |
Fe: 5 ppm; Na: 29 ppm; Ca: 65 ppm; Mg: 5 ppm |
| Particle Size Distribution |
D10 = 6.9 um; D50 =9.4 um; D90 = 13.0 um |
| Tap Density | 2.61 g/cm3 |
| Specific Area | 0.62 m2/g |
| Water Level | 251 ppm |
| First Discharging Capacity |
~218 mAh/g (0.1 C, 3.0-4.3 V)  |
| First Columbic Efficiency |
90.5% |
Notes: (1) Please store the NCM9055 powder in a dry area (glovebox is preferred); (2) The battery powder is highly recommended to be dried at 80-100°C in a vacuum oven for 6-12 h before use.
References:
- H. Sun, et al. Impact of Microcrack Generation and Surface Degradation on a Nickel-Rich Layered Li[Ni0.9Co0.05Mn0.05]O2 Cathode for Lithium-Ion Batteries, Chem. Mater., 2017, 29, 8486–8493.
- H. Sun, et al. Structural Optimization of Al-Doped Li[Ni0.90Co0.05Mn0.05]O2 Cathode for Li-Ion Batteries, J. Electrochem. Soc., 2022, 169, 110542.
