Single-Crystal LiNi0.5Co0.2Mn0.3O2 (NCM523) Powder for High-Voltage (~4.35 V) Li-Ion Battery Cathode, 100 g/bottle, CLIBCSCNCM523

NCM523 has a 2D layered crystal structure that allows lithium ions to be inserted and removed efficiently. NCM523 is best understood as the "balanced" or "mainstream" option within the NMC family. It sits in a sweet spot, balancing the trade-offs between the older, more stable NCM111 and the newer, higher-energy NCM811.

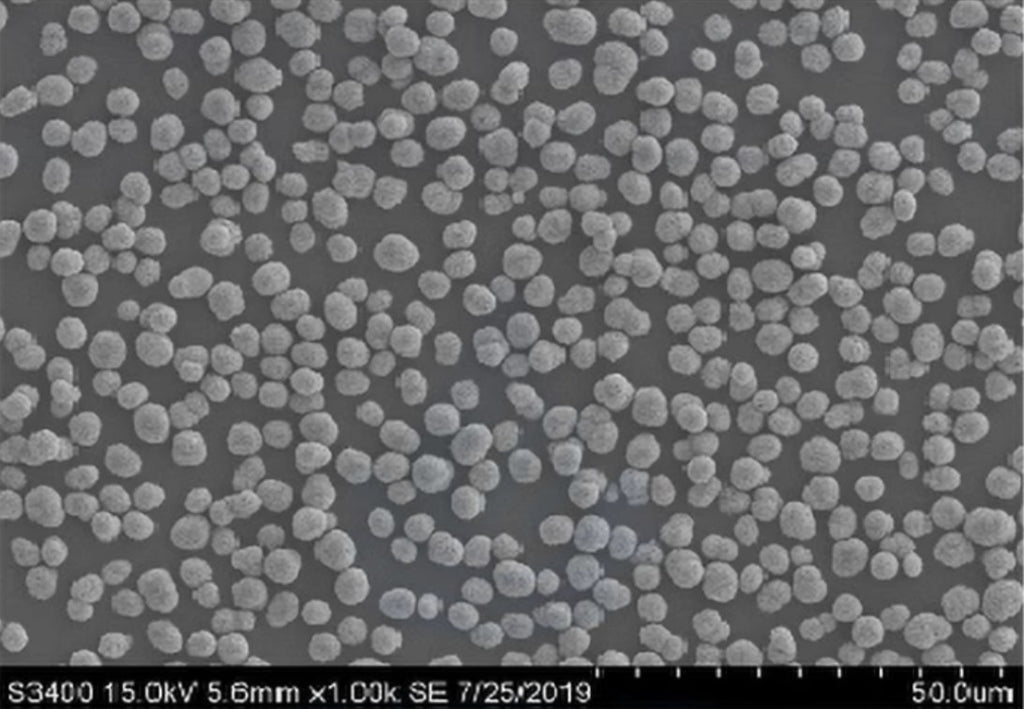

The single-crystal NCM523 particles have following features: (1) Structure: It has zero internal grain boundaries. It is one solid, monolithic crystal. (2) The Advantage: When the particle swells and shrinks, there are no internal seams to crack. It is structurally robust and can withstand the mechanical stress of cycling for thousands of F-cycles. (3) The Result: An dramatic increase in battery lifespan and durability.

Part Number	CLIBCSCNCM523(C-LIB-C-SCNCM523)
Chemical Composition	Li: 7.55 wt%;  Ni: 30.21 wt%;  Co: 12.15 wt%; Mn: 16.67 wt%
Impurity Content	Fe: 0.0012 wt%;  Na: 0.0022 wt%;  Ca: 0.0045 wt%;  Mg: 0.0033 wt%;  Cu: 0.0001 wt%
Particle Size Distribution	D10 = 2.24 um;  D50 =4.58 um;   D90 = 8.56 um
Tap Density	2.10 g/cm3
Water Level	246 ppm
Specific Area	0.66 m2/g
First Discharging Capacity	~170 mAh/g (0.1 C, 3.0-4.3 V)
First Columbic Efficiency	95.0%

Notes: (1) Please store the SCNCM523 powder in a dry area (glovebox is preferred); (2) The battery powder is highly recommended to be dried at 80-100°C in a vacuum oven for 6-12 h before use.

References:

1. X. Shi, et al. Stable Electrode/Electrolyte Interface for High-Voltage NCM 523 Cathode Constructed by Synergistic Positive and Passive Approaches, ACS Appl. Mater. Interfaces 2021, 13, 57107–57117.
2. S. Klein, et al. Exploiting the Degradation Mechanism of NCM523||Graphite Lithium-Ion Full Cells Operated at High Voltage, ChemSumChem, 2021, 14, 595-613.
