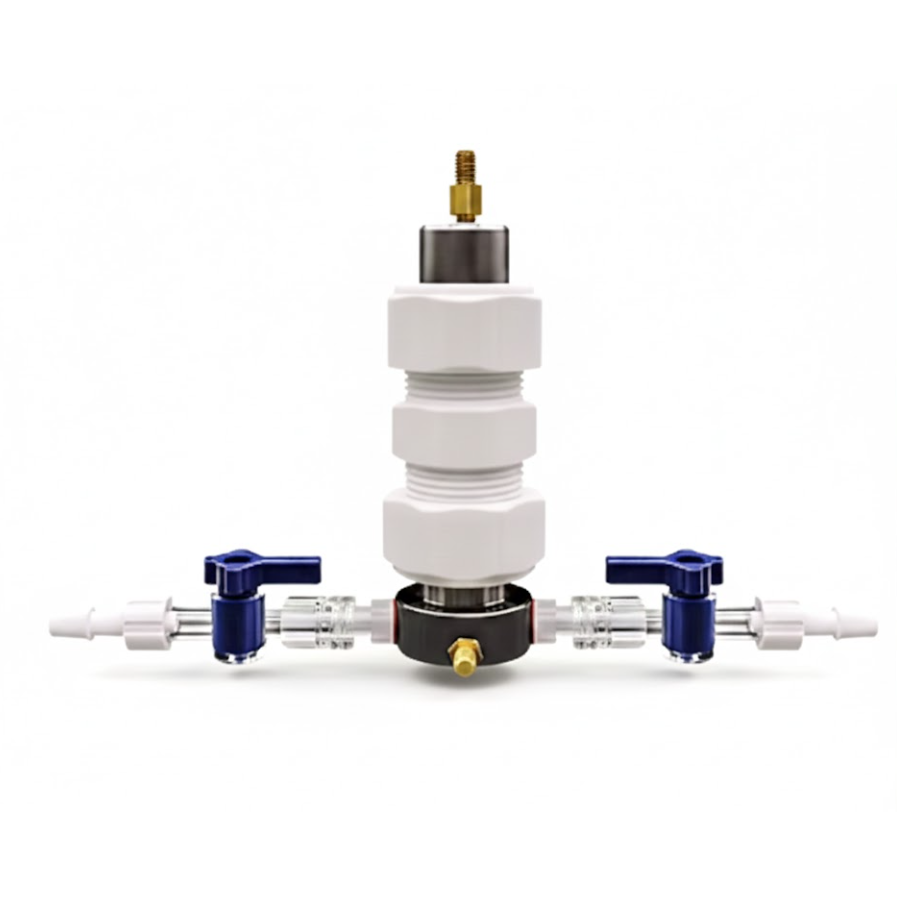

Two-Electrode Swagelok Cell (I.D.= 14, 20 mm) with Gas Inlet/Outlet for Metal-Gas Battery Testing, CMGBT2ESCG
Use your own shipping account?
We support FedEx, UPS, and DHL third-party billing for institutional customers.
Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.

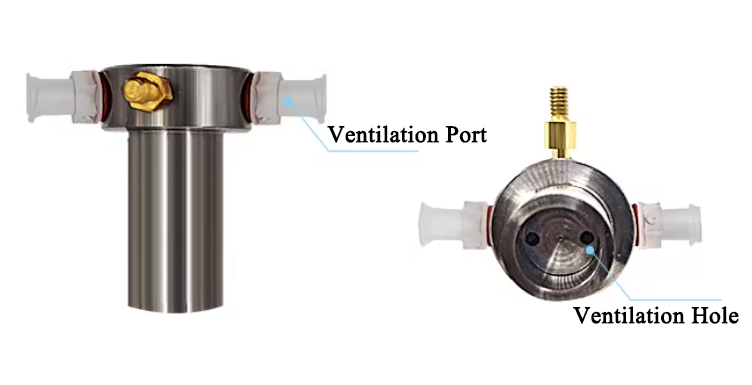

In metal-gas battery research (such as Li-O2, Zn-air, or Na-CO2), Swagelok cells are favored for their ability to maintain a strictly air-tight seal while allowing for the precise introduction of reactant gases. Unlike standard battery testing, metal-gas systems require a gas headspace and a mechanism to deliver oxygen or other gases to the cathode. The cathode side typically uses a hollow tube or a plunger with a center-drilled hole, which allows the gas to reach the back of a Gas Diffusion Electrode (GDE).
| Part Number |
CMGBT2ESCG (C-MGBT-2ESCG) |

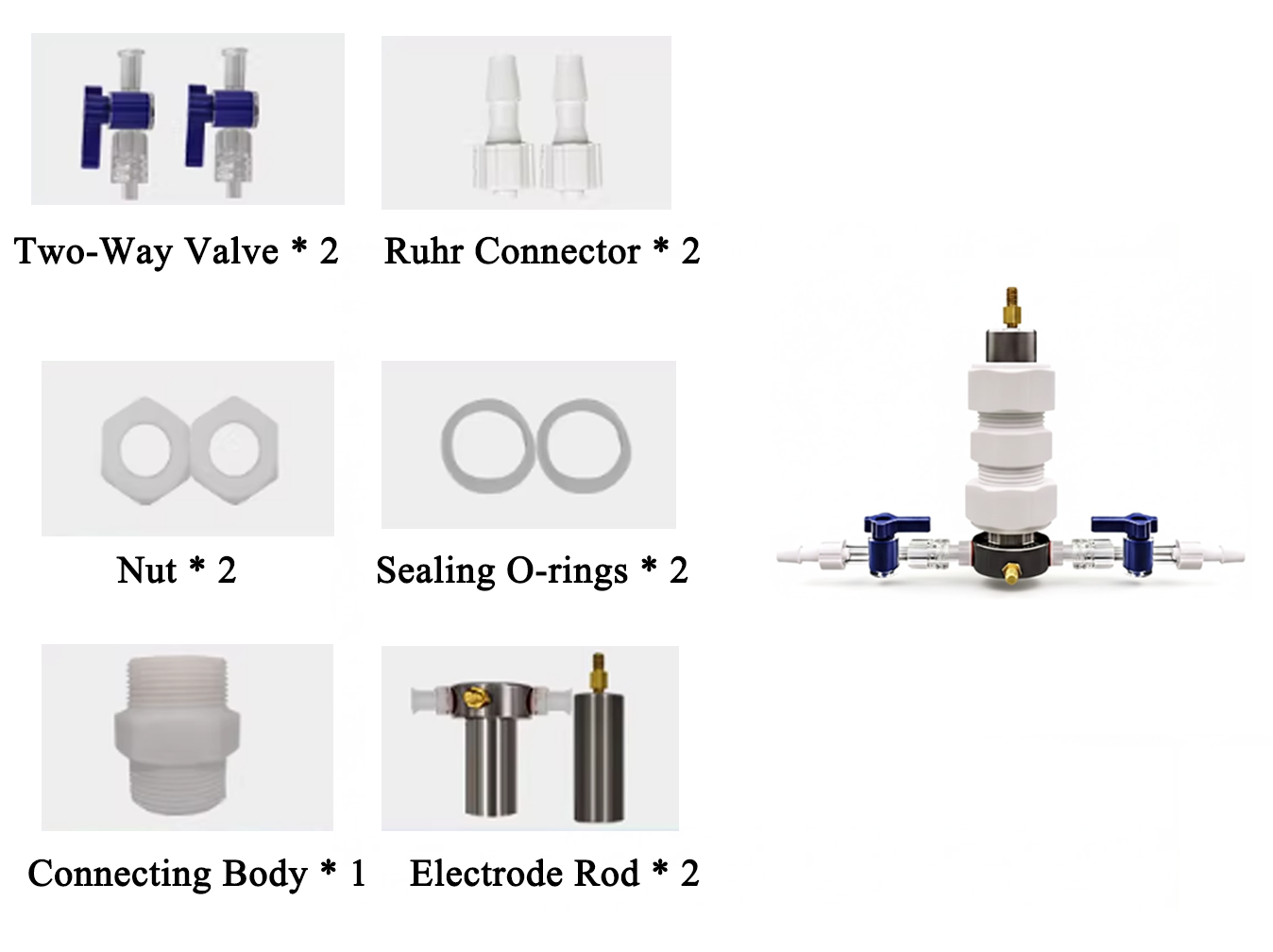

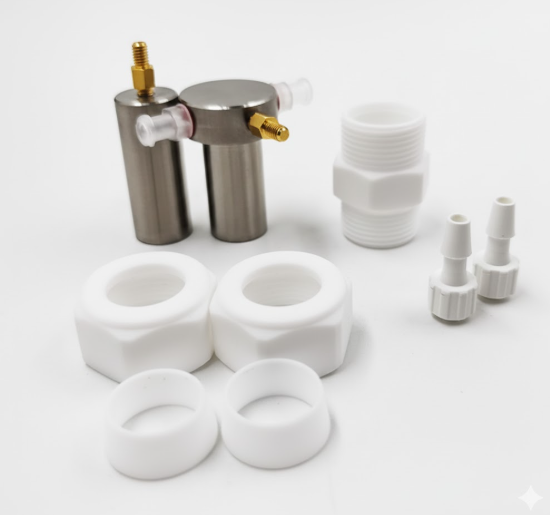

| Structure/Components |
Top/Bottom Metal Part: Ti Alloy (suitable for most battery electrolytes)
Sleeve: PTFE
Gas tubing port size: 2mm
|
| Cell Sizes |
Standard I.D: 14 mm, 20 mm (Any other sizes, such as 10 mm, 12 mm, 16 mm, 18 mm are available upon request) |
| Max. Operation Temperature |
200 ºC under tightening pressure
|
| Note | The cell components should be thoroughly cleaned and dried after use. |
