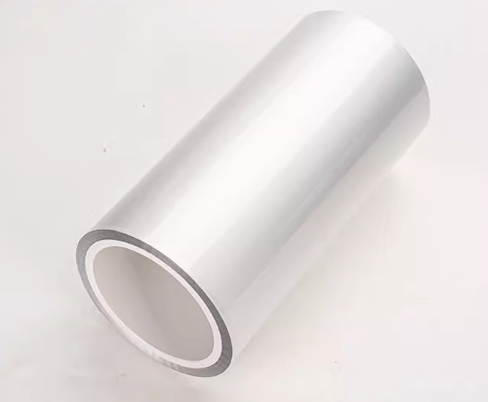

Aluminum Laminated Film Roll (W200 mm * L10 m, T= 76 & 113 & 153 um) as Pouch Cell Cases, CPCCALFR
Use your own shipping account?
We support FedEx, UPS, and DHL third-party billing for institutional customers.
Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.
The aluminum laminated film is the cases for pouch cell application. It is consisting of nylon, glue, Al, and PP layers that is resistant to the high temperature and chemical corrosion.
| Part Number |
CPCCALFR (C-PCC-ALFR) |
| Laminated Film Structure |
(1) T76 um (from outside to inside for laminated film) Polyamide (PA): 15 um, Dry Laminant (DL): 3 um Aluminum (AL): 30 um Polypropylene (PP): 28 um  (2) T113 or 115 um (from outside to inside for laminated film)
Polyamide (PA): 25 um, Dry Laminant (DL): 3 um Aluminum (AL): 40 um Polypropylene (PP): 45 um
(3) T=153 um ALF that is designed for EV pouch cells PET: 6 um, DL: 3 um, PA: 15 um, DL: 3 um, AL: 55 um, PP: 70 um |
| Pouch Case Size |
(1) T76 um * W200 mm * L10 m
(2) T113 um * W200 mm * L10 m
(3) T115 um * W480 mm * L20 m
(4) T153 um * W200 mm * L10 m
Other sizes can be provided upon request.
|
| Use Notes |

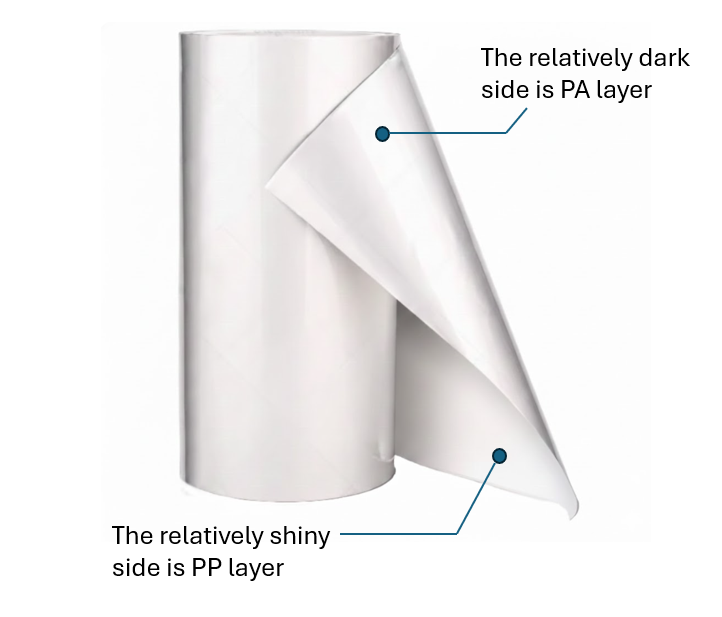

(1) Please make sure the shiny side of PP layer is folded inside to hot laminated with tab adhesive.
|
