O3-Type Layered Oxide NaNi0.4Fe0.2Mn0.4O2 (NFM424) Coated Aluminum Foil as Cathode Electrode (Disc, Sheet, Roll) for Na-Ion Battery, CSIBCENFM424
Use your own shipping account?
We support FedEx, UPS, and DHL third-party billing for institutional customers.
Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.
O3-Type NaNi0.4Fe0.2Mn0.4O2 (NFM424) Powder coated on aluminum foil electrode (disc, sheet, roll) can be used as sodium-ion battery cathode. The round disc shape with single-side coating is suitable for coin cell testing, while the rectangle sheet shape with single- or double-side coating is designed for single-layer or multiple-layer pouch cell testing. The roll shape with double-side coating is designed for cylindrical cell electrodes after slitting.
| Part Number | CSIBCENFM424 (C-SIB-CE-NFM424) |

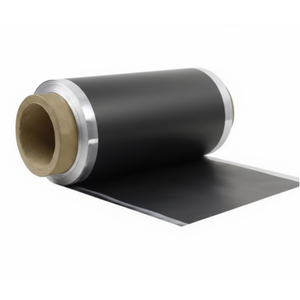

| Current collector | Carbon-coated aluminum foil (1+15+1 um) |

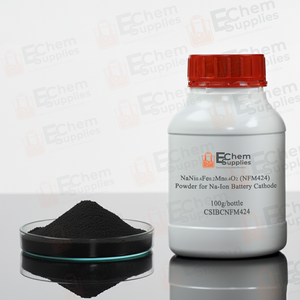

| Coating Material | NFM424 powder (CSIBCNFM424) |
| Active Material Portion | 95.3% |
| Electrode Dimension |
Round disc shape: D = 10-15 mm (other diameter discs are also available). Rectangle sheet: L120mm*W100mm coating area width of 10-20 mm blank area for tab welding) |
| Package Size |
Round disk D = 10 -15 mm (50 pcs/pack) Rectangle sheet with SS & DS coating (5 pcs/pack) |
| Loading Mass Density | 20.0 mg/cm2 (single side); 40.0 mg/cm2 (double side) |
| Compaction Density | ~3.0 g/cm3 |
| First Discharging Capacity |
~160 mAh/g (0.1 C, testing voltage range of 2.0-4.2 V
|
| First Columbic Efficiency | 94.8 % |
Notes: (1) Please store the NFM424 electrodes in a dry area (glovebox is preferred); (2) The battery electrodes are highly recommended to be dried at 80-100°C in a vacuum oven for 6-12 h before use.
References:
- X. Li, et al. Preparation and Property Optimization of High Capacity O3-type NaNi0.4Fe0.2Mn0.4O2, J. Electrochem. Soc., 2024, 171, 080526
-
X. Li, et al. Prilling and Coating Strategy to Synthesize High-Performance Spherical NaNi0.4Fe0.2Mn0.4O2 Cathode Materials for Sodium Ion Batteries, Langmuir 2024, 40, 35, 18610–18618
