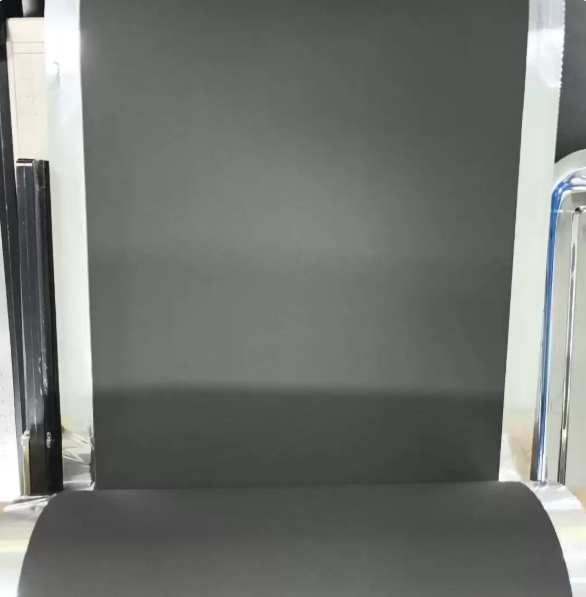

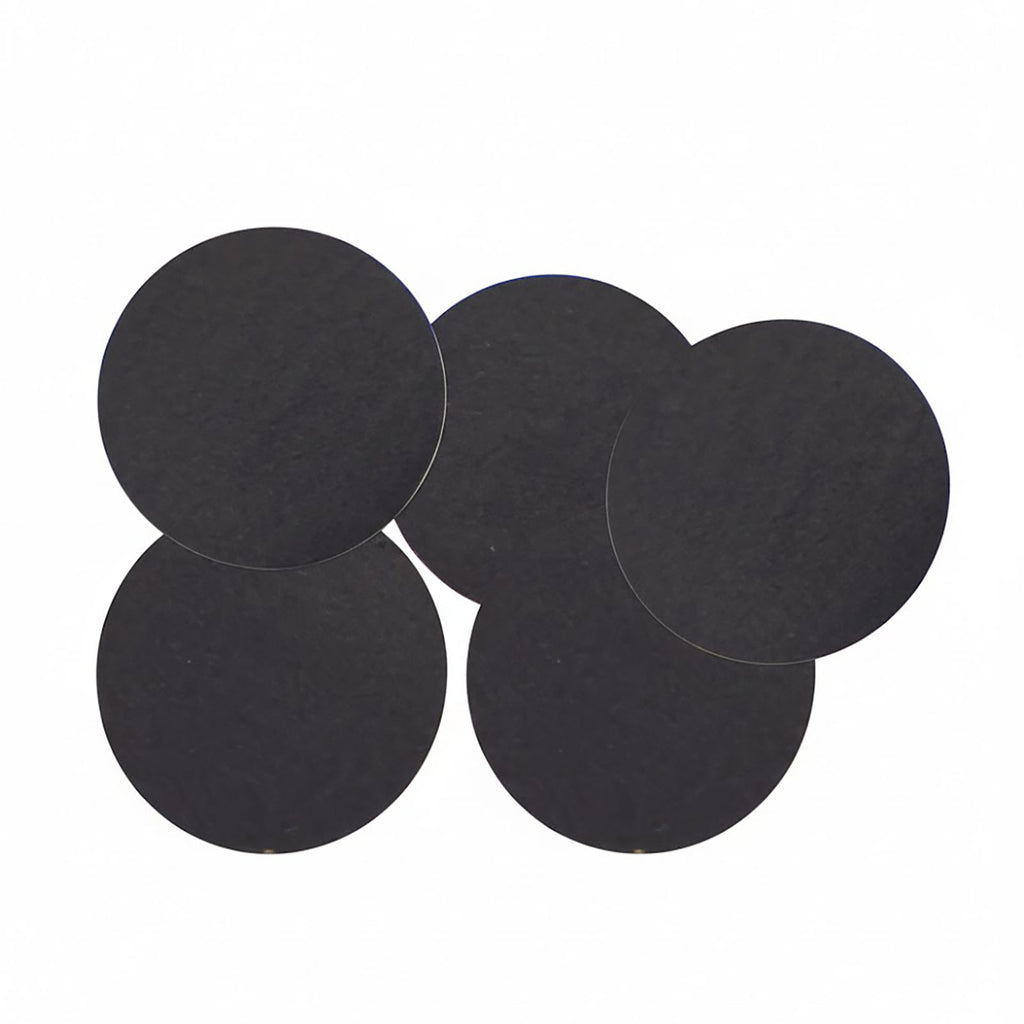

O3-Type NaNi0.4Fe0.2Mn0.4O2 (NFM424) Powder coated on aluminum foil electrode (disc, sheet, roll) can be used as sodium-ion battery cathode. The round disc shape with single-side coating is suitable for coin cell testing, while the rectangle sheet shape with single- or double-side coating is designed for single-layer or multiple-layer pouch cell testing. The roll shape with double-side coating is designed for cylindrical cell electrodes after slitting.

Part Number	CSIBCENFM424 (C-SIB-CE-NFM424)
Current collector	15 um aluminum foil
Coating Material	NFM424 powder (CSIBCNFM424)
Coating Slurry Recipe	NFM424: PVDF: Super P = 94.5% : 3% : 2.5%
Electrode Dimension	Round disc shape: D = 10-15 mm (other diameter discs are also available). Rectangle sheet shape: Substrate (L280mm*W250mm); Coating: (L280 mm*210 mm, empty width of 20 mm at each side for tab welding) Roll shape: 10 m length (longer electrode roll, such as 20, 50, 100 m can be supplied upon request)
Package Size	Round disk D = 10 -15 mm (50 pcs/pack) Rectangle sheet with SS & DS coating (1 pcs/pack) Roll shape: 1 roll
Loading Mass Density	12.4 mg/cm2 (single side); 24.8 mg/cm2 (double side)
Compaction Density	~2.5 g/cm3
First Discharging Capacity	~160 mAh/g (0.1 C, testing voltage range of 2.0-4.2 V
First Columbic Efficiency	94.8 %

Notes: (1) Please store the NFM424 electrodes in a dry area (glovebox is preferred); (2) The battery electrodes are highly recommended to be dried at 80-100°C in a vacuum oven for 6-12 h before use.

References:

1. X. Li, et al. Preparation and Property Optimization of High Capacity O3-type NaNi0.4Fe0.2Mn0.4O2, J. Electrochem. Soc., 2024, 171, 080526
2. X. Li, et al. Prilling and Coating Strategy to Synthesize High-Performance Spherical NaNi0.4Fe0.2Mn0.4O2 Cathode Materials for Sodium Ion Batteries, Langmuir 2024, 40, 35, 18610–18618
