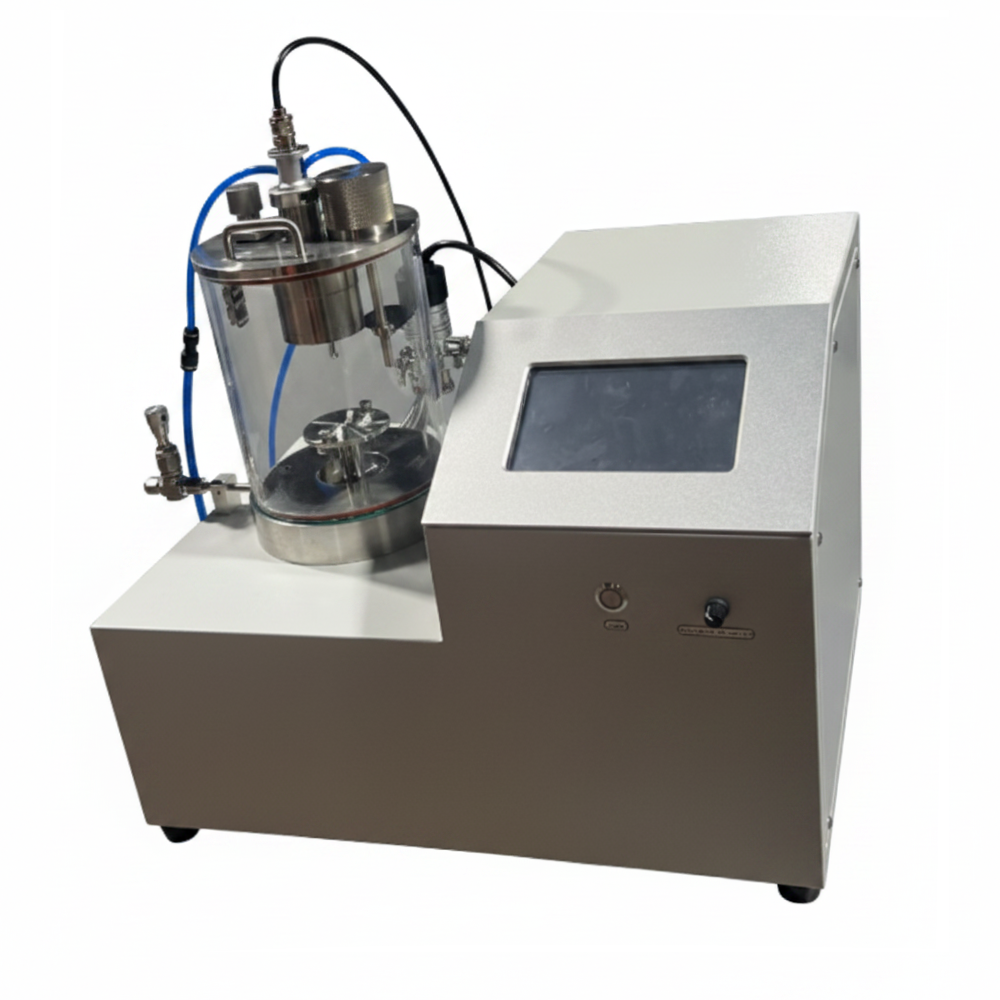

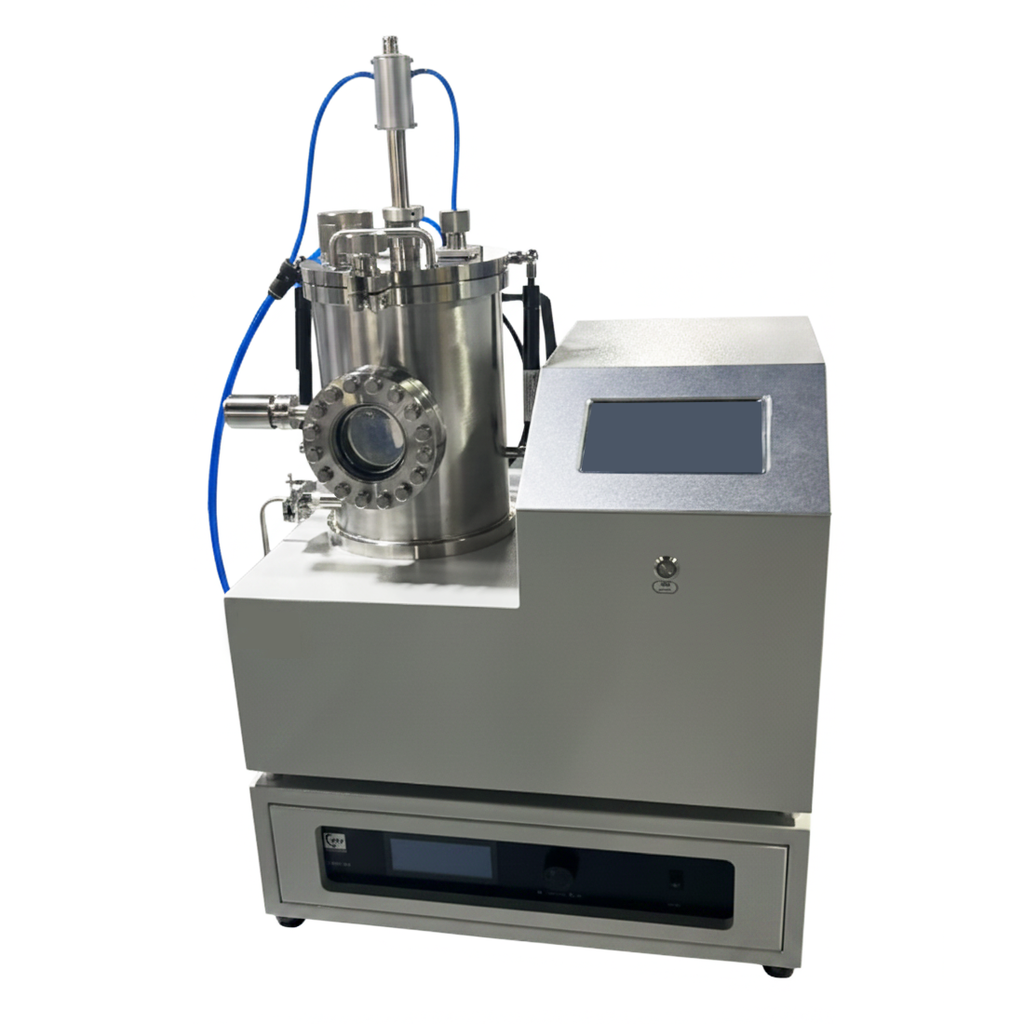

A Single-Source DC Magnetron Sputtering Coater is a streamlined Physical Vapor Deposition (PVD) system designed for depositing high-quality conductive thin films. Unlike multi-source or RF systems, this configuration is optimized for a single material target—typically a metal—making it the "workhorse" for creating current collectors, seed layers, and conductive contacts in battery research.

As for depositing metallic materials, Direct Current (DC) is the most efficient power source. (1) High Deposition Rate: DC sputtering is significantly faster than RF sputtering for metals like Copper (Cu), Aluminum (Al), Titanium (Ti), and Gold (Au). (2) System Simplicity: It does not require complex impedance matching networks, making it more reliable and easier to maintain in a busy R&D lab. (3) Cost-Effectiveness: Single-source DC units have a smaller footprint and lower power requirements, ideal for benchtop installation or integration into a single-chamber glovebox.

References:

S. Lobe, et al., Radio frequency magnetron sputtering of Li7La3Zr2O12 thin films for solid-state batteries, Journal of Power Sources, 2016, 307, 684-689

Y. Ma, et al., Materials and structure engineering by magnetron sputtering for advanced lithium batteries, Energy Storage Materials, 2021, 39, 203-224

Y. Yao, et al., Prospective of Magnetron Sputtering for Interface Design in Rechargeable Lithium Batteries, Adv. Energy Mater., 2024, 14, 2403117.
