In high-energy milling, especially at speeds reaching 1100–2200 RPM, the friction between the grinding media and the jar walls converts nearly all mechanical energy into heat. A Water-Spray Cooling Planetary Ball Mill is a specialized design that uses an atomized water mist or direct spray within the grinding chamber to manage these extreme thermal loads.

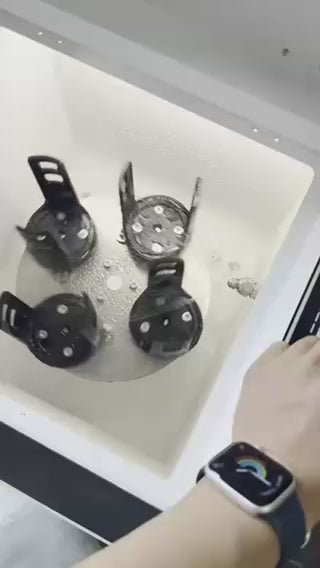

Unlike "jacketed jars" (which require complex rotary unions for water flow), the spray cooling system treats the entire grinding chamber as a heat exchanger. (1) Atomization: Nozzles located inside the mill's lid or side walls spray a fine mist of chilled water directly onto the rotating jars. (2) Evaporative Cooling: As the mist hits the hot surface of the Zirconia or Stainless Steel jars, it absorbs heat and evaporates, rapidly lowering the surface temperature. (3) Drainage & Recirculation: The water is collected at the bottom of the chamber, filtered, and sent back to your small industrial water chiller to be recooled.

References:

Q. Yan, et al., Cryogenic Milling Method to Fabricate Nanostructured Anodes, ACS Appl. Energy Mater. 2020, 3, 11, 11285–11292.

J. Liu, et al., Efficient liberation of electrode materials in spent lithium-ion batteries using a cryogenic ball mill, Journal of Environmental Chemical Engineering, 2021, 9, 106017.
