ECS-FS High-Throughput Nano High-Energy Vibratory Ball Mill (1800 rpm, 12*10 mL), EFSHTNOHEVBM

To achieve true nanosize-output, a high-energy vibratory ball mill must operate at significantly higher frequencies than standard mixers. For research in advanced battery electrodes or solid electrolytes, these mills are used to reduce particles from micrometer scales down to the 10–100 nm range through intensive impact and friction.

In a high-energy vibratory mill, the jar undergoes high-frequency, small-amplitude oscillations. This creates a "chaotic" movement of the grinding media, where the balls strike each other and the jar walls with high kinetic energy (Ek = 1/2mv^2). (1) Impact Force: Breaks down brittle crystalline structures. (2) Shear Force: Essential for exfoliating layered materials (like graphite) and refining particle size. (3) Mechanochemical Activation: The energy is often high enough to trigger chemical reactions or phase changes at the surface of the particles.

To reach the nanometer scale, the system must be optimized far beyond standard "mixing" protocols:

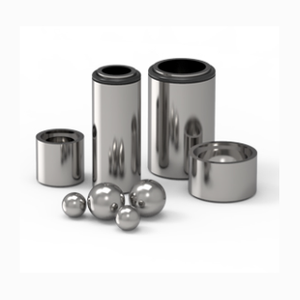

1. Grinding Media (Balls): It is highly recommended to use micro-media (0.1 mm to 1.0 mm) for the final stages. Smaller balls provide a much higher frequency of contact points per volume. Normally Yttrium-stabilized Zirconia (YSZ) is the gold standard due to its high density (6.0 g/cm3) and extreme wear resistance, preventing sample contamination.
2. Frequency and Amplitude: High-energy units typically operate at 30–60 Hz (1,800–3,600 RPM). Amplitude: Usually set between 1–10 mm. For nanosizing, a smaller amplitude at a higher frequency is often more effective at generating the necessary shear.
3. Slurry vs. Dry Milling: Wet milling is highly recommended for nanosizing. Using a solvent (ethanol, NMP, or DI water) prevents particle agglomeration (where small particles stick back together due to Van der Waals forces).

References:

T.P. Yadav, et al., Synthesis of nanocrystalline cerium oxide by high energy ball milling, Ceramics International, 2012, 38, 5783-5789

A I Gusev, et al., High-energy ball milling of nonstoichiometric compounds, Phys.-Usp., 2020, 63, 342
