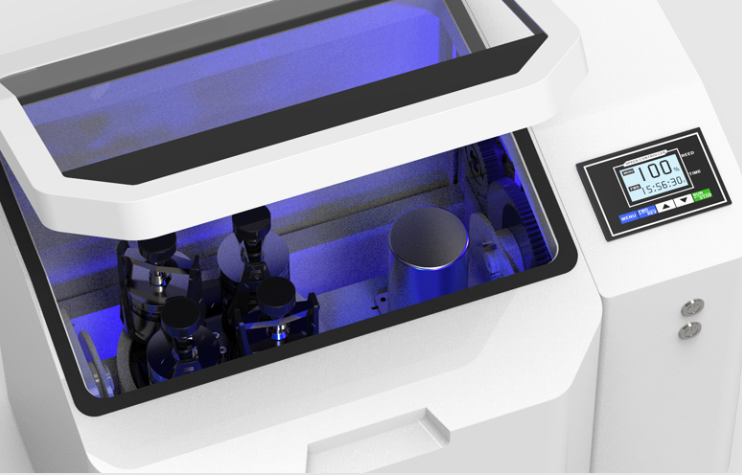

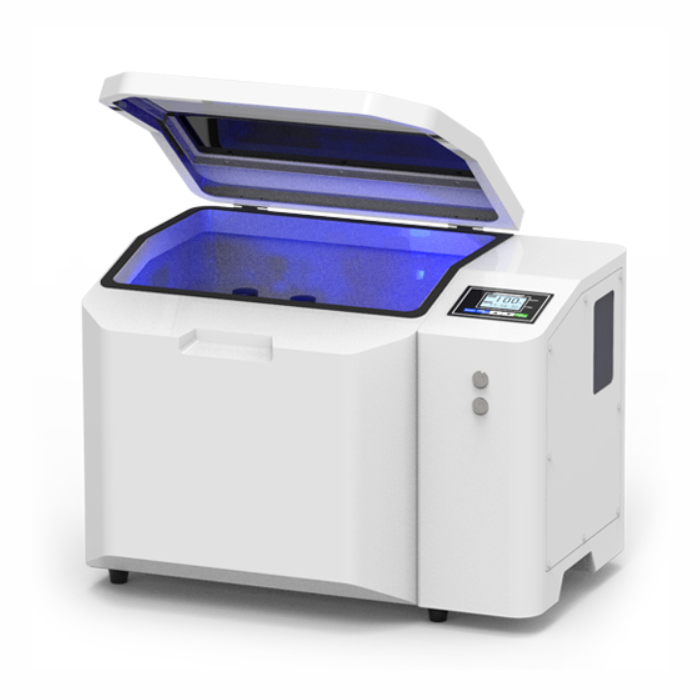

A three-dimensional (3D) high-energy planetary ball mill represents the most advanced evolution of milling technology for battery R&D. While traditional planetary mills operate on a single plane (vertical or horizontal), the 3D version introduces a secondary tilting or "swing" motion.

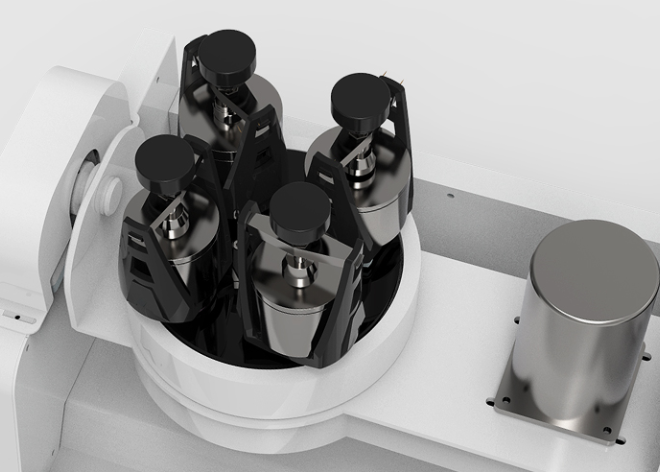

In a standard planetary mill, centrifugal force eventually causes material to "cake" at the bottom or the outer wall of the jar. The 3D mill prevents this through a complex kinematic path: (1) Sun Wheel Rotation: The primary planetary motion providing high-energy impact. (2) Jar Counter-Rotation: Provides the shear force for fine grinding. (3) 3D Swing/Tilt: The entire grinding station undergoes a rhythmic tilting motion (often referred to as a "3D vibration" or "oscillating" path).

References:

J. Gunamony, et al., Influence of mixing technique on properties of Li1.3Al0.3Ti1.7(PO4)3 solid electrolyte prepared by the solid-state reaction - A comparison of dry 3D mixing technique with wet ball-milling, Solid State Ionics, 2024, 410, 116528.

M. Hofer, et al., Effective mechanochemical synthesis of sulfide solid electrolyte Li3PS4 in a high energy ball mill by process investigation, Advanced Powder Technology, 2023, 34, 104004.

L. L. Driscoll, et al., Under pressure: offering fundamental insight into structural changes on ball milling battery materials, Energy Environ. Sci., 2023,16, 5196-5209

C. Wall, et al., Production of nanocrystalline lithium fluoride by planetary ball-milling, Powder Technology, 2014, 264, 409-417.
