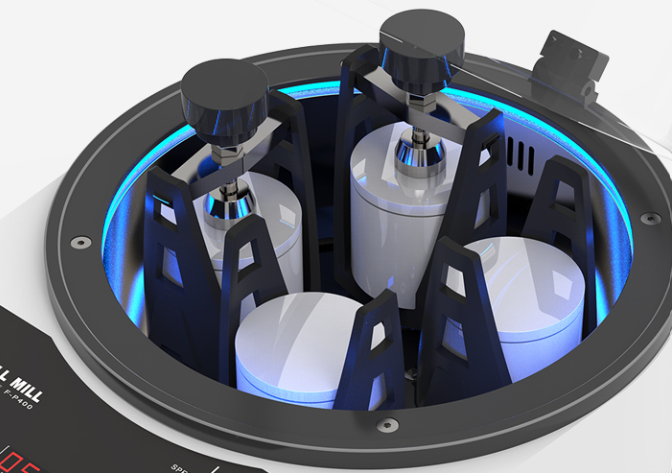

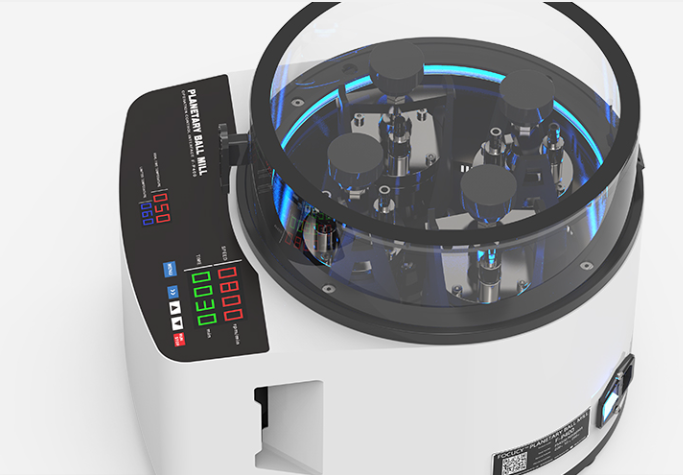

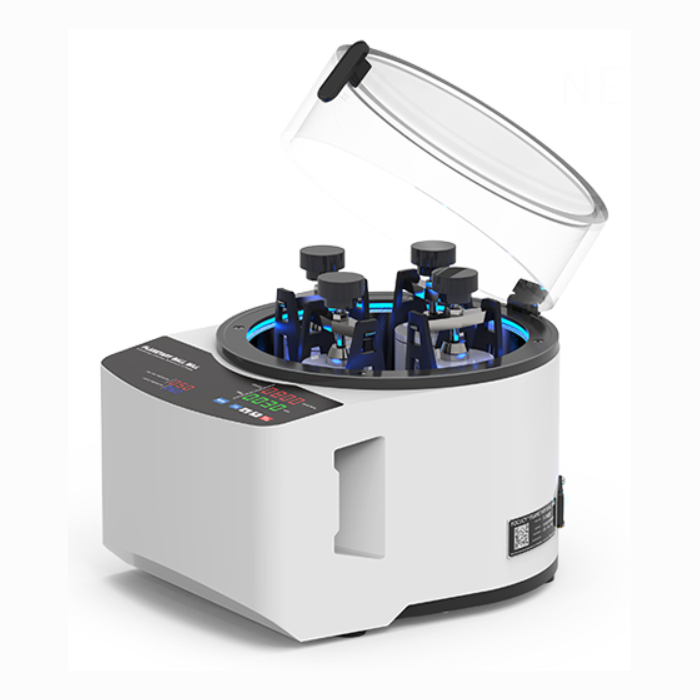

a Mini Planetary Ball Mill is a foundational too that used to reduce the particle size of active materials (like LFP or NMC) and to ensure a truly homogeneous dispersion of conductive additives (CNTs/Carbon Black) before the coating process. In a planetary mill, the grinding jars are arranged "planetarily" on a rotating sun wheel. The jars rotate in the opposite direction to the sun wheel, creating high-energy centrifugal forces that result in intensive mixing and grinding.

Traditional ball mills rely on gravity, which is too slow for nano-scale battery materials. Planetary mills provide: (1) High Energy Density: The acceleration can exceed 20g to 50g allowing you to achieve sub-micron particle sizes in minutes rather than hours. (2) Mechanical Alloying: It is excellent for "coating" active material particles with conductive carbon. (3) Uniformity: The multidimensional motion prevents material from "settling" at the bottom of the jar.

Basical working mechanism for planetary ball mill:

References:

L. L. Driscoll, et al., Under pressure: offering fundamental insight into structural changes on ball milling battery materials, Energy Environ. Sci., 2023,16, 5196-5209

C. Welch, et al., Modeling Analysis of Ball-Milling Process for Battery-Electrode Synthesis, Chem. Mater. 2024, 36, 14, 6748–6764

C. Wall, et al., Production of nanocrystalline lithium fluoride by planetary ball-milling, Powder Technology, 2014, 264, 409-417.
