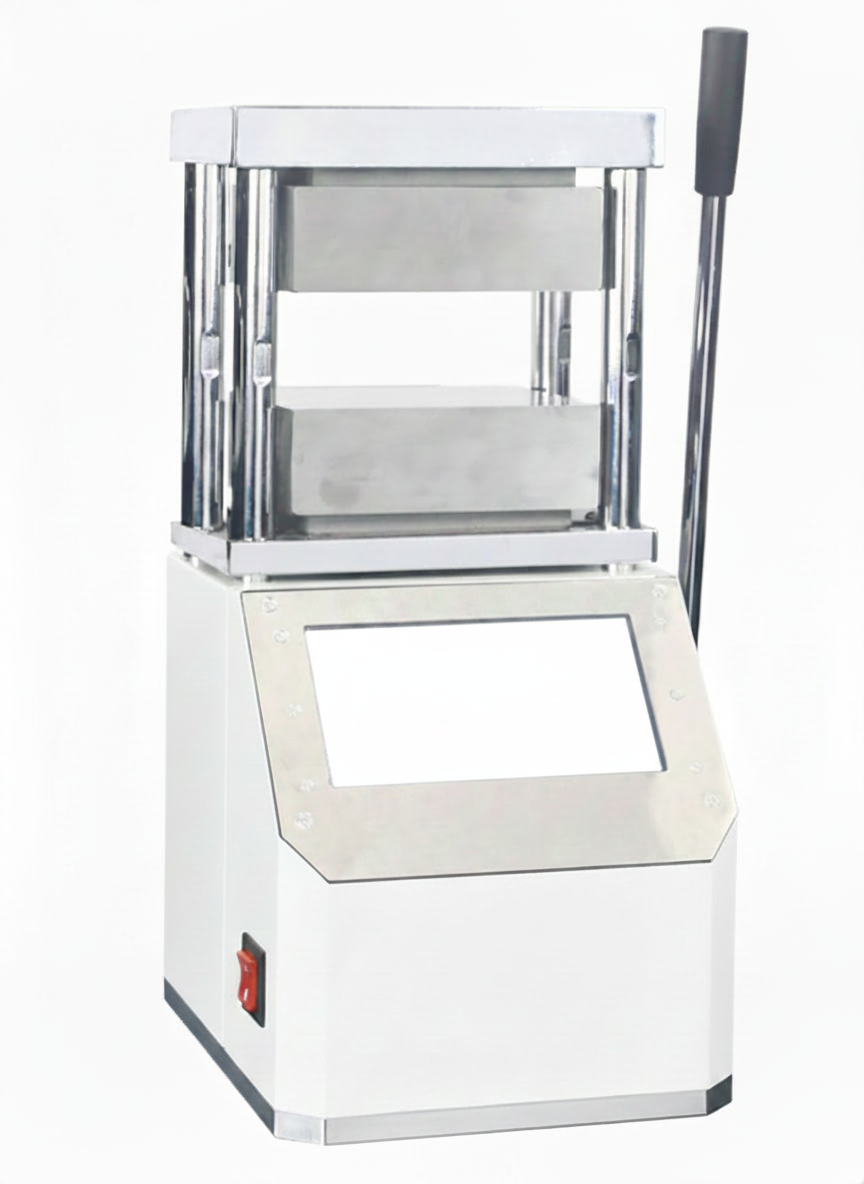

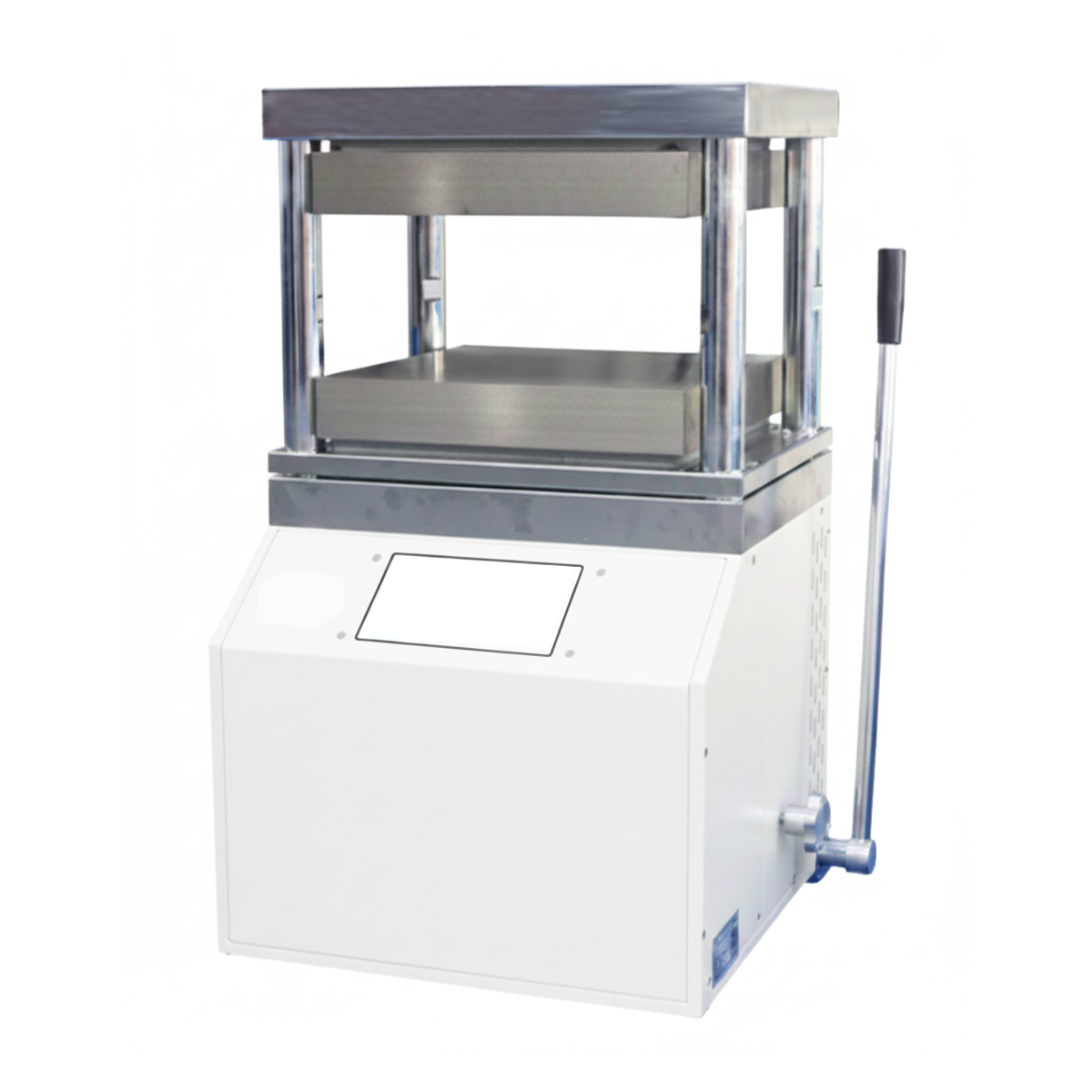

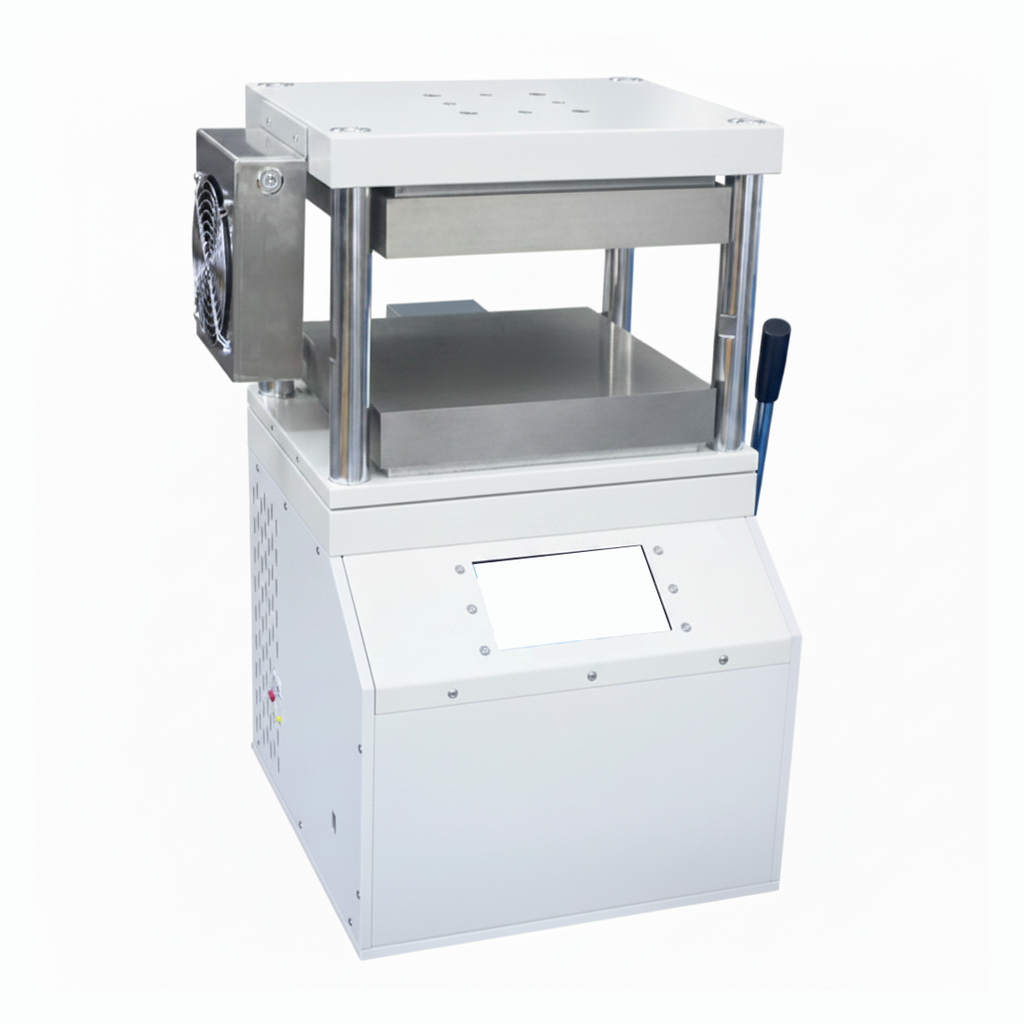

A Manual Hot Plate Press (often called a heated laboratory hydraulic press) is a foundational tool for battery and fuel cell research. In electrode manufacturing, it is primarily used for lamination and calendering (densification) of small-scale samples. For advanced battery architectures—like All-Solid-State Batteries (ASSBs), dry-film electrodes, or lithium/sodium-ion pouch cell elements—applying simultaneous heat and pressure is critical to establishing intimate interfacial contact between active materials, solid electrolytes, and current collectors.

While standard hydraulic presses can compress components at room temperature, a heated press activates specific material properties: (1) Binder Softening: Common battery binders like PVDF, PTFE, or SBR undergo glass transitions or soften when heated (typically between 60°C and 130°C). This makes them temporarily tacky and compliant, drastically improving the adhesion of the electrode "dough" or film to the metallic current collector foil. (2) Interfacial Contact in Solid-State: For solid-state batteries, contact resistance between the solid electrolyte matrix (e.g., polymer, sulfide, or oxide) and the porous electrode is a major bottleneck. Hot pressing forces these rigid particles to deform and interlock, lowering interfacial resistance. (3) Porosity Control: Heating reduces the yield strength of the electrode composite, allowing you to achieve targeted compaction and lower porosity with significantly less mechanical force than cold pressing requires.

References:

J. Zhang, et al., Investigation on mechanical and microstructural evolution of lithium-ion battery electrode during the calendering process, Powder Technology, 2022, 409, 117828

M. Abdollahifar, et al., Insights into Influencing Electrode Calendering on the Battery Performance, Adv Energy Mater., 2023, 13, 2300973.
