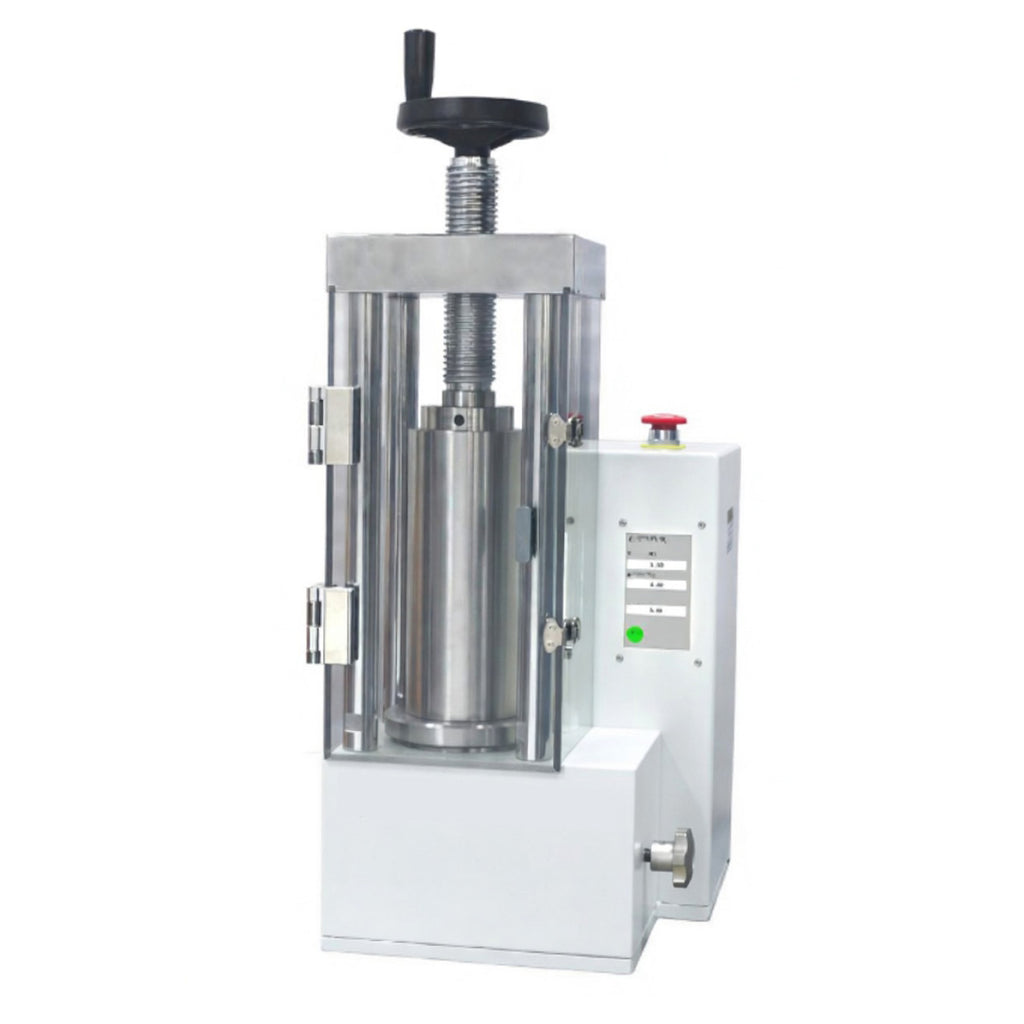

Name: ECS-HC Integrated Electric Cold Isostatic Press (CIP, 12-60T), EHCIECIP
Brand: HCLD
SKU: EHCIECIP12T

ECS-HC Integrated Electric Cold Isostatic Press (CIP, 12-60T), EHCIECIP

In Stock SKU: EHCIECIP12T

Use your own shipping account?

We support FedEx, UPS, and DHL third-party billing for institutional customers.

Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.

Review third-party shipping terms →

An Integrated Electric Cold Isostatic Press (Integrated Electric CIP) is a highly optimized, single-chassis system designed to house the electric motor, high-pressure hydraulic pump, vessel, and digital controller within one cohesive, streamlined machine. Unlike split systems—where fluid hoses and wires snake across your workspace—an integrated electric CIP is designed to be a drop-in plug-and-play solution.

In an integrated unit, the entire hydraulic loop is self-contained. High-end laboratory models use a monoblock structure, which merges the oil pool, mainboard, and pressure cylinder into a single metal casting. The advantages of the integrated version are: (1) Minimized Leak Paths: Eliminating external high-pressure hoses and adapters drastically reduces potential hydraulic leak points inside your glovebox. (2) Space Efficiency: The layout is engineered vertically rather than horizontally, giving it an exceptionally small countertop footprint.

Operation Procedures

(1) Load the powder into the rubber module and sell it well.

(2) Put the rubber module into the CIP die.

(3) Seal the CIP die and tighten the gas release valve.

(4) Rotate the pressing rod down and touch the CIP die surface. Close the safety door and tighten the hydraulic oil valve.

(5) Set the pressure on touch screen and start the pressurization to the target value.

(6) After pressure retention for certain time, rotate the oil valve to release the pressure.

(7) Open the safety door and loose the pressure screw on the CIP die.

(8) Screw the top pressing die and take it out from the CIP.

(9) Take the rubber module out from the CIP die.

(10) Take the processing sample out from the rubber module.

Part Number	EHCIECIP (EHC-IECIP)
Power	AC110 or AC220V±10%, 50/60Hz, 400W
General Features	Electric PCB programmable pressure increment, pressure compensation, and manual pressure release No time limit for pressure retention Touch screen control panel for parameter setting and display Four pillars for stable support
12 T Version Features	0.3-12.0 T, accuracy: 0.1 T Cylinder Diameter: Φ95mm Piston Traverse Distance: ≤40mm CIP Die Inner Chamber: Φ22×150mm Chamber Material: #13 die steel Maximum Pressure: ≤300 MPa/12T Pressure Stabilization Level: ≤1Mpa/10min Dimension: L305 * W195 * H535 mm Weight: 80 kg
24 T Version Features	0.3-24 T, accuracy: 0.1 T Cylinder Diameter: Φ95mm Piston Traverse Distance: ≤40mm CIP Die Inner Chamber Size: Φ22×150mm Chamber Material: #13 die steel Maximum Pressure: ≤300 MPa/22T Pressure Stabilization Level: ≤1Mpa/10min Dimension: L300 * W360 * H680 mm Weight: 140 kg
40 T Version Features	0-40 T, accuracy: 0.1 T Cylinder Diameter: Φ130mm Piston Traverse Distance: ≤40mm Chamber Size: Φ40×150mm Chamber Material: #13 die steel Maximum Pressure: ≤300 MPa/22T Pressure Stabilization Level: ≤1Mpa/10min Dimension: L350 * W340 * H720 mm Weight: 170 kg
60 T Version Features	0.5-60 T, accuracy: 0.1 T Cylinder Diameter: Φ150mm Piston Traverse Distance: ≤40mm Chamber Size: 50×150mm Chamber Material: #13 die steel Maximum Pressure: ≤300 MPa/60T Pressure Stabilization Level: ≤1Mpa/10min Dimension: L370 * W350 * H720 mm Weight: 230 kg
Certificate	CE certificate UL and CSA certificate are available upon request with additional charge
Warranty	One year warranty and lifetime technical support/service
