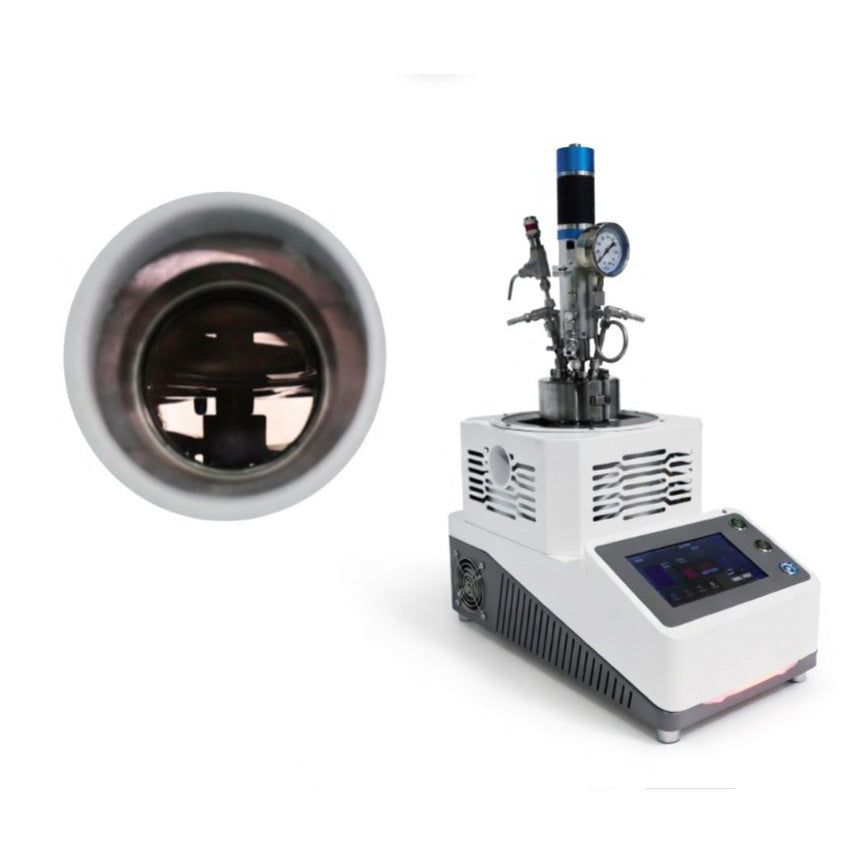

ECS-KM High Pressure Batch Reactor (Max. 10 MPa, 300°C) with Mechanical Shaft Stirring & Observation Window, EKMHPBRMSSOW

A high-pressure batch reactor with mechanical shaft stirring and an observation window (often referred to as a high-pressure view cell or optical autoclave) is designed for monitoring phase behavior, solubility, color shifts, crystallization, and multiphase fluid dynamics under extreme conditions. Combining active mechanical agitation with direct visual access presents unique engineering challenges, particularly around seal integrity and window mechanical strength.

Mechanical Shaft Sealing (Magnetic Drive): To maintain pressures above 10-200 bar without leaks, high-pressure stirred reactors rely on magnetic drive couplings (mag-drives) rather than traditional direct dynamic shaft seals: (1) Zero-Leakage Coupling: The drive motor spins external permanent magnets outside a sealed pressure housing, which magnetically couples to internal magnets on the central impeller shaft inside the vessel. (2) Agitator Selection: Impeller geometry depends on phase mixing goals—Gas-Induction (hollow-shaft) impellers for high-pressure gas-liquid hydrogenation/carbonylation, or Anchor/Pitched-Blade turbines for viscous slurries and polymerizations.

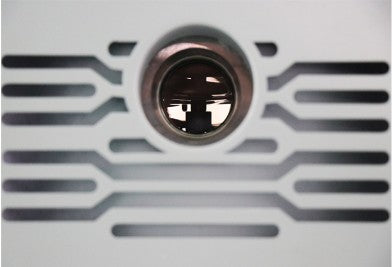

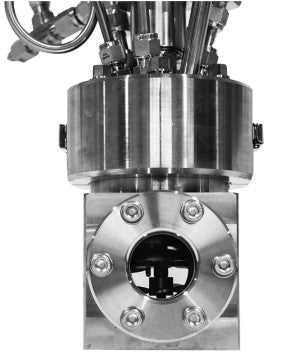

Integrating transparent sight ports into high-pressure metallic vessels requires balancing light transmission with yield strength: The synthetic sapphire (Al2O3) can sustain up to 350 bar and 400°C and has outstanding compressive strength, scratch resistance, and IR/UV transmission. Ideal for harsh chemical environments.

References:

1. N. Gemo, et al., Mass transfer and kinetics of H2O2 direct synthesis in a batch slurry reactor, Chemical Engineering Journal, 2012, 207, 539-551
2. S. Yu, et al., Decoupled temperature and pressure hydrothermal synthesis of carbon sub-micron spheres from cellulose, Nature Communications, 2022, 13, 3616.
