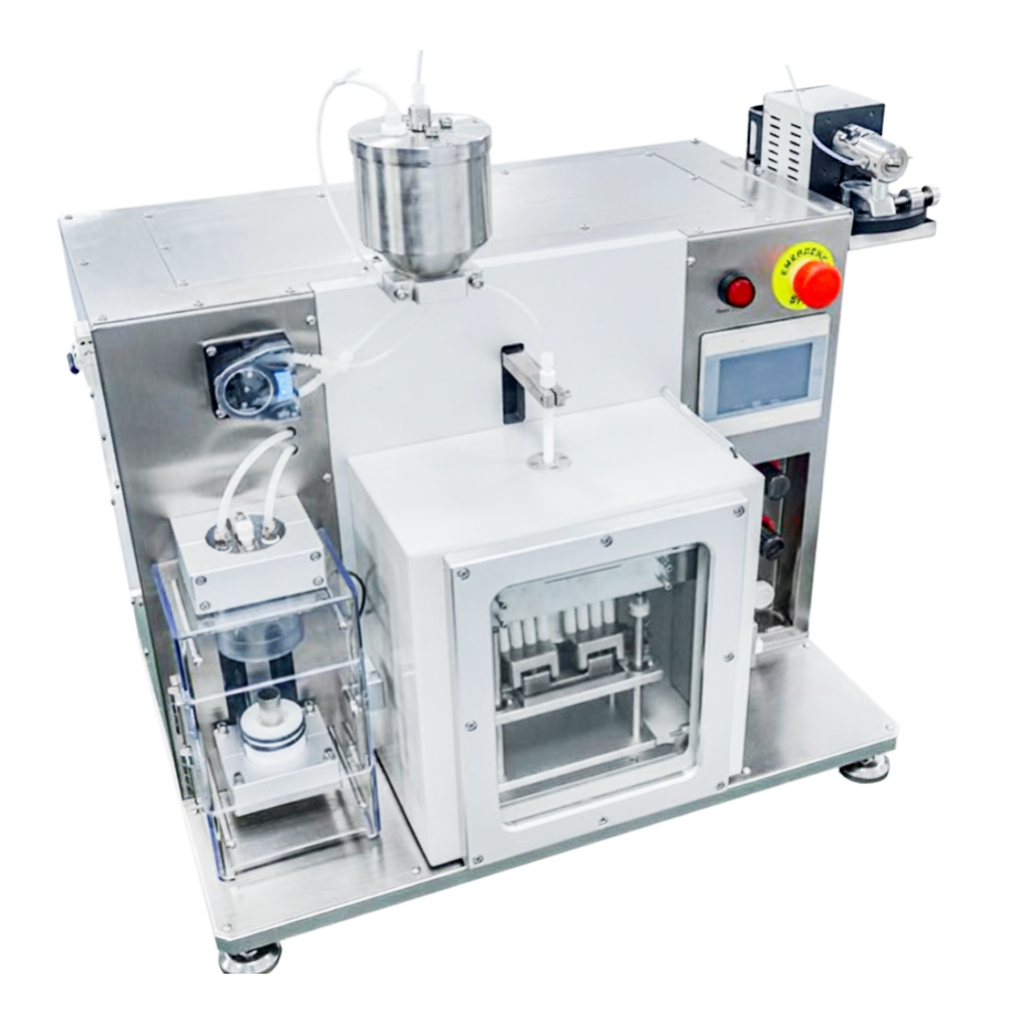

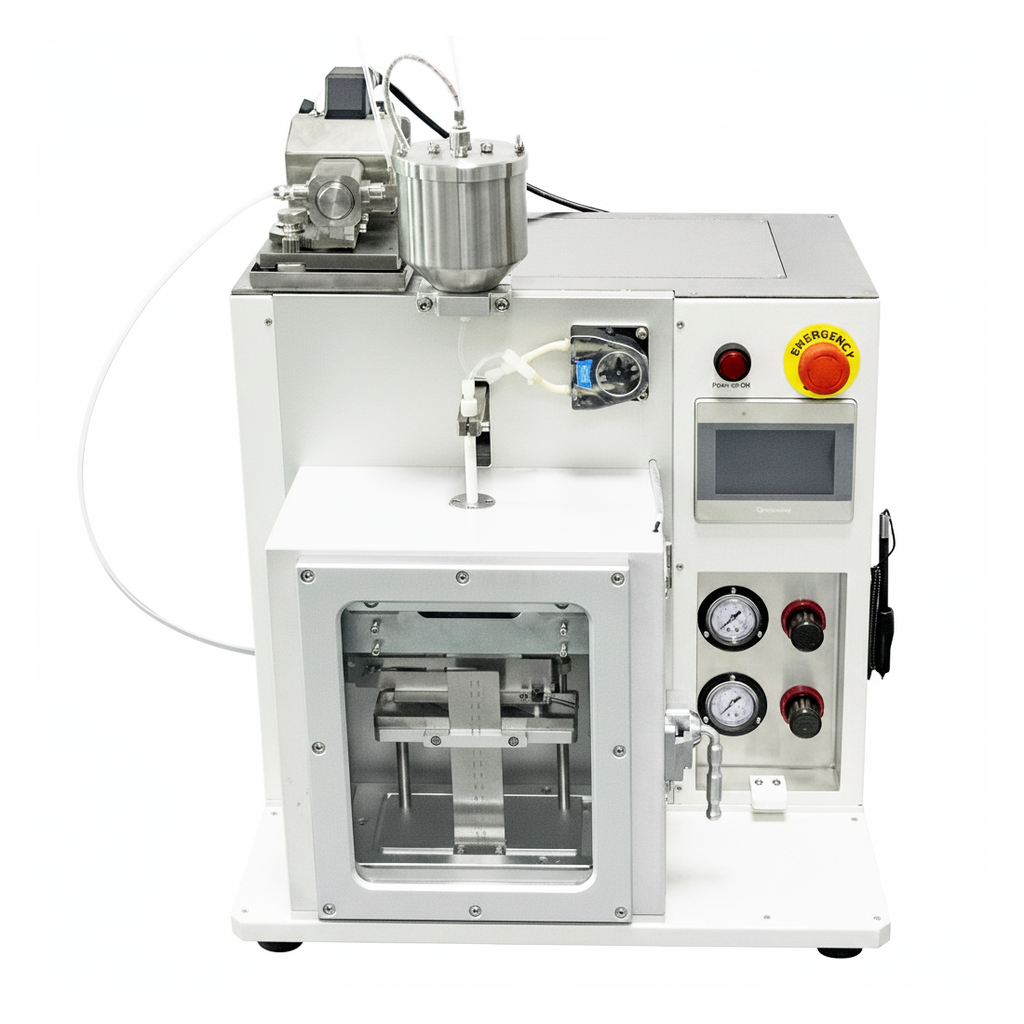

Name: ECS-SM Hybrid Vacuum Electrolyte Filling & Sealing Machine for Pouch (180*180 mm) & Cylindrical Cells (18650-4680), ESMHVEFSM
Brand: SZKJ
SKU: ESMHVEFSMP

ECS-SM Hybrid Vacuum Electrolyte Filling & Sealing Machine for Pouch (180*180 mm) & Cylindrical Cells (18650-4680), ESMHVEFSM

In Stock SKU: ESMHVEFSMP

Use your own shipping account?

We support FedEx, UPS, and DHL third-party billing for institutional customers.

Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.

Review third-party shipping terms →

Vacuum electrolyte filling is a critical step in battery fabrication, ensuring the porous electrodes and separators are fully "wetted." Without a vacuum, air pockets (dry spots) remain, leading to poor capacity, high internal resistance, and shortened cycle life.

For pouch cells, the machine often combines injection, vacuum standing, and sealing into one unit or a modular glovebox line. The cell is typically pre-sealed on three sides. Electrolyte is injected into the open side, and the cell is placed in a vacuum chamber. The vacuum pulls air out of the pouch, and when the vacuum is released, the external atmospheric pressure "pushes" the electrolyte into the electrode pores. The key features are: (1) Vacuum Standing: A chamber where the cell sits under vacuum to allow for degassing and diffusion. (2) Vacuum Sealing Specialized heat-sealing bars that operate inside the vacuum chamber to close the final side of the pouch.

As for the vacuum electrolyte filling in cylindrical cell, a nozzle creates a tight seal around the cell opening, pulls a vacuum directly from the cell interior, and then injects a precise volume of electrolyte

Part Number	ESMHVEFSM (ESM-HVEFSM)
Power	AC110V or 220V±10%, single phase, 50/60Hz, 1200 W
Electrolyte Filling Features	Pouch Cell Sizes: Max. L180W180T12 mm Cylindrical Cel Size: 18650, 21700, and 4680. Pouch Sealing Blade Length: 190 mm (effective sealing length is 180 mm) Pouch Sealing Width: 2-10 mm (standard value is 6 mm) Pouch Sealing Thickness (tab area): 0-0.5 mm Sealing Pressure: Max. 70 kgf (~0.6 MPa). The pneumatic force can be supplied by gas pressure from an Ar gas tank. Sealing Time: 0-99 s (5-6 s is recommended) Vacuum Pressure: Max. -95 kPa (adjustable) High precision peristaltic pump is used for electrolyte transfer and filling. Accuracy: 5 g (±1.5%); 50 g (±1%); 100 g (±0.8%). Electrolyte Filling Time: ~2-3 min (50g electrolyte as an example) Electrolyte Filling Needle: PTFE, O.D. 3mm, I.D. 2mm Electrolyte Transfer Tubing: BPT, O.D. 6.4 mm, I.D. 3.2 mm Peristaltic Pump Tubing: soft BPT, O.D. 5mm, I.D. 3 mm Electrolyte Buffer Tank: 150 mL (inside is PTFE layer)
Glovebox Operation Compatibility	The KF40 feedthrough with gas/vacuum tubing and power cable is included to connect the outside vacuum pump and gas pressure tank. The electrolyte filling machine is glovebox compatible.
Electrolyte Filling Channels (Optional)	The customized electrolyte filling machine with multiple channels (to avoid cross-contamination) is available upon request.
Vacuum Pump (Optional)	A vacuum pump (EDSRVVP) is required to provide high vacuum for standing and sealing.
Gas Pressure Source (Optional)	For the vacuum electrolyte filling machine placed inside glovebox, an Ar gas tank (60-80 psi) is required to connect with electrolyte filling machine through KF40 feedthrough. When the electrolyte filling machine is placed inside a dryroom, then a gas compressor (EUQOFGC) can be considered.
Certificate	CE certified UL and CAS certification can be supplied upon request with additional cost.
Dimension	L550 * W480 * H650 mm (glovebox-compatible)
Weight	~76 kg
