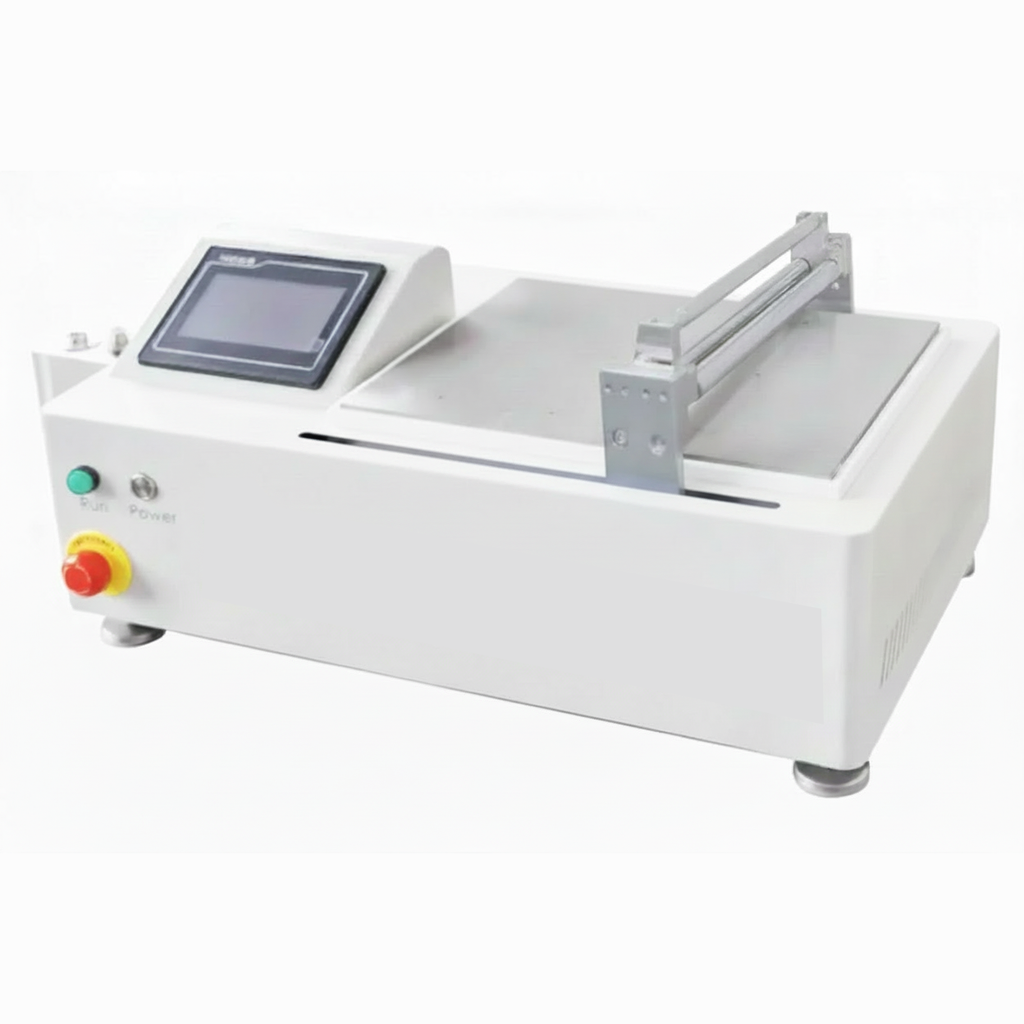

A 2-in-1 (multifunctional) tape casting coater is designed to support both doctor blade and wire rod coating methods on a single machine. This versatility is perfect for labs that need to switch between high-viscosity battery pastes and ultra-thin, low-viscosity functional coatings.
| Part Number |
|
| Power |
- AC220V±10%, single phase, 50/60Hz, 1000 W
- AC110V can be customized upon request or equipped with a 1500W transformer.
|
| Coating Area |
- The vacuum bed supports a coating area of L200*W200mm.
|
| Coating Speed |
|
| Bottom Resistance Heating |
- Bottom Heating Temperature: Max. 160 ℃ (single-point control)
- Small vacuum holes: φ3 mm
- Surface Flatness: ≤5um
|
|
Film Applicator (Optional)
|

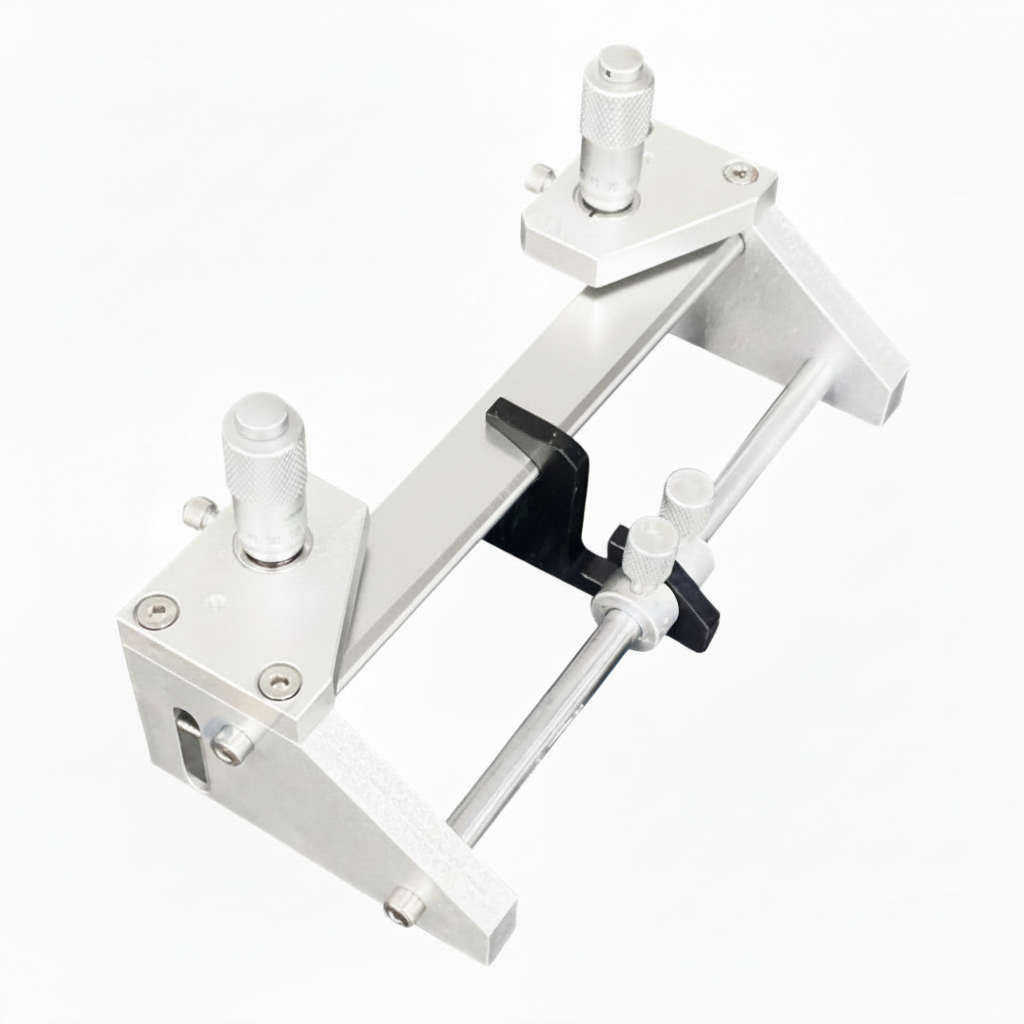

- (1) Film Applicator with an Adjustable Width, ESMAFAACW
- The maximum coating width is 150 mm, and adjustable coating width can be realized by moving the central plate.
- Adjustable gap: 0-3 mm (mechanical gauge, 10 um resolution). The digital gauge can be upgraded upon request.
-

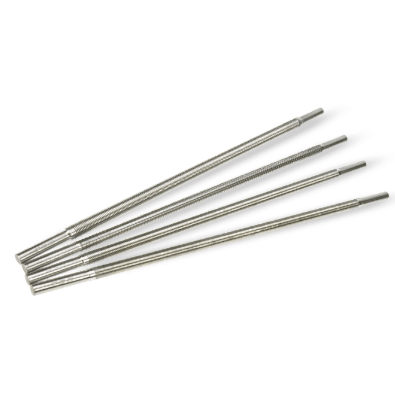

(2) Wire Rod (ESMAWRW200)
The maximum coating width for the wire rod (D=10mm) is 200 mm (other coating widths also can be supplied upon request).
-
The wire groove diameter (determine the coating width, not the physical rod diameter): 6 um, 8 um, 10 um, 12 um, 15 um, 20 um, 25 um, 30 um, 40 um, 50 um, 60 um, 80 um, 100 um, 150 um, and 200 um are available. Only
- Theoretically the dry coating thickness T = 0.5 * (wire groove diameter) * (transfer coefficient) * (solid-state content); Normally the transfer coefficient is in 0.5-0.7 and we will choose 0.6 as a typical value.
-
Note: The 3-in-1 tape casting coater with doctor blade, wire rod, and slot die can be customized upon request.
|
| Vacuum Pump |
- An vacuum pump is externally connected for sucking the substrate on vacuum bed
|
| Certification |
- CE certified
- UL and CSA certification is available upon request at extra cost
|
| Dimension |
- L500 * W320 * H240 mm for main coater (glovebox-compatible)
|
| Weight |
|
References:
F. Shen, et al., Tape Casting of Thin Electrolyte and Thick Cathode for Halide-Based All-Solid-State Batteries, J. Electrochem. Soc., 2023, 170, 100505
M. S. Kim, et al., Multifunctional Separator Coatings for High-Performance
Lithium–Sulfur Batteries, Adv. Mater. Interfaces, 2016, 3, 1600450.
