ECS-SM Tape Casting Coater with Infrared Heating Cover (120℃) and Vacuum Bed (L270*W200 mm), ESMTCCIHCVB
  • ECS-SM Tape Casting Coater with Infrared Heating Cover (120℃) and Vacuum Bed (L270*W200 mm), ESMTCCIHCVB
  • ECS-SM Tape Casting Coater with Infrared Heating Cover (120℃) and Vacuum Bed (L270*W200 mm), ESMTCCIHCVB
ECS-SM Tape Casting Coater with Infrared Heating Cover (120℃) and Vacuum Bed (L270*W200 mm), ESMTCCIHCVB

ECS-SM Tape Casting Coater with Infrared Heating Cover (120℃) and Vacuum Bed (L270*W200 mm), ESMTCCIHCVB

In Stock SKU: ESMTCCIHCVB
Use your own shipping account?

We support FedEx, UPS, and DHL third-party billing for institutional customers.

Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.

Review third-party shipping terms →

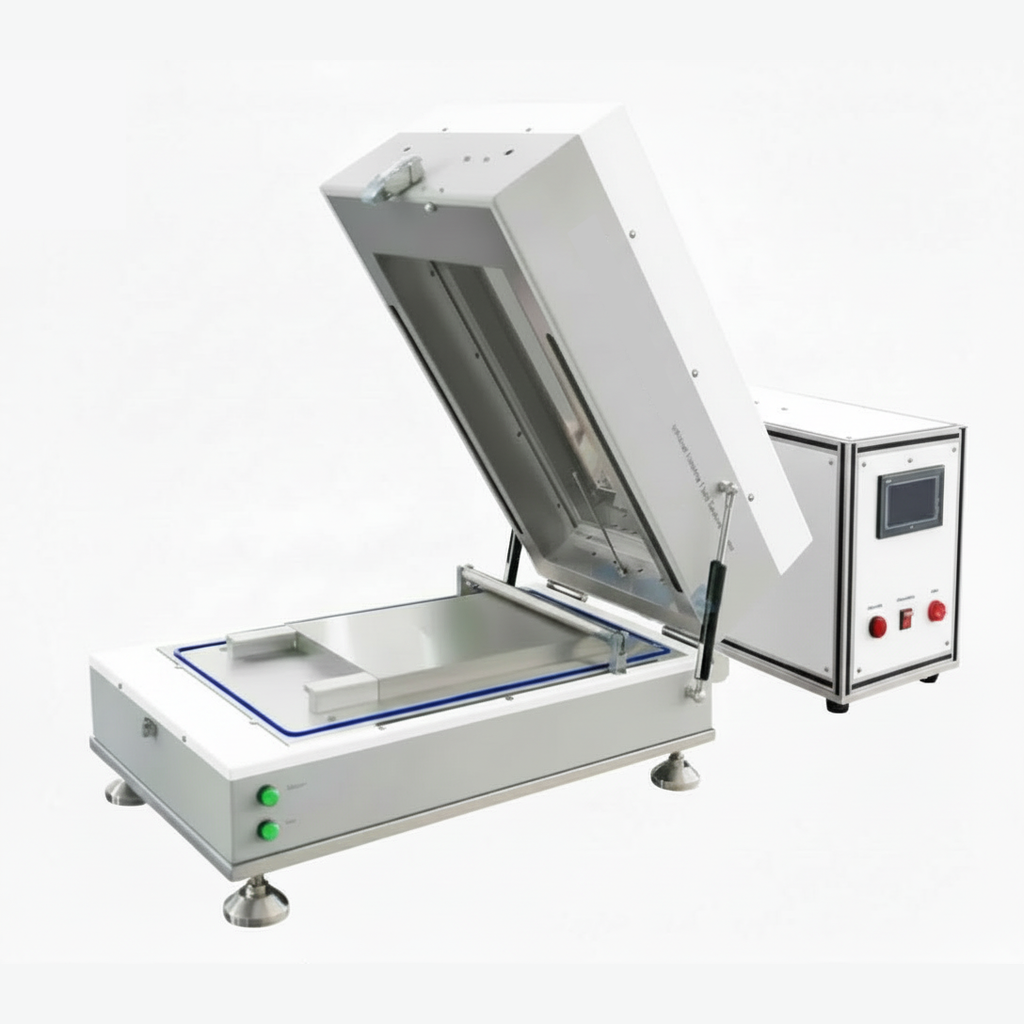

For lab-scale tape casting (also known as doctor blade coating), a tape casting coater with an infrared (IR) heating cover and vacuum bed provides a dual-advantage: the vacuum bed ensures the substrate stays perfectly flat during the stroke, while the IR cover enables rapid, uniform drying from the surface down. This is particularly effective for thick electrodes or ceramic tapes where "skinning" (trapped solvent under a dried surface layer) is a common defect.

Part Number
  • ESMTCCIHCVB (ESM-TCCIHCVB)
Power
  • AC220V±10%, single phase, 50/60Hz, 2200 W
  • AC110V can be customized upon request or equipped with a 3000W transformer.
Coating Area
  • The whole vacuum bed area is L300*W200mm, which enable the effective coating area is L270mm * W150 mm (depends on the film applicator is used).
Coating Speed
  • 20-120 mm/s
Heating Temperature
  • IR heating cover: Max. 120 ℃ (single-point control)
  • No resistance heating at bottom, which is good for cooling process for double-side coating (after one side coating)

Film Applicator
  • Film Applicator with an Adjustable Width, ESMAFAACW
  • The maximum coating width is 150 mm, and adjustable coating width can be realized by moving the central plate.
  • Adjustable gap: 0-3 mm (mechanical gauge, 10 um resolution). The digital gauge can be upgraded upon request.


Vacuum Pump
  • An vacuum pump is built-in for sucking the substrate on vacuum bed
  • Vacuum level: -84 KPa, Max. flow rate: 30 L/min, 120 W
Certification
  • CE certified
  • UL and CSA certification is available upon request at extra cost
Dimension
  • L670 * W370 * H370 mm for main coater (glovebox-compatible)
  • L540 * W260 * H430 mm for control box
Weight
  • ~100 kg (70 kg for coater and 30 kg for control box)



References:

F. Shen, et al., Tape Casting of Thin Electrolyte and Thick Cathode for Halide-Based All-Solid-State Batteries, J. Electrochem. Soc., 2023, 170, 100505

M. S. Kim, et al., Multifunctional Separator Coatings for High-Performance
Lithium–Sulfur Batteries, Adv. Mater. Interfaces, 2016, 3, 1600450.
