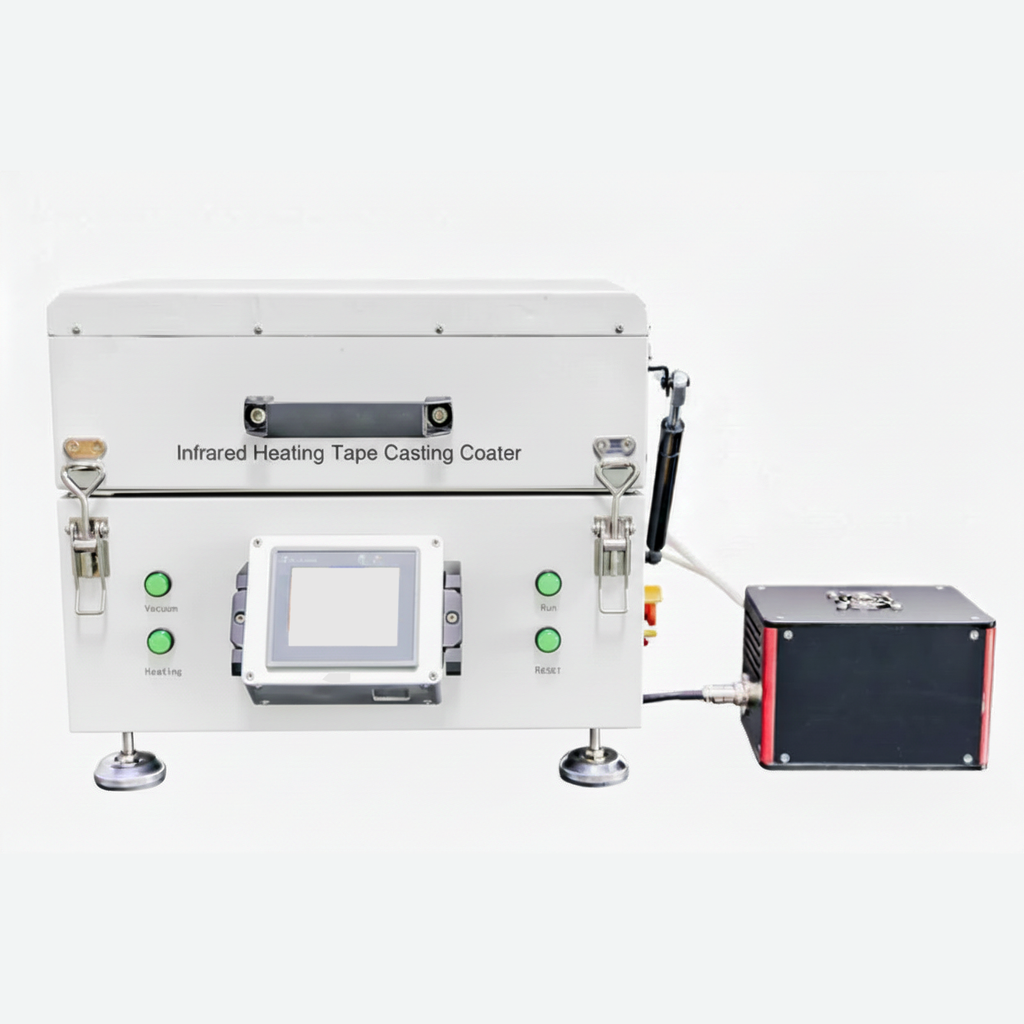

• ESSMTCCIHCVB (ESS-MTCCIHCVB)

• AC220V±10%, single phase, 50/60Hz, 1300 W
• AC110V can be customized upon request or equipped with a 2000W transformer.

• The whole vacuum bed area is L230*W120mm, which enable the effective coating area is L220mm * W100 mm (depends on the film applicator is used).


• 1-30 mm/s

• IR heating cover: Max. 120 ℃ (single-point control)
• Resistance heating bottom: Max. 120 ℃ (single-point control)
• Realizing the simultaneous heating at the top and bottom.

Film Applicator (Optional)

• Option 1: Four Side Film Applicator with Fixed Gap


            The standard one (effective coating width of 80mm) has four-side

            gap of 100 um, 150 um, 200 um, and 250 um. Other options can

            be found here (ESSAFSFAFG).

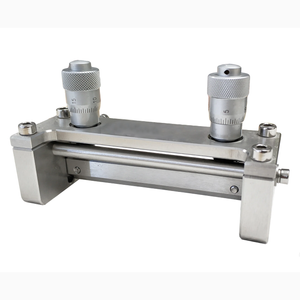

• Option 2: Standard Film Applicator with Adjustable Gap, ESSAFAW80

  The standard coating width is 100 mm and adjustable gap is 0-3 mm (resolution: 5 um).

• Option 3: Hybrid Fim Applicator (Doctor + Slot Die), ESSAHFAW80

  The standard coating width for the doctor blade is 100 mm and adjustable gap is 0-6 mm (resolution: 5 um)
  The standard coating width for the slot die head is 80mm. The inside channel volume is 2 mL. The shims with thickness of 0.1, 0.2, 0.3, 0.4, 0.5 mm are included.

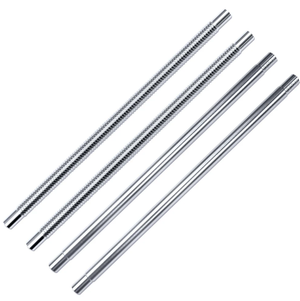

• Option 4: Wire Rod (ESSAWRW100)

  The maximum coating width for the wire rod (D=10mm) is 100 mm. The wire groove diameter (determine the coating width, not the physical rod diameter):  6 um, 8 um, 10 um, 12 um, 15 um, 20 um, 25 um, 30 um, 40 um, 50 um, 60 um, 80 um, 100 um, 150 um, and 200 um are available.
