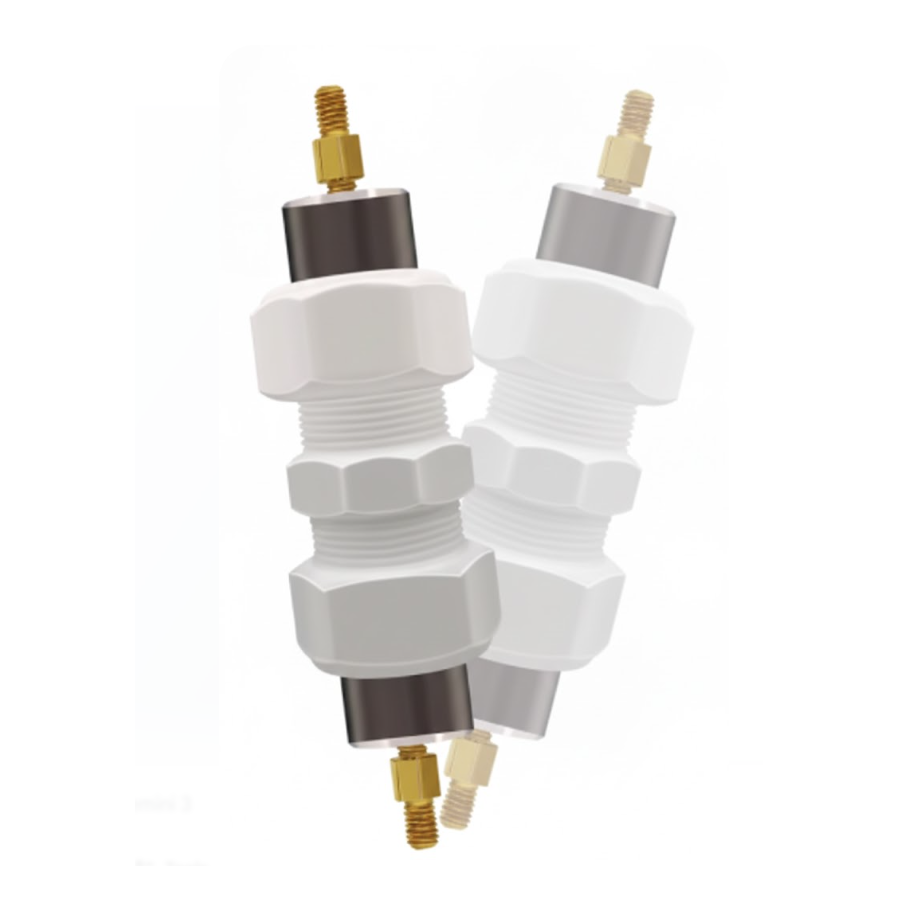

Two-Electrode Swagelok Cell (I.D.= 12, 20 mm) for Battery Testing, CBT2ESC
Use your own shipping account?
We support FedEx, UPS, and DHL third-party billing for institutional customers.
Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.
Swagelok cell testing is a specialized laboratory technique used to evaluate battery materials (anodes, cathodes, and electrolytes) in a controlled, air-tight environment. Named after the gas tubing fittings used to construct the cell body, these cells are a "standard" in research because they provide a high-pressure, reproducible geometry that is easy to assemble and disassemble in a glovebox.
| Part Number |
CBT2ESC (C-BT-2ESC) |

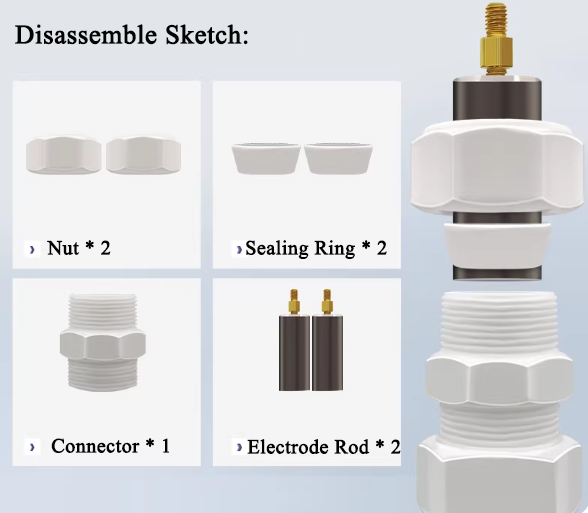

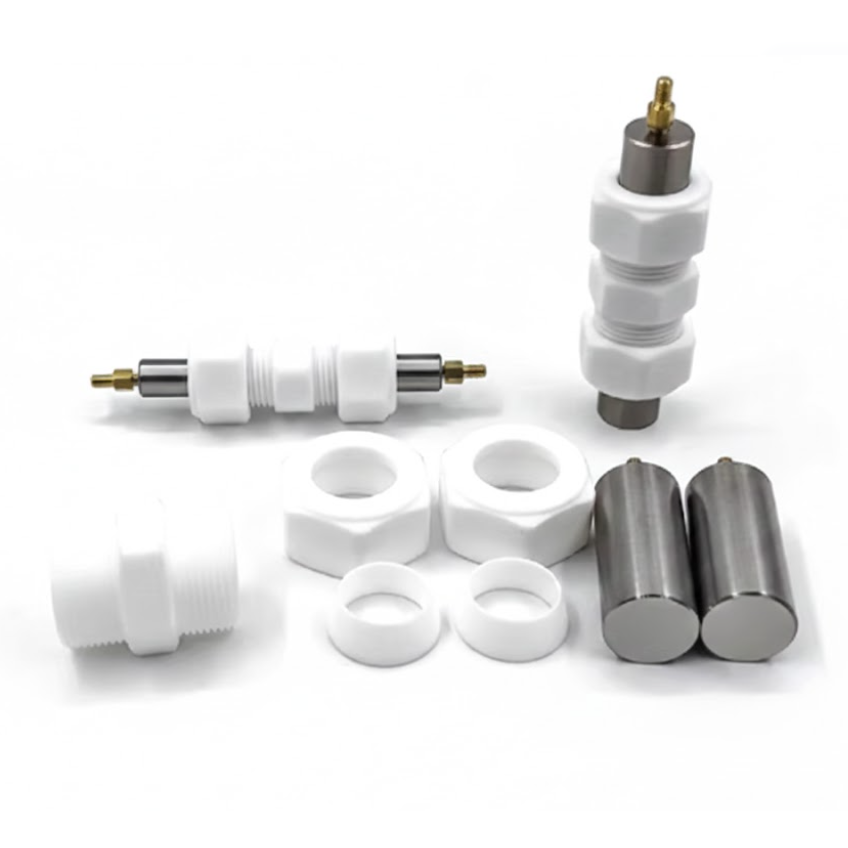

| Structure/Components |
Top/Bottom Metal Part: Pure Ti (suitable for most battery electrolytes)
Sleeve or cell body: PTFE
|
| Cell Sizes |

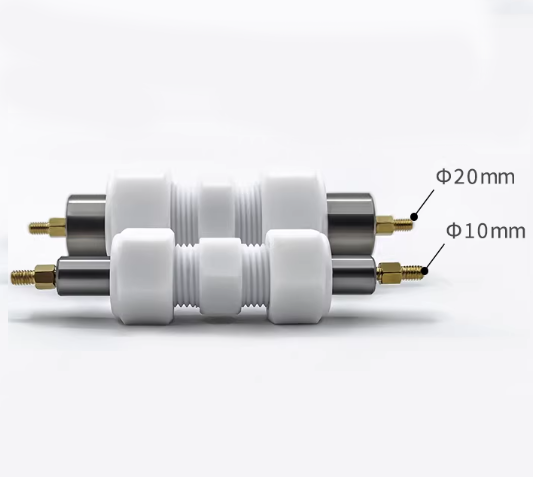

Standard I.D: 12 mm, 20 mm (Any other sizes, such as 10 mm, 14 mm, 16 mm are available upon request) |
| Max. Operation Temperature |
200 ºC under tightening pressure
|
| Customized Options |
(1) If the battery electrolyte is highly acidic or alkaline, the cell body with pure Mo can be supplied.
(2) If customer wants the upgrade version with spring structure, we can provide it upon request.

|
| Note | The cell components should be thoroughly cleaned and dried after use. |
