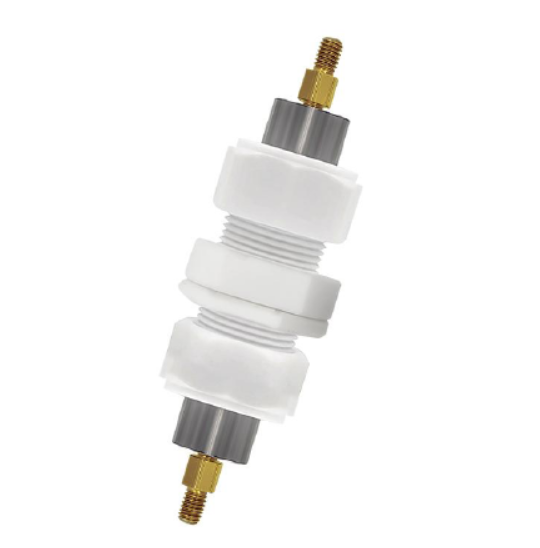

Two-Electrode Swagelok Cell (I.D.= 12, 20 mm) for Dual-Electrolyte Battery Testing, CDEBT2ESC
Use your own shipping account?
We support FedEx, UPS, and DHL third-party billing for institutional customers.
Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.
A dual electrolyte battery system is an advanced electrochemical design that uses two distinct electrolytes—typically an anolyte for the anode and a catholyte for the cathode—separated by a membrane or a stable interface. This configuration allows each electrode to operate in its own optimized chemical environment (such as different pH levels or solvent types), which is often impossible in standard single-electrolyte batteries.
Testing these batteries often requires specialized Swagelok cells or custom-built flow cells to maintain the separation of the two liquids
| Part Number |
CDEBT2ESC (C-DEBT-2ESC) |

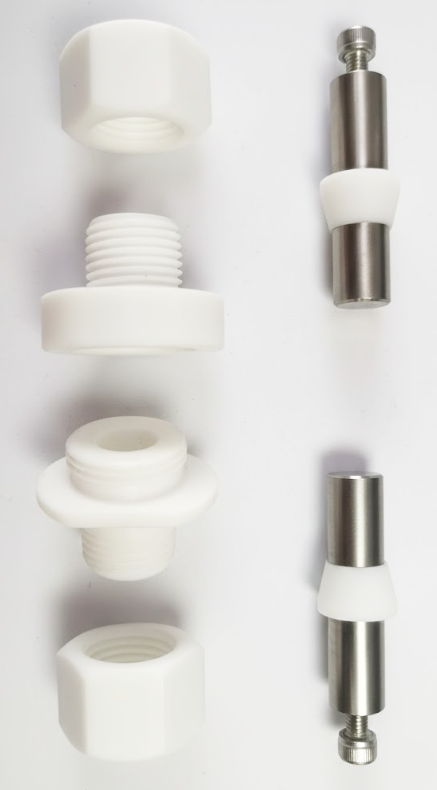

| Structure/Components |
Top/Bottom Metal Part: Ti Alloy (suitable for most battery electrolytes)
Sleeve or cell body: PTFE
|
| Cell Sizes |
Standard I.D: 12 mm, 20 mm (Any other sizes, such as 10 mm, 14 mm, 16 mm are available upon request) |
| Max. Operation Temperature |
200 ºC under tightening pressure
|
| Customized Options |
(1) If the battery electrolyte is highly acidic or alkaline, the cell body with pure Mo can be supplied.
|
| Note | The cell components should be thoroughly cleaned and dried after use. |
