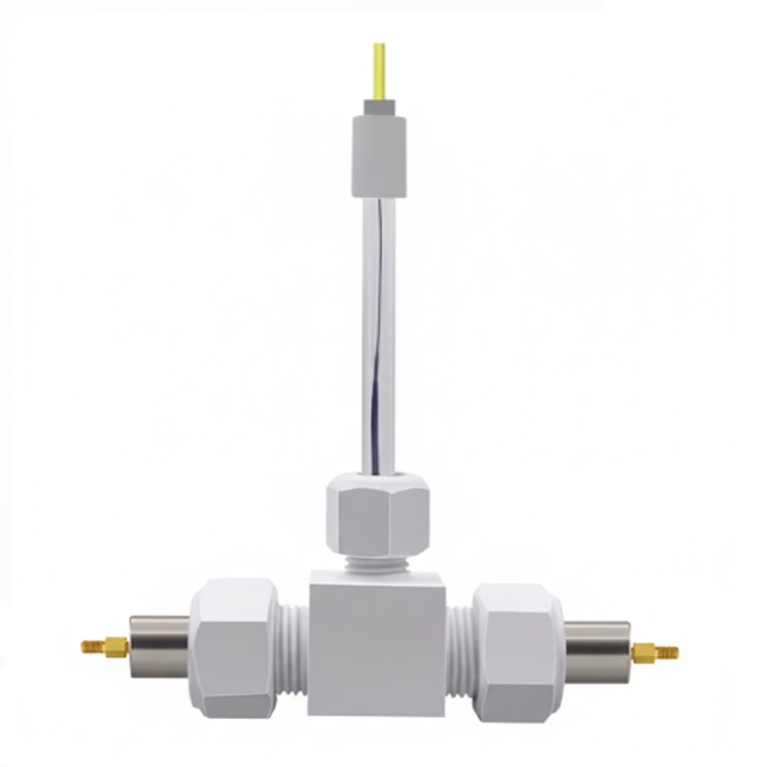

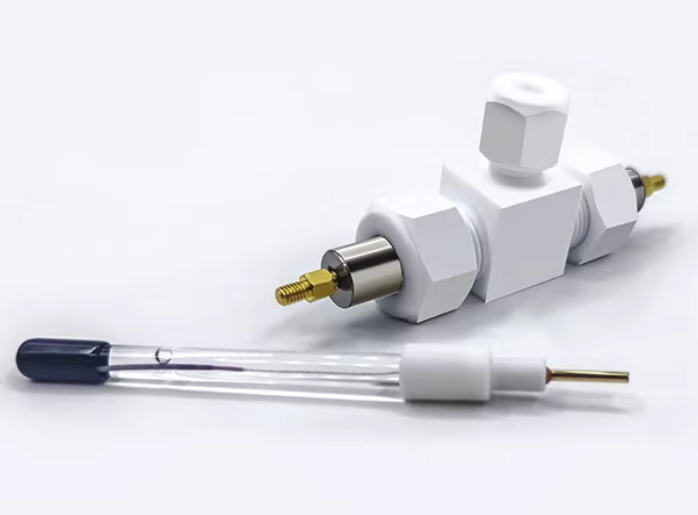

Three-Electrode Swagelok Cell (Φ= 12, 20 mm) with Ag/AgCl Reference Electrode for Electrochemistry Research, CE3ESCREAA
Use your own shipping account?
We support FedEx, UPS, and DHL third-party billing for institutional customers.
Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.
In electrochemistry research, a three-electrode Swagelok cell (often referred to as a "T-cell" due to its shape) is a foundational tool used to isolate and study the behavior of individual battery components.
Unlike a standard two-electrode cell which only measures the total cell voltage, a three-electrode setup introduces a Reference Electrode (RE). This allows researchers to "decouple" the working electrode (WE) from the counter electrode (CE), enabling independent measurement of anode and cathode potentials during operation.
| Part Number |
CE3ESCREAA (C-E-3ESCREAA) |

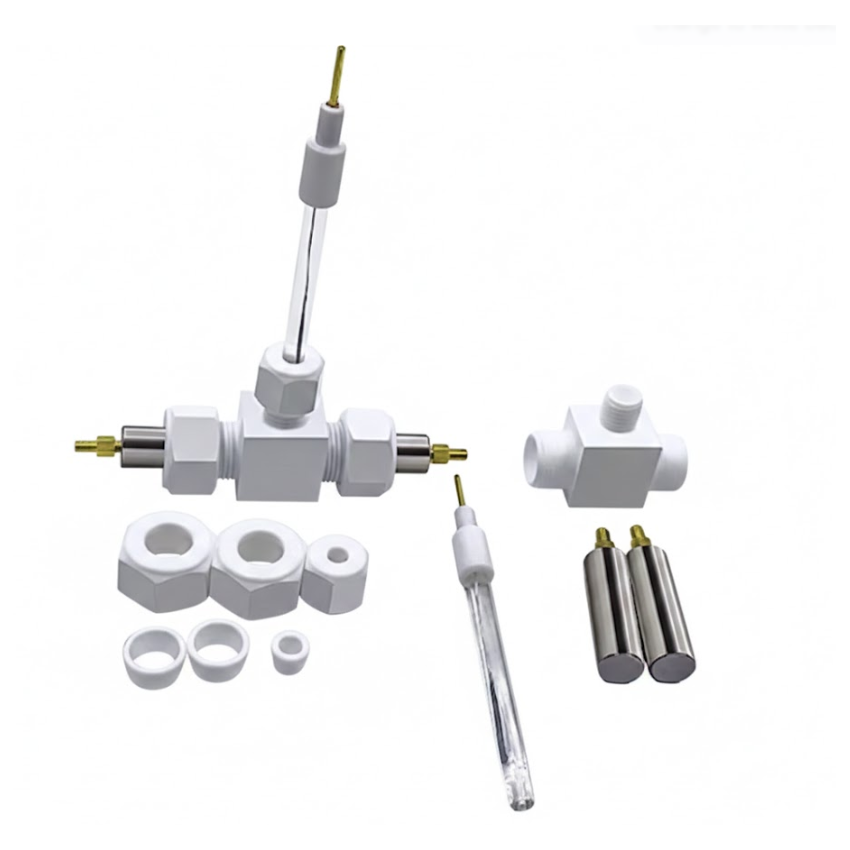

| Structure/Components |
Top/Bottom Metal Cap Parts: Pure Ti (suitable for most electrochemical electrolytes) and pure Mo for highly acidic/basic solution.
Sleeve: PTFE
|

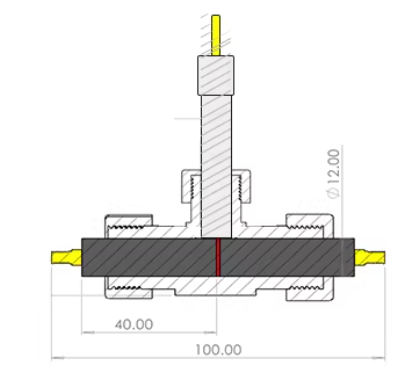

| Cell Sizes |
Standard I.D: 12 mm, 20 mm (Any other sizes, such as 10 mm, 14 mm, 16 mm, 18 mm are available upon request) |
| Max. Operation Temperature |
200 ºC under tightening pressure
|
| Customized Options |
(1) If customer needs other types of reference electrodes, such as Ag/Ag+, Ha/HgO, SCE, we can supply them upon request
|
| Note | The cell components should be thoroughly cleaned and dried after use. |
