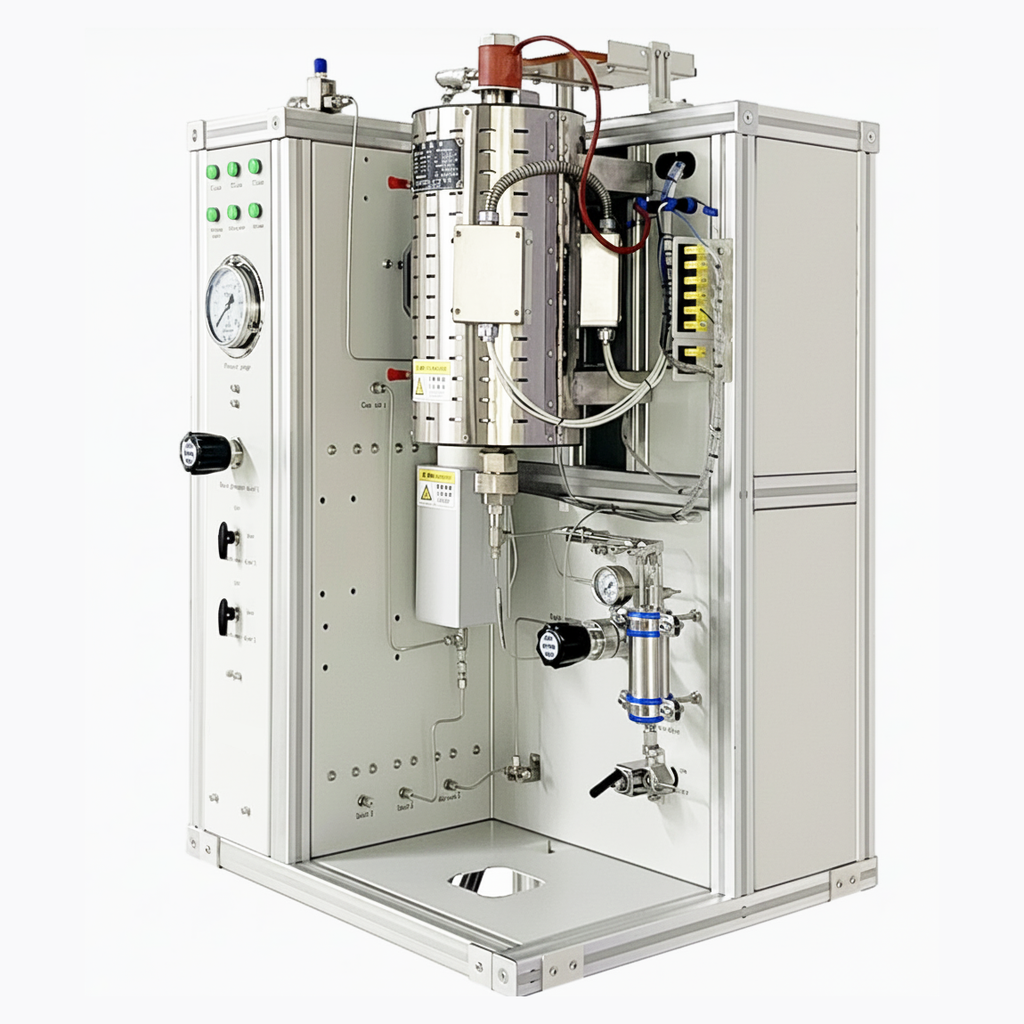

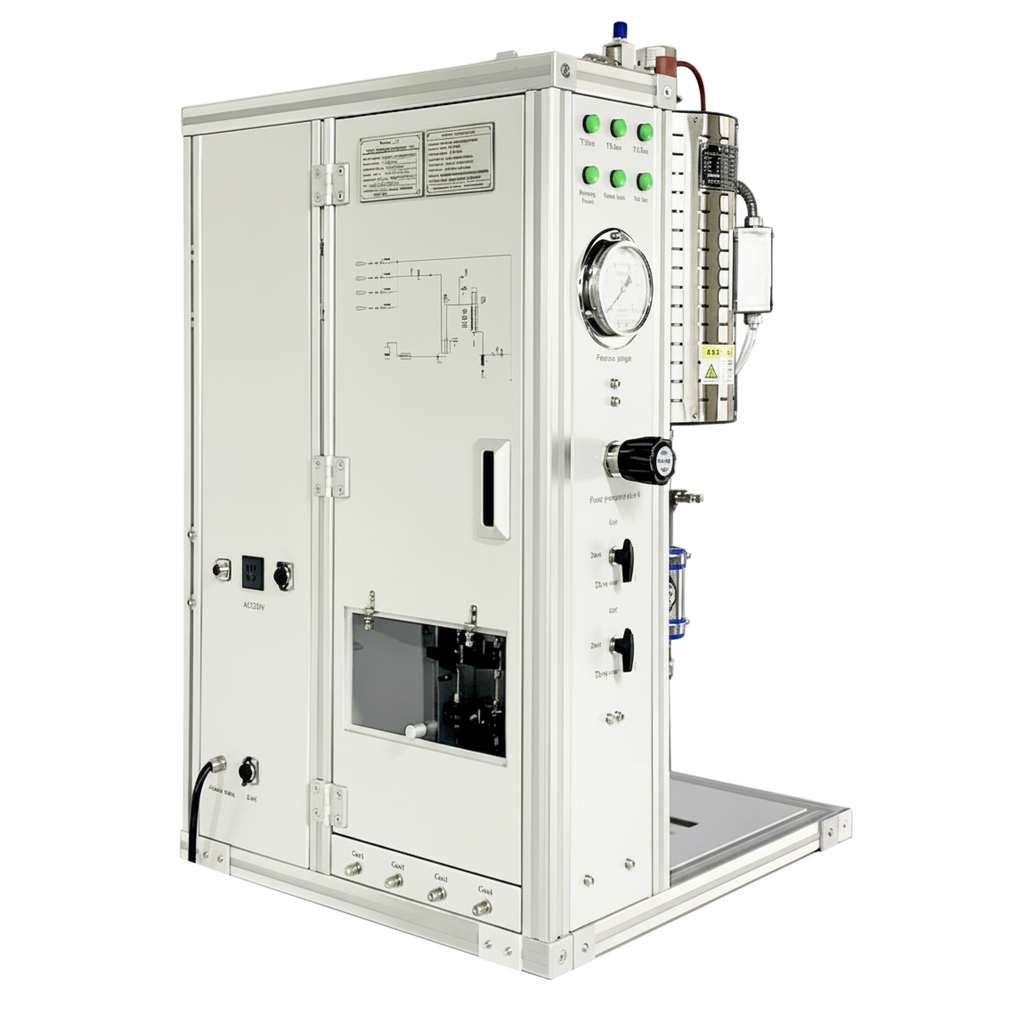

ECS-B Photothermal Fixed Bed Reactor (Max. 1050°C, 5.5 MPa) for Catalyst Evaluation, EBCEPTFBR

A Photothermal Fixed Bed Reactor designed for catalyst evaluation combines the continuous-flow hydrodynamics of a traditional fixed bed with the high-intensity optical delivery required to drive photo-driven or photon-assisted thermal reactions. By utilizing light to generate localized "hot spots" (via plasmonic or non-radiative decay) and simultaneously exciting charge carriers, researchers can decouple the reaction temperature from the bulk gas temperature, often lowering the apparent activation energy (Ea) of the reaction.

The physical design of the reactor head is the most complex component, as it must simultaneously handle high temperatures, maintain gas-tight pressure boundaries, and allow maximum photon transmission. (1) Optical Window: The reactor features a viewport made of High-Purity Fused Silica (Quartz) or Sapphire. The window must be thick enough to withstand operating pressures (often up to 3–5 MPa for high-pressure studies) while maintaining >90% transmittance in the UV-Vis-NIR spectrum. (2) Irradiation Geometry: Most designs utilize a top-down illumination approach. The gas flows vertically down through the catalyst bed, and the light is focused directly onto the top surface of the bed. (3) Catalyst Support: The catalyst is typically rested on a porous quartz frit or an inert metallic mesh (like Inconel or Monel, if unreactive to the specific chemistry). This ensures a uniform flow distribution while keeping the catalyst in the focal plane of the light source.

References:

Y. Chen, et al., Optimization of Photothermal Catalysis for Formaldehyde Oxidation Through Modulating Crystal Phase of MnO2, Catalysis Letters, 2024, 154, 1884–1892

E. V. Ramos-Fernandez, et al., Photothermal Catalysts, Light and Heat Management: From Materials Design to Performance Evaluation, Adv Energy Mater., 2025, 15, 2405272.
