ECS-JG High Precision Two-Probe Resistivity Tester for Battey Electrode Measurement, EJGBEHPTPRT

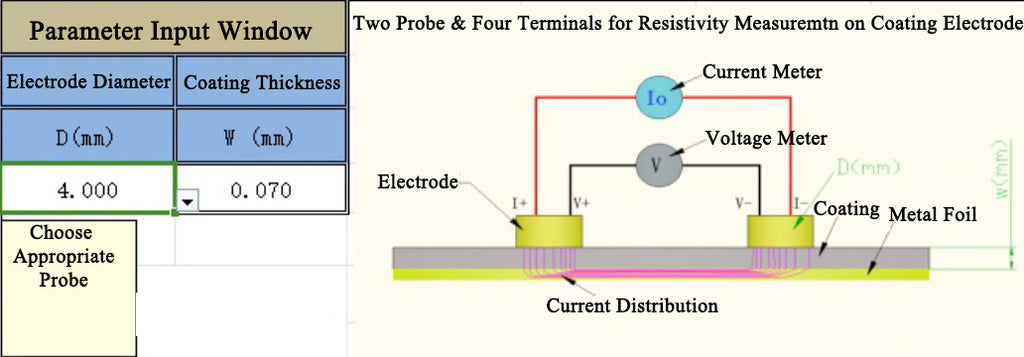

A High-Precision Two-Probe Battery Electrode Resistivity Tester is a specialized analytical tool engineered to evaluate the through-thickness electronic conductivity and interfacial contact resistance of lithium-ion, sodium-ion, and solid-state battery electrodes. While traditional 4-point probes measure in-plane surface sheet resistance, a high-precision 2-probe system squeezes the double-sided or single-sided electrode sheet between two planar conductive discs. This evaluates the true vertical conduction path that electrons follow during actual battery charge/discharge cycles.

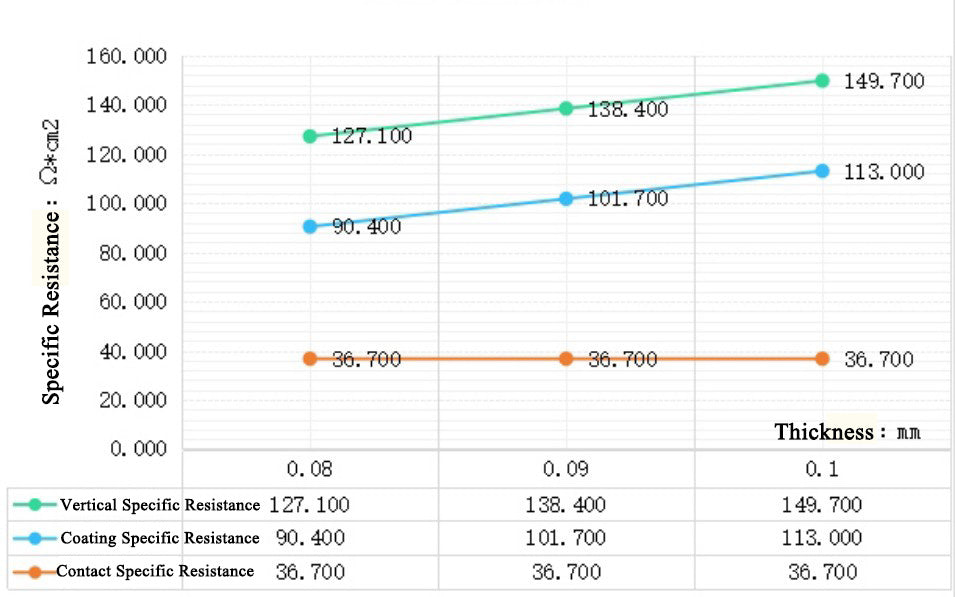

When assessing coated battery foils, standard 4-probe surface meters often produce misleading results. In a 4-probe test, the current takes the path of least resistance—short-circuiting laterally through the highly conductive metallic current collector (copper or aluminum foil) underneath the porous coating. The High-Precision 2-Probe Disc Method solves this by forcing electrons vertically through the composite matrix. This enables battery engineers to isolate: (1) Coating Bulk Resistivity: Measures electronic percolation across active material particles, conductive carbon black, and binder networks. (2) Interfacial Contact Resistance: Captures the quality of adhesion between the active coating slurry and the current collector foil (a major bottleneck in high-rate performance).

References

L. Frey, et al., Oriented Thiophene-Extended Benzotrithiophene Covalent Organic Framework Thin Films: Directional Electrical Conductivity, Adv. Funct., Mater., 2022, 32, 2205949.

Magatte N. Gueye, et al., Structure and Dopant Engineering in PEDOT Thin Films: Practical Tools for a Dramatic Conductivity Enhancement, Chem. Mater. (2016) 28 (10): 3462–3468.
