Name: ECS-SL Advanced Programmable Spin Coater with PTFE Chamber & Vacuum Chunk (Max. 150-350m, 10000 rpm), ESLAPSCPCVC
Brand: SYSL
SKU: ESLAPSCPCVCSI

ECS-SL Advanced Programmable Spin Coater with PTFE Chamber & Vacuum Chunk (Max. 150-350m, 10000 rpm), ESLAPSCPCVC

In Stock SKU: ESLAPSCPCVCSI

Use your own shipping account?

We support FedEx, UPS, and DHL third-party billing for institutional customers.

Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.

Review third-party shipping terms →

Add-Ons

Swipe

ECS-SL Economic Vacuum-Free Spin Coat...

$2,499.00

ECS-SL Economic Programmable Spin Coa...

$4,899.00

ECS-SL Programmable Spin Coater with ...

RFQ

A programmable spin coater with a vacuum chuck is the gold standard for thin-film fabrication in academic, R&D, and cleanroom environments. It allows you to deposit highly uniform polymer, photoresist, sol-gel, or perovskite layers on flat substrates (such as silicon wafers, glass slides, or plastic films). The two essential elements of this tool are precise multi-step programming (to control the fluid dynamics and solvent evaporation) and vacuum sample retention (to hold the substrate perfectly flat and secure at high speeds).

A standard programming sequence includes three distinct phases: (1) Dispense / Spread Phase (Low RPM): The substrate spins slowly (e.g., 100 to 500 RPM) while the liquid is dispensed. This spreads the fluid evenly across the surface without flinging it off. (2) Spin / Thinning Phase (High RPM): The motor accelerates rapidly to the target coating speed (e.g., 2,000 to 6,000 RPM). This high-speed stage drives the fluid outward via centrifugal force, establishing the baseline film thickness. (3) Drying Phase (Sustained RPM): The rotation is held constant while the solvent evaporates. Programmable ramp speeds (the acceleration/deceleration rates measured in RPM/sec) are critical here; ramp speeds that are too fast or too slow can introduce "edge beads" or radial ripples in the dry film.

Part Number	ESLAPSCPCVC (ESL-APSC-PCVC)
Power	AC110-220V±10% (24V adaptor), single phase, 50/60Hz, 80 W

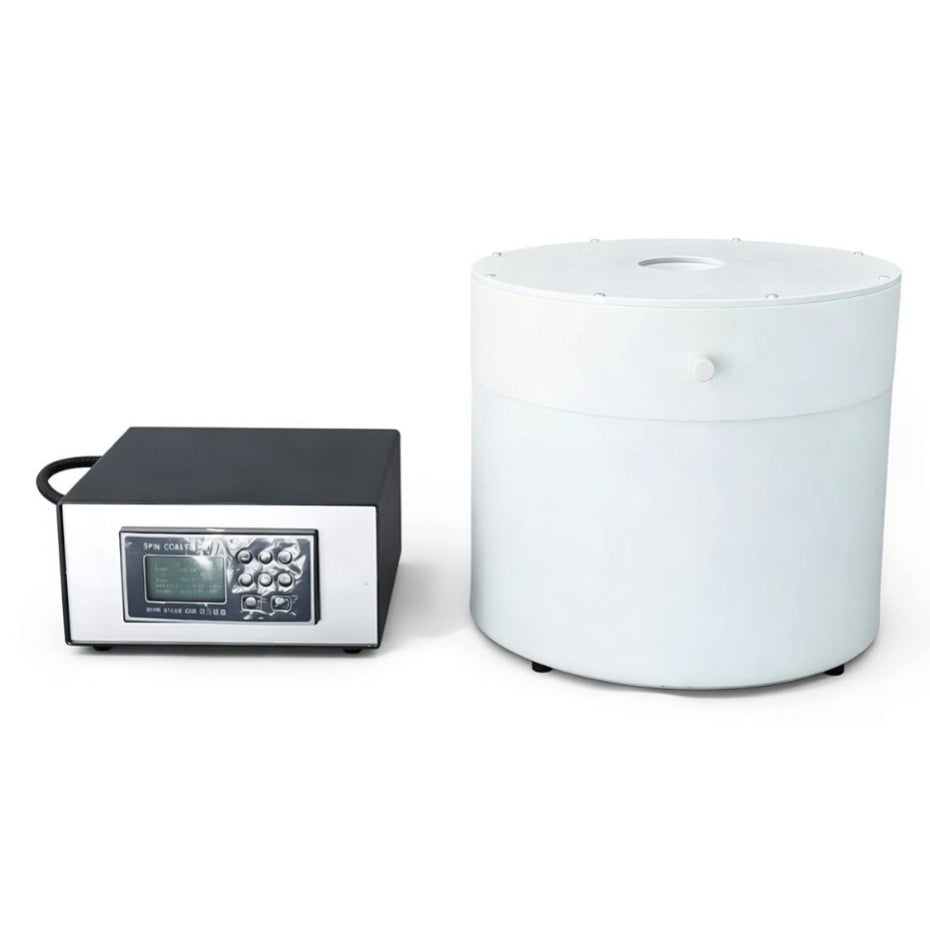

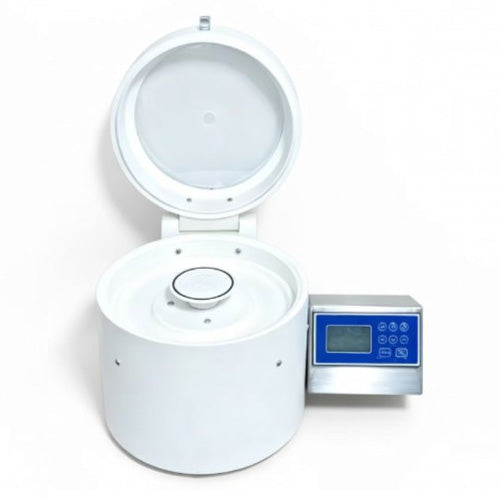

Coater Types	(1) Integration Type: the coater part and the controller part are integrated together for benchtop use (2) Split Type: the coater and the controller part are separated and connected with cables for glovebox operation
Chamber & Chuck Features	Chamber Materials: PTFE Vacuum Chunk Material: PTFE Small Chamber Version: ~290 mm (the acceptable round sample sizes are in Ø10-280 mm or square sample: 200200mm); Medium Chamber Version: ~390 mm (the acceptable round sample sizes are in Ø10-380 mm or square sample: 300300mm) Vacuum Chunk Size: Ø150 mm (standard version included). Other customized options in Ø10-300 mm can be supplied upon request. 4" 6" 3" 2" 1"
Rotation Speed & Time	400-10000 rpm, adjustable Rotation Stability: ± 0.1% (Servo motor, 450 W that can support 500 g sample rotated at 2000 rpm) Programmable 26 segments and each segment have 51 procedures for parameter setting. Acceleration speed can be set Setting Time: 1-9999 s
Automatic Solution Feeding (Optional)	The automatic solution feeding function is available upon request. The feeding solution amount each time is 1-10 mL.
Gas Blow Function (Optional)	The inert gases blow function from up and down sides are available upon request.
Vacuum Pump (Optional)	The oilless vacuum pump (ESOVP) can be considered for vacuum suction (-0.093 MPa). The vacuum sensor is available on the spin coater to avoid sample was thrown away when vacuum level is not enough.
Certification	CE certified UL and CSA certification is available upon request at extra cost One year warranty and lifetime technical support and service.
Dimension	W360 * D350 * H260 mm (Small Version) W460 * D450 * H360 mm (Medium Version)
Weight	~12 kg (Small Version) ~20 kg (Medium Version)
