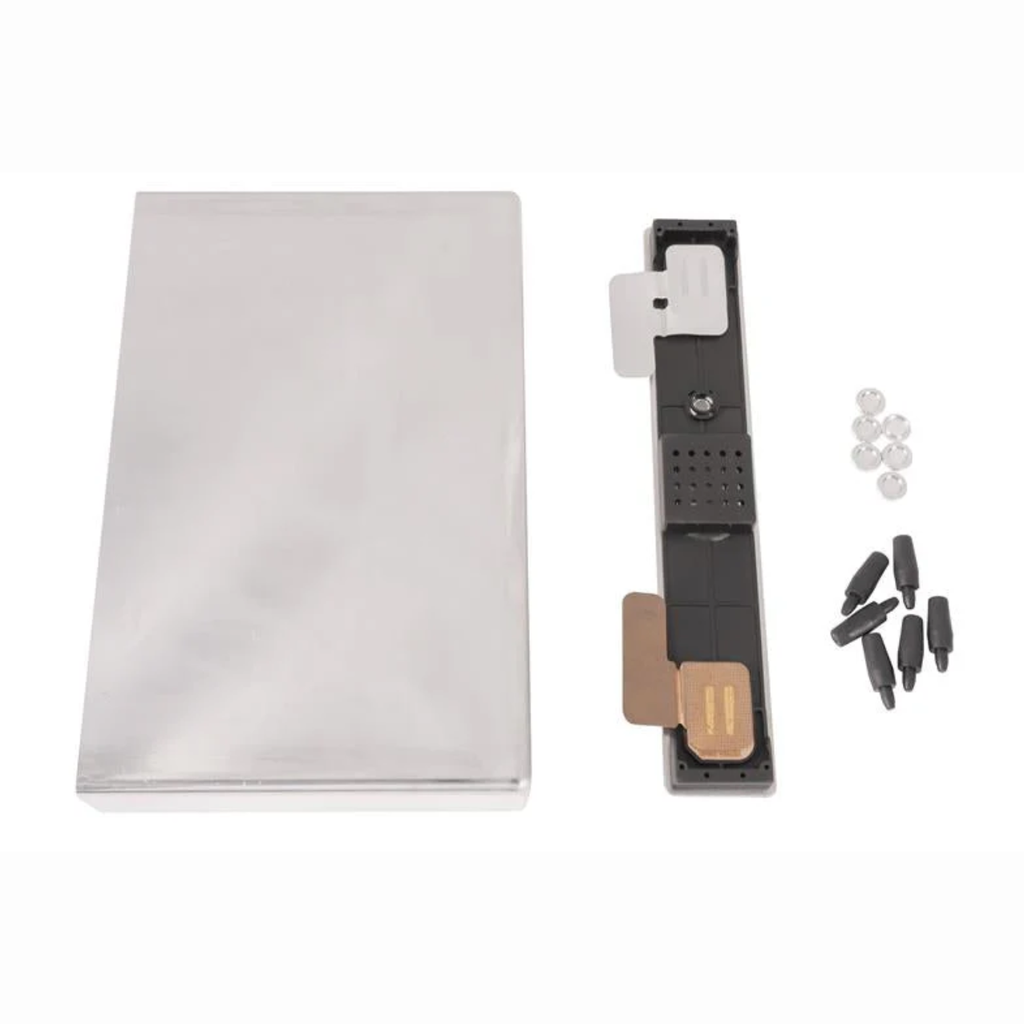

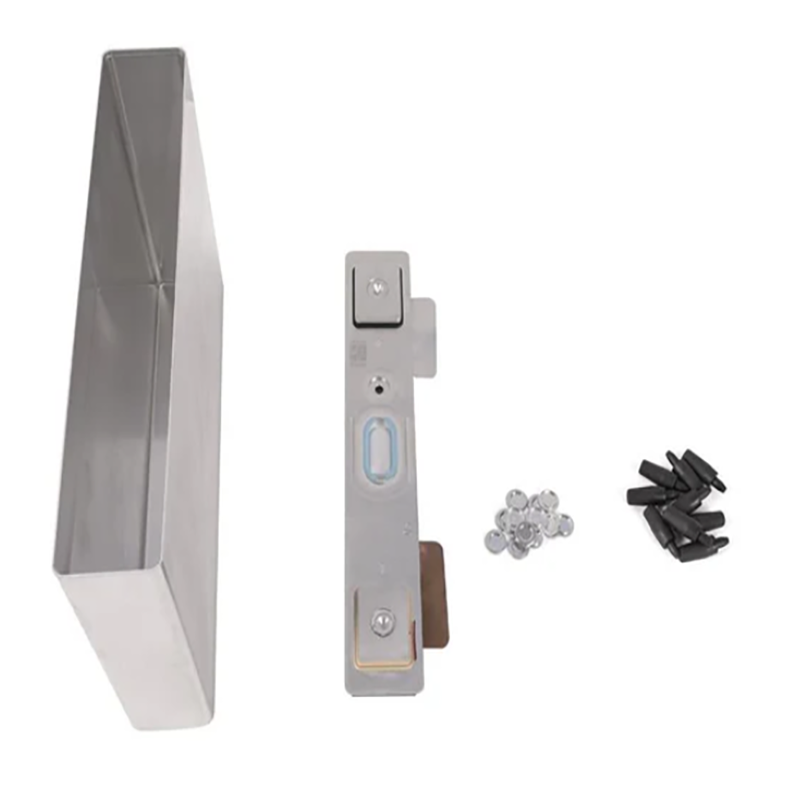

2614896 Aluminum Prismatic Cell Case, CAPCC2614896
Use your own shipping account?
We support FedEx, UPS, and DHL third-party billing for institutional customers.
Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.
Aluminum has the advantages of lightweight, good thermal management, excellent corrosion resistance, and high ductility & formability, which made it to be a promising prismatic cell material. The prismatic cell possesses the following features: (1) Superior space utilization (volumetric efficiency); (2) High capacity per cell, (3) Excellent durability & safety, (4) long cycle life.
| Part Number |
CAPCC2614896 (C-APCC-2614896) |
| Material |
Aluminum Can: Al3003-H14 Tab: Al for positive terminal and Ni/Cu for negative terminal Al plug for laser welding sealing, and rubber for temporary "sealing" after electrolyte filling. |
| Dimension |
Case Dimension (L 148 mm * W 26 mm * H 96 mm, Thickness 0.7 mm)
Anode Tab: 31mm x 10mm
Cathode Tab: 30mm x 10mm
Space between two tabs: 115 mm
Diameter of sealing plug: ~8 mm
|
| Package Grade |
1 pcs/pack
|
