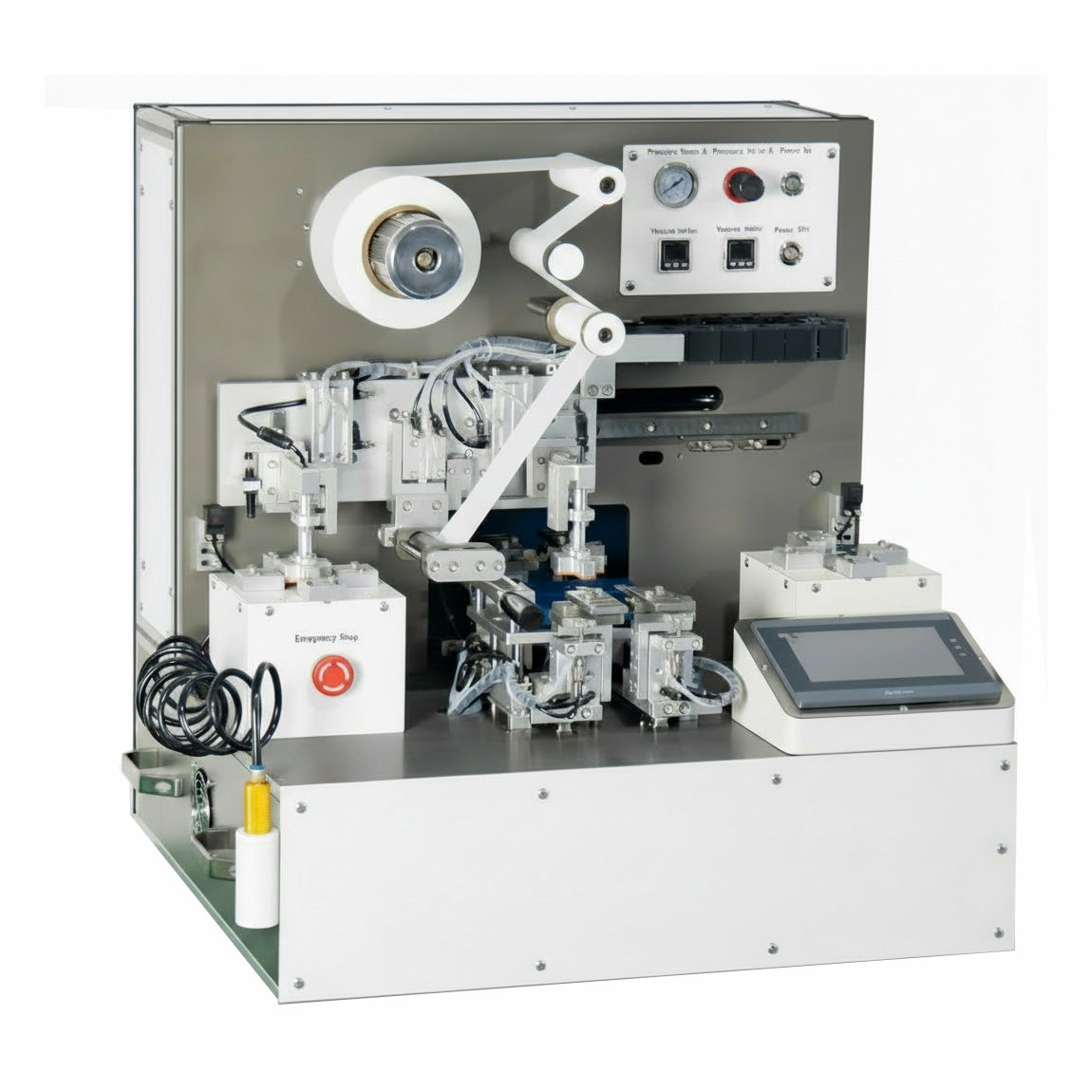

ECS-R Economic Benchtop Semi-Automatic Stacker (L100mm x W90mm) for Pouch Cells (Ar Glovebox Compatible), ERPCEBSAS
  • ECS-R Economic Benchtop Semi-Automatic Stacker (L100mm x W90mm) for Pouch Cells (Ar Glovebox Compatible), ERPCEBSAS
ECS-R Economic Benchtop Semi-Automatic Stacker (L100mm x W90mm) for Pouch Cells (Ar Glovebox Compatible), ERPCEBSAS

ECS-R Economic Benchtop Semi-Automatic Stacker (L100mm x W90mm) for Pouch Cells (Ar Glovebox Compatible), ERPCEBSAS

In Stock SKU: ERPCEBSAS
Use your own shipping account?

We support FedEx, UPS, and DHL third-party billing for institutional customers.

Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.

Review third-party shipping terms →

For pouch cell research, an semi-automatic stacking machine is the most critical tool for transitioning from single-layer prototypes to multi-layer high-energy cells. These machines automate the precise "Z-fold" layering of cathodes, anodes, and separators, ensuring the alignment and tension required for high-performance electrochemical testing. The separator is supplied as a continuous web from a tension-controlled roll, while pre-cut anode and cathode sheets are inserted into the folds from opposite sides. This creates a compact, interconnected stack that is superior to simple manual layering.

Part Number
  • ERPCEBSAS (ER-PC-EBSAS)
Power
  • AC110 or 220V±10%, single phase, 50/60Hz, 400 W
Acceptable Electrode Sizes
  • L: 40-100 mm, W 40-90 mm (tab is not countered). Normally a max tab length is 15 mm
  • Any customized electrodes are supposed to disclose the electrode/tab size and layout.


Stacking Features
  • Stacking Mode: Regular Z-fold



  • Max. stacking layers: 100
  • Max. stacking cell thickness: 15 mm
  • Stacking alignment accuracy: ±0.3 mm
  • Stacking Speed: 4-6 s/layer for regular electrode (6-8s/layer for lithium metal)
  • A vacuum pump is built-in for sucking electrodes
Loading Separator Roll
  • Cardboard core size: 3"
  • Max. Roll diameter: 200 mm
Safety Feature (Optional)
  • An acrylic frame cover & door can be customized to improve operation safety.
Gas Pressure Source (Optional)
  • When the stacker is placed inside a dryroom or regular room, a gas compressor (EUQOFGC) is required to supply a 60-80 psi for pneumatic operation



  • The KF40 feedthrough was included for glovebox operation (sensitive electrodes or solid-state electrolyte). In this case, an Ar gas tank with second-stage regulator is supposed to be placed outside through the feedthrough for provide pneumatic gas pressure.
Certificate
  • CE certificate
  • UL and CSA certificate are available upon request with additional charge
Dimension
  • L780 * W650 * H770 mm
Weight
  • ~122 kg



References:

J. Kurfer, et al., Production of large-area lithium-ion cells – Preconditioning, cell stacking and quality assurance, CIRP Annals, 2012, 61, 1-4

B. Evanko, et al., Stackable bipolar pouch cells with corrosion-resistant current collectors enable high-power aqueous electrochemical energy storage, Energy Environ. Sci., 2018,11, 2865-2875.
