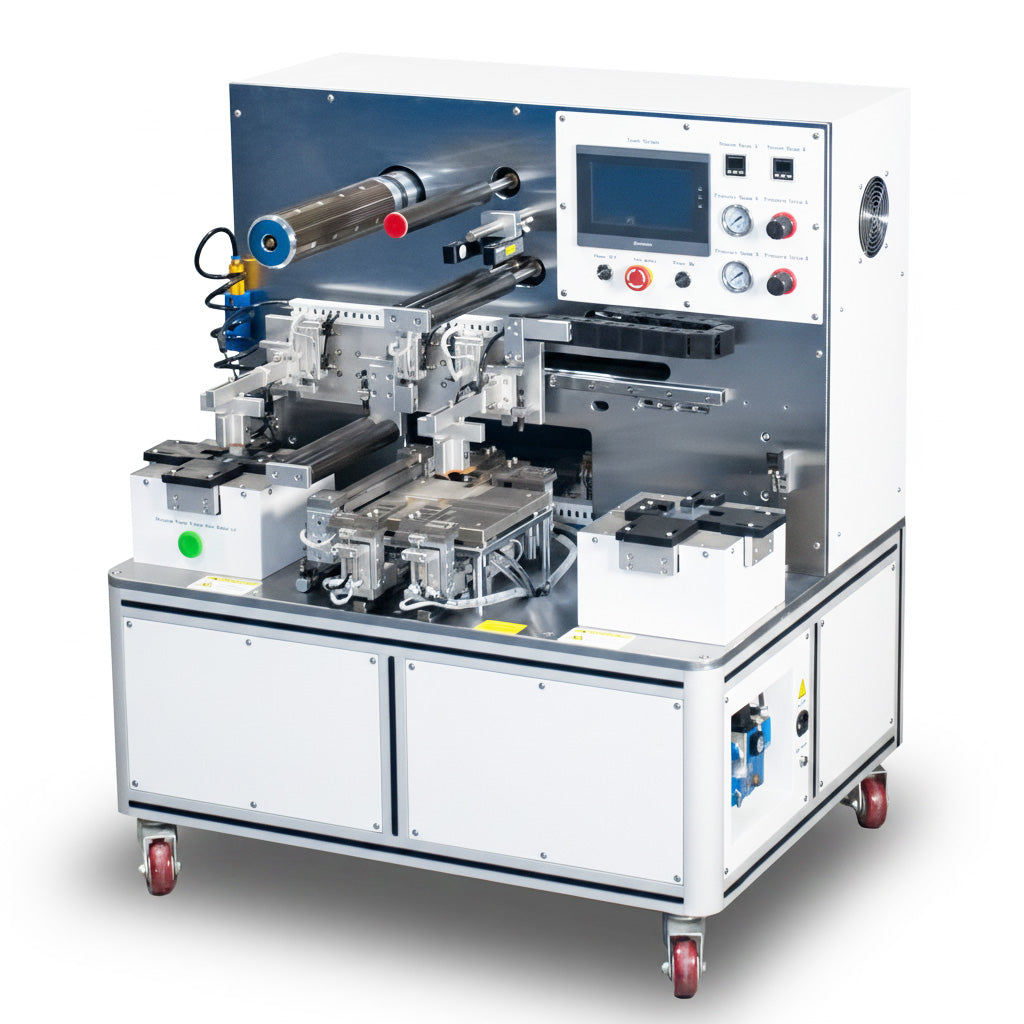

Name: ECS-R Large Semi-Automatic Stacker (L190mm x W140mm) with Separator Alignment for Pouch Cells, ERPCLSASSA
Brand: RSC
SKU: ERPCLSASSA

ECS-R Large Semi-Automatic Stacker (L190mm x W140mm) with Separator Alignment for Pouch Cells, ERPCLSASSA

In Stock SKU: ERPCLSASSA

Use your own shipping account?

We support FedEx, UPS, and DHL third-party billing for institutional customers.

Place your order first, then email shipping@echemsupplies.com with your account details and order number. We'll generate the label using your account and refund your shipping charges, less a handling fee.

Review third-party shipping terms →

For pouch cell research, an automatic stacking machine is the most critical tool for transitioning from single-layer prototypes to multi-layer high-energy cells. These machines automate the precise "Z-fold" layering of cathodes, anodes, and separators, ensuring the alignment and tension required for high-performance electrochemical testing. The separator is supplied as a continuous web from a tension-controlled roll, while pre-cut anode and cathode sheets are inserted into the folds from opposite sides. This creates a compact, interconnected stack that is superior to simple manual layering.

Part Number	ERPCLSASSA (ER-PC-LSASSA)
Power	AC110 or 220V±10%, single phase, 50/60Hz, 600 W
Acceptable Electrode Sizes	L: 40-190 mm, W 40-190 mm (tab is countered). Normally a max tab length is 15 mm Any customized electrodes are supposed to disclose the electrode/tab size and layout. For customized electrode sizes, a corresponding stacking die set is required.
Stacking Features	Stacking Mode: Regular Z-fold Max. stacking layers: 500 (adjustable) Max. stacking cell thickness: 30 mm Separator Alignment Accuracy: ±0.3 mm Stacking cell alignment accuracy: ±0.5 mm Stacking Speed: 4-6 s/layer for regular electrode (6-8s/layer for lithium metal) A vacuum pump is built-in for sucking electrodes
Loading Separator Roll	Cardboard core size: 3" Max. Roll diameter: 250 mm
Safety Feature (Optional)	An acrylic frame cover & door can be customized to improve operation safety.
Gas Pressure Source (Optional)	When the stacker is placed inside a dryroom or regular room, a gas compressor (EUQOFGC) is required to supply a 60-80 psi for pneumatic operation The KF40 feedthrough was included for glovebox operation (sensitive electrodes or solid-state electrolyte). In this case, an Ar gas tank with second-stage regulator is supposed to be placed outside through the feedthrough for provide pneumatic gas pressure.
Certificate	CE certificate UL and CSA certificate are available upon request with additional charge
Dimension	L950 * W750 * H1050 mm
Weight	~282 kg
