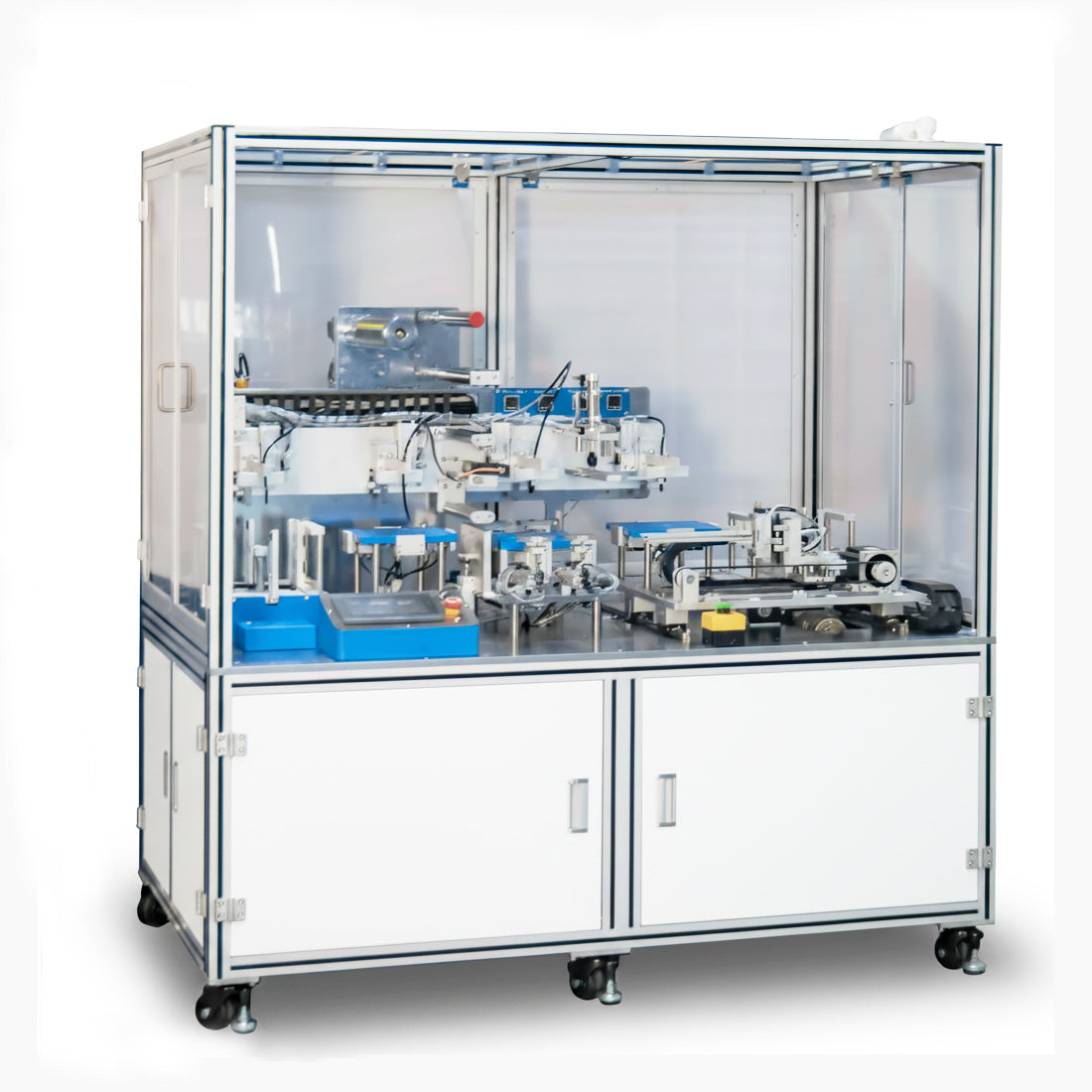

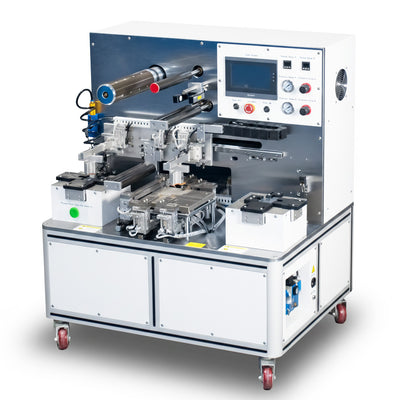

For pouch cell research, an automatic stacking machine is the most critical tool for transitioning from single-layer prototypes to multi-layer high-energy cells. These machines automate the precise "Z-fold" layering of cathodes, anodes, and separators, ensuring the alignment and tension required for high-performance electrochemical testing. The separator is supplied as a continuous web from a tension-controlled roll, while pre-cut anode and cathode sheets are inserted into the folds from opposite sides. This creates a compact, interconnected stack that is superior to simple manual layering.
| Part Number |
|
| Power |
- AC110 or 220V±10%, single phase, 50/60Hz, 3000 W
|
| Main Features |
- Mechanical arm for automatic electrode pick-up
- Automatic separator release with alignment and constant tension control
- Automatic stacking
- Automatic separator cutting after stacking
- Mechanical arm to take the stacked cell out
- Manual taping
|
| Acceptable Electrode Sizes |
- L: 40-190 mm, W 40-150 mm (tab is not countered). Normally a max tab length is 15 mm
- Any customized electrodes are supposed to disclose the electrode/tab size and layout.
- For customized electrode sizes, a corresponding stacking die set is required.
|
| Stacking Features |
- Stacking Mode: Regular Z-fold
- Max. stacking layers: 500 (adjustable)
- Max. stacking cell thickness: 30 mm
- Separator Alignment Accuracy: ±0.3 mm
- Stacking cell alignment accuracy: ±0.5 mm
- Stacking Speed: 4-6 s/layer for regular electrode (6-8s/layer for lithium metal)
- A vacuum pump is built-in for sucking electrodes
|
| Loading Separator Roll |
- Cardboard core size: 3"
- Max. Roll diameter: 250 mm
|
| Safety Feature |
- An acrylic frame cover & door can be customized to improve operation safety.
|
| Gas Pressure Source (Optional) |
- When the stacker is placed inside a dryroom or regular room, a gas compressor (EUQOFGC) is required to supply a 60-80 psi for pneumatic operation
- The KF40 feedthrough was included for glovebox operation (sensitive electrodes or solid-state electrolyte). In this case, an Ar gas tank with second-stage regulator is supposed to be placed outside through the feedthrough for provide pneumatic gas pressure.
|
| Certificate |
- CE certificate
- UL and CSA certificate are available upon request with additional charge
|
| Dimension |
|
| Weight |
|
References:
J. Kurfer, et al., Production of large-area lithium-ion cells – Preconditioning, cell stacking and quality assurance, CIRP Annals, 2012, 61, 1-4
B. Evanko, et al., Stackable bipolar pouch cells with corrosion-resistant current collectors enable high-power aqueous electrochemical energy storage, Energy Environ. Sci., 2018,11, 2865-2875.
